Entry-level hydraulic drop-bar CUES, nine LINKGLIDE gears

The CUES U4030 1x9 drop-bar groupset is the affordable way to a hydraulic-disc drop-bar bike: ST-U4030 DUAL CONTROL LEVERS matched to BR-U6030 flat-mount calipers, the RD-U3020 rear derailleur and an 11-36T LINKGLIDE cassette. Add the square-taper FC-U4000-1 crank or the drop-bar FC-U6030-1 if your bike needs one.

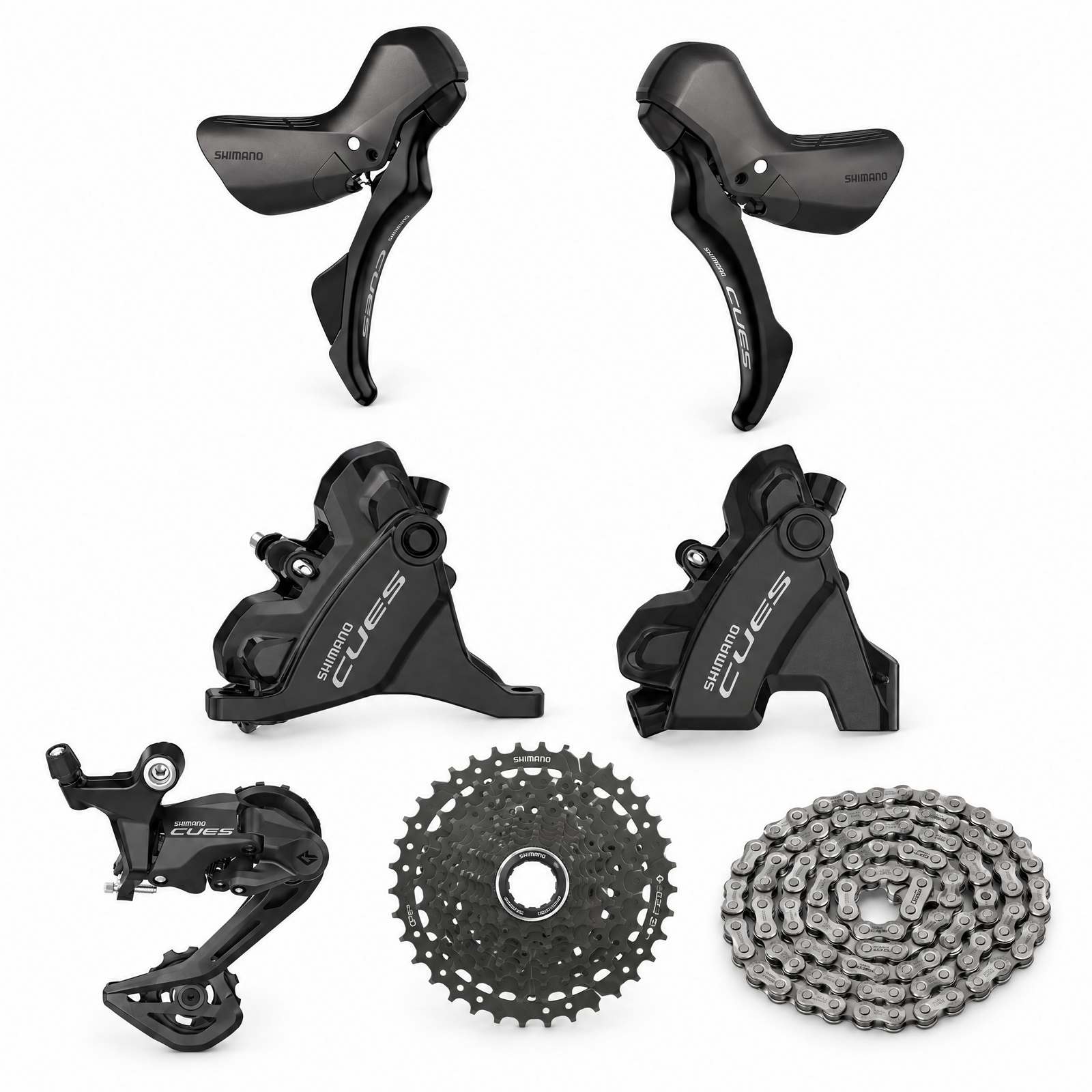

Kit includes

  • ST-U4030-R right shift/brake lever, 9-speed, hydraulic (hose kit included)
  • BL-U4030-L left brake lever, hydraulic (hose kit included)
  • BR-U6030 flat-mount hydraulic calipers, front and rear
  • RD-U3020 rear derailleur, SGS cage
  • CS-LG400-9 LINKGLIDE cassette 11-36T (the ratio RD-U3020 is designed for)
  • CN-LG500 LINKGLIDE chain

Options

  • FC-U4000-1 crankset (30 to 42T, 170 or 175 mm) or FC-U6030-1 crankset (40T/170 mm or 42T/172.5 mm)
  • BB-UN300 square-taper bottom bracket for the FC-U4000, or BB-MT501 for the FC-U6030
  • RT-CL700 Center Lock rotors (choose size)

The crank, bottom bracket and rotors are optional extras that start at 0, so e-bikes and bikes keeping their own parts are not charged for them. Every other part can be deselected if you already have it. Levers come with their hydraulic hoses and need a mineral-oil bleed after fitting; Tune Cycles can do that for you. Levers fit 23.8 to 24.2 mm drop bars.

Tune Cycles supplies and fits Shimano CUES across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • ST-U4030-R right hydraulic DUAL CONTROL LEVER, 9-speed, hydraulic hose included (bleed after fitting)
  • BL-U4030-L left hydraulic brake lever, hose included
  • BR-U6030 flat-mount hydraulic disc calipers, front and rear
  • RD-U3020-SGS rear derailleur, made for a 36T low sprocket with 41T total capacity
  • CS-LG400-9 LINKGLIDE 9-speed cassette, 11-36T, on a standard HG freehub body
  • CN-LG500 LINKGLIDE chain, 138 links, with quick link
  • Optional extras that start at 0: FC-U4000-1 square-taper crankset in 170 or 175 mm with a 30, 32, 40 or 42T ring, or FC-U6030-1 (40T / 170 mm or 42T / 172.5 mm); BB-UN300 square-taper bottom bracket, 68 x 123 mm for the FC-U4000 or BB-MT501 threaded bottom bracket, 68/73 mm, for HOLLOWTECH II cranks for the FC-U6030; RT-CL700 Center Lock rotors in 140, 160, 180 or 203 mm, up to two
  • LINKGLIDE cassette and chain: shift cleanly under load and outlast a conventional drivetrain, which suits e-bikes and hard-working commuters
  • Editable kit: deselect any part you already have and add only the extras your bike needs; the price follows the parts you keep
Brand Shimano
Series Shimano CUES U4030 (LINKGLIDE)
Drivetrain 1x9-speed
Handlebar Drop bar, 23.8-24.2 mm lever clamp
Brakes Hydraulic disc; BR-U6030 flat-mount calipers included (levers supplied with hoses, bleed after fitting)
Right lever ST-U4030-R, 9-speed, hydraulic
Left lever BL-U4030-L, brake only, hydraulic
Rear derailleur RD-U3020-SGS, 36T low sprocket, 41T capacity
Cassette CS-LG400-9, 11-36T LINKGLIDE
Chain CN-LG500, 138 links, quick link
Crankset (optional) FC-U4000-1 170 / 175 mm, 30 / 32 / 40 / 42T (square taper); or FC-U6030-1 40T/170 mm, 42T/172.5 mm
Bottom bracket (optional) BB-UN300 68 x 123 mm (FC-U4000) or BB-MT501 68/73 mm (FC-U6030)
Rotors (optional) RT-CL700 Center Lock, 140 / 160 / 180 / 203 mm
Freehub Shimano HG spline
SKU SHM-U4030-1x9-DROP-GROUP
Brand Shimano
