Shimano CUES U3000 2x10-Speed Drop-Bar Groupset (Mechanical Disc)
SKU code: SHM-U3000-2x10-DROP-GROUP
In Stock
Customise Your Purchase
Core Components
ST-U3030 SHIFT-BRAKE LEVER CUES RIGHT for 10-SPEED
$148.90
Shimano CUES ST-U3030-L dual control lever left 2x
$147.27
FD-U6030 FRONT DERAILLEUR CUES 2x9/10 BRAZE-ON 46-
$47.73
RD-U6020 REAR DERAILLEUR CUES 10-SPEED SHADOW LONG
$65.46
Shimano CUES CS-LG400 10-speed cassette 11-39T Lin
$69.54
Shimano LinkGlide CN-LG500 Chain - 9/10/11-Speed,
$41.60
Optional Parts
FC-U6000 FRONT CRANKSET CUES 170mm 46-30 10 / 9-Sp
$64.10
FC-U6000 FRONT CRANKSET CUES 175mm 46-30 10 / 9-Sp
$95.46
Shimano Deore BB-MT501 Hollowtech II Threaded Bott
$34.66
Shimano BR-RS305 FRONT DISC BRAKE CABLE TYPE FLAT-
$85.91
Shimano BR-RS305 REAR DISC BRAKE CABLE TYPE FLAT-M
$81.83
Shimano RT-CL700 Ice Technologies Center Lock Disc
$53.18
Twenty LINKGLIDE gears for the drop-bar all-rounder
The CUES U3000 2x10 drop-bar groupset combines the 10-speed ST-U3030 DUAL CONTROL LEVERS with a 46-30T compact double, the 2x-capable RD-U6020 rear derailleur and an 11-39T LINKGLIDE cassette: close steps for the road, a low gear for loaded climbs, and the durability LINKGLIDE is built for.

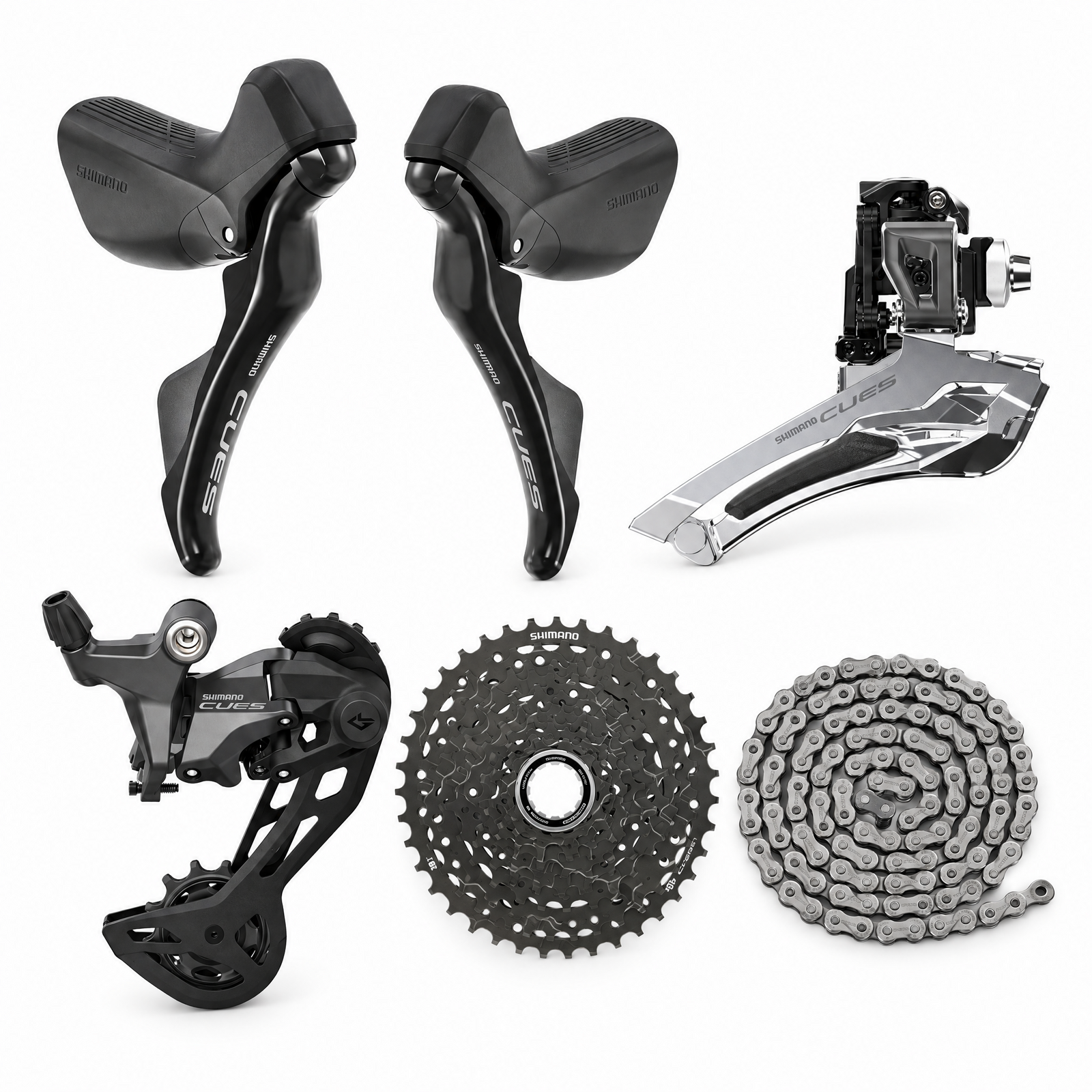

Kit includes
- ST-U3030-10R right shift/brake lever (10-speed, mechanical disc)
- ST-U3030-L left shift/brake lever (2x, mechanical disc)
- FD-U6030 front derailleur, braze-on, for 46-50T outer rings
- RD-U6020 10-speed rear derailleur, SGS cage (for cassettes up to 39T)
- CS-LG400-10 LINKGLIDE 10-speed cassette, 11-39T
- CN-LG500 LINKGLIDE chain, 138 links
Options
- FC-U6000-2 HOLLOWTECH II crankset 46-30T, choose 170 or 175 mm (optional: add it unless your bike is an e-bike or keeps its crank)
- BR-RS305 flat-mount mechanical disc calipers, front and rear
- RT-CL700 Center Lock rotors (choose size)
- BB-MT501 threaded 68 mm bottom bracket
The crank, bottom bracket, brakes and rotors are optional extras that start at 0, so e-bikes and bikes keeping their own parts are not charged for them. Every other part can be deselected if you already have it. The front derailleur is braze-on: frames without a tab need a clamp adapter. Levers take NEW SUPER SLR road calipers and 23.8 to 24.2 mm drop bars.
Tune Cycles supplies and fits Shimano CUES across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.
Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.
- ST-U3030-10R right and ST-U3030-L left DUAL CONTROL LEVERS: 2x10-speed shifting with cable-actuated disc braking for drop bars
- FD-U6030 braze-on front derailleur for 46-50T outer chainrings (frames without a tab need a clamp adapter)
- RD-U6020-SGS 10-speed rear derailleur, made for a 39T low sprocket with 44T total capacity — the 46-30T crank and 11-39T cassette use it exactly
- CS-LG400-10 LINKGLIDE 10-speed cassette, 11-39T, on a standard HG freehub body
- CN-LG500 LINKGLIDE chain, 138 links, with quick link
- Optional extras that start at 0: FC-U6000-2 HOLLOWTECH II crankset 46-30T in 170 or 175 mm; BR-RS305 flat-mount cable-actuated disc calipers, front and rear; RT-CL700 Center Lock rotors in 140, 160, 180 or 203 mm, up to two; BB-MT501 threaded bottom bracket, 68/73 mm, for HOLLOWTECH II cranks
- LINKGLIDE cassette and chain: shift cleanly under load and outlast a conventional drivetrain, which suits e-bikes and hard-working commuters
- Editable kit: deselect any part you already have and add only the extras your bike needs; the price follows the parts you keep
| Brand | Shimano |
| Series | Shimano CUES U3000 / U6000 (LINKGLIDE) |
| Drivetrain | 2x10-speed |
| Handlebar | Drop bar, 23.8-24.2 mm lever clamp |
| Brakes | Cable-actuated disc levers (NEW SUPER SLR); BR-RS305 flat-mount calipers optional |
| Levers | ST-U3030-10R right (10-speed), ST-U3030-L left (2x) |
| Front derailleur | FD-U6030, braze-on, 46-50T outer ring |
| Rear derailleur | RD-U6020-SGS 10-speed, 39T low sprocket, 44T capacity |
| Cassette | CS-LG400-10, 11-39T LINKGLIDE |
| Chain | CN-LG500, 138 links, quick link |
| Crankset (optional) | FC-U6000-2, 46-30T, 170 or 175 mm, HOLLOWTECH II |
| Bottom bracket (optional) | BB-MT501, 68/73 mm threaded |
| Brakes (optional) | BR-RS305 flat mount, front and rear |
| Rotors (optional) | RT-CL700 Center Lock, 140 / 160 / 180 / 203 mm |
| Freehub | Shimano HG spline |
| SKU | SHM-U3000-2x10-DROP-GROUP |
