Shimano's simplest drop-bar groupset, built for everyday bikes

ESSA U2000 is Shimano's 8-speed entry range: a single chainring, a wide 11-45T cassette and DUAL CONTROL LEVERS with cable-actuated disc brakes. It suits commuters, fitness bikes and budget gravel builds where a robust, easy-to-service drivetrain matters more than gear count. The RD-U2000 is made for a 45T low sprocket, and the 11-45 cassette uses exactly its 34T capacity, so this is the cassette offered.

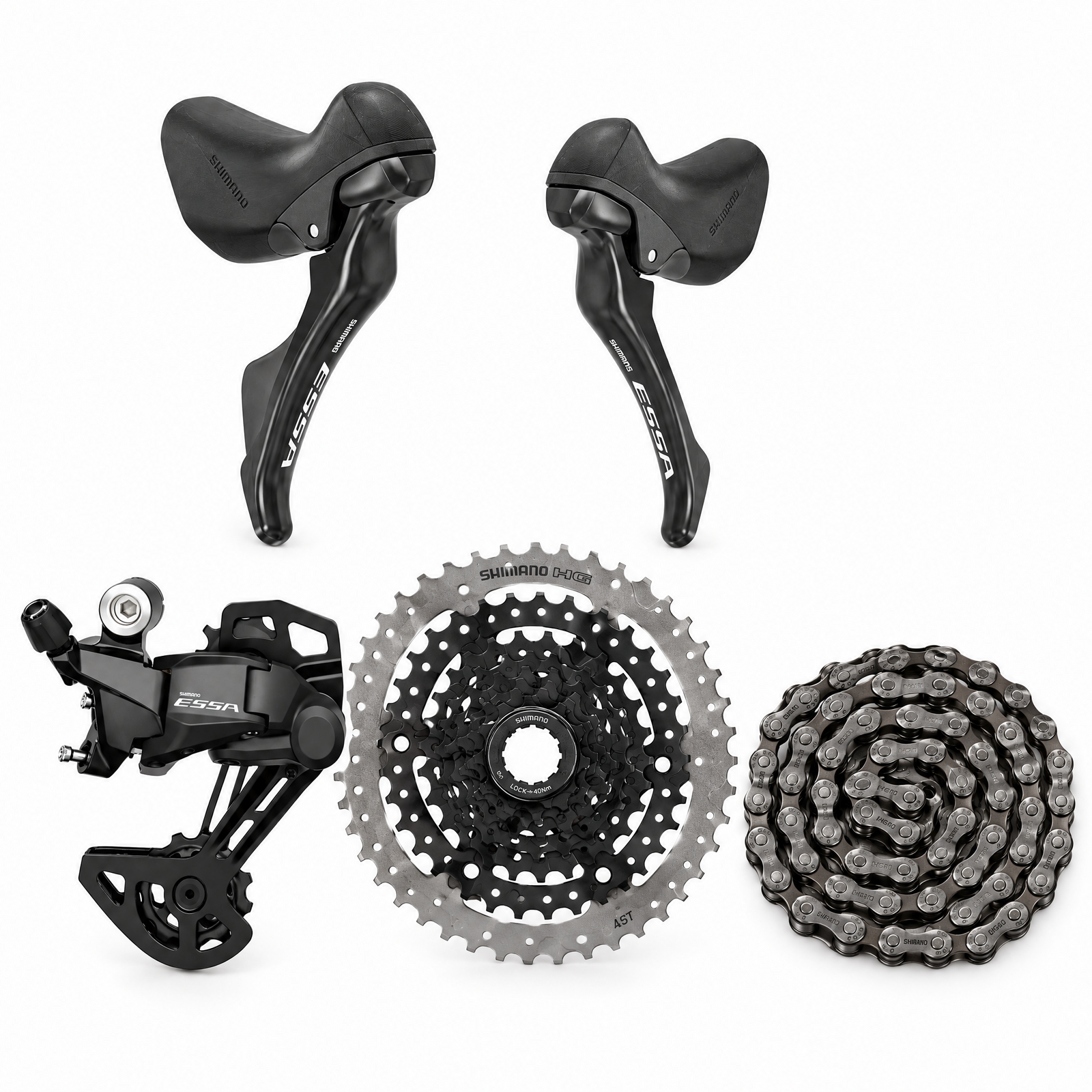

Kit includes

  • ST-U2030-R right shift/brake lever (8-speed, mechanical disc)
  • BL-U2030-L left brake lever (mechanical disc)
  • RD-U2000 rear derailleur, GS cage, 45T
  • CS-HG300-8 cassette, 11-45T (HG spline)
  • Shimano CN-HG40 8-speed chain, 116 links, with connecting pin

Options

  • FC-U2000 crankset 170 mm, 32T; or choose the FC-U2001-1 40T with chain guard (optional: add it unless your bike is an e-bike or keeps its crank)
  • BR-RS305 flat-mount mechanical disc calipers, front and rear
  • RT-CL700 Center Lock rotors (choose size)
  • BB-UN300 square-taper bottom bracket, 68 x 123 mm (confirm axle length for your crank)

The crank, bottom bracket, brakes and rotors are optional extras that start at 0, so e-bikes and bikes keeping their own parts are not charged for them. Every other part can be deselected if you already have it. Levers take NEW SUPER SLR road calipers and 23.8 to 24.2 mm drop bars. ESSA is an 8-speed Hyperglide system: use an 8-speed chain, not a LINKGLIDE one.

Tune Cycles supplies and fits Shimano ESSA and CUES across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • ST-U2030-R right DUAL CONTROL LEVER: 8-speed rear shifting and cable-actuated disc braking for drop bars
  • BL-U2030-L left brake lever, cable-actuated disc
  • RD-U2000-GS rear derailleur, made for a 45T low sprocket with 34T total capacity — the 11-45T cassette uses it exactly
  • CS-HG300-8 HYPERGLIDE 8-speed cassette, 11-45T, on a standard HG freehub body
  • CN-HG40 8-speed chain, 116 links, with connecting pin
  • Optional extras that start at 0: FC-U2000 square-taper crankset 170 mm 32T, or the FC-U2001-1 170 mm 40T with chain guard; BR-RS305 flat-mount cable-actuated disc calipers, front and rear; RT-CL700 Center Lock rotors in 140, 160, 180 or 203 mm, up to two; BB-UN300 square-taper bottom bracket, 68 x 123 mm
  • HYPERGLIDE 8-speed cassette and chain: simple, robust and cheap to service — use an 8-speed chain, not a LINKGLIDE one
  • Editable kit: deselect any part you already have and add only the extras your bike needs; the price follows the parts you keep
Brand Shimano
Series Shimano ESSA U2000
Drivetrain 1x8-speed
Handlebar Drop bar, 23.8-24.2 mm lever clamp
Brakes Cable-actuated disc levers (NEW SUPER SLR); BR-RS305 flat-mount calipers optional
Right lever ST-U2030-R, 8-speed
Left lever BL-U2030-L, brake only
Rear derailleur RD-U2000-GS, 45T low sprocket, 34T capacity
Cassette CS-HG300-8, 11-45T HYPERGLIDE
Chain CN-HG40, 116 links, 6/7/8-speed
Crankset (optional) FC-U2000 170 mm 32T, or FC-U2001-1 170 mm 40T with chain guard, square taper
Bottom bracket (optional) BB-UN300, 68 x 123 mm square taper (confirm axle length for your crank)
Brakes (optional) BR-RS305 flat mount, front and rear
Rotors (optional) RT-CL700 Center Lock, 140 / 160 / 180 / 203 mm
Freehub Shimano HG spline
SKU SHM-U2000-1x8-DROP-GROUP
Brand Shimano
