SRAM Rival XPLR AXS E1 1x13 Disc Brake Groupset
For bikes with up to 700x45c or 27.5x2.1” tyre widths
SKU code: SRM-GS-RIV-1W-AXS-D1
Customise Your Purchase
SRAM Rival E1 AXS Shift-Brake, Left Shift / Rear B
$440.00
SRAM Rival E1 AXS Shift-Brake, Right Shift / Front
$440.00
SRAM Rival XPLR AXS E1 Rear Derailleur, 1x 13-Spee
$560.00
SRAM Rival XPLR AXS E1 1x Wide Crankset
$230.00
SRAM Rival XPLR XG-1351 E1 Cassette, 13-Speed, 10-
$335.00
SRAM Rival E1 Flattop Chain, 12/13-Speed, 126 Link
$75.00
SRAM AXS Battery
$101.00
SRAM AXS Battery Charger, USB-C, Single Battery, C
$84.00
SRAM Paceline Disc Brake Rotor 140mm, CenterLock,
$95.00
SRAM Centerline Disc Brake Rotor 160mm, CenterLock
$81.00
Rival XPLR AXS E1 (2025) is SRAM's 13-speed wireless gravel groupset at the Rival price point: a 10-46 cassette, Wide chainline crank and a Full Mount rear derailleur for UDH frames. It replaces Rival XPLR 1x12 D1.

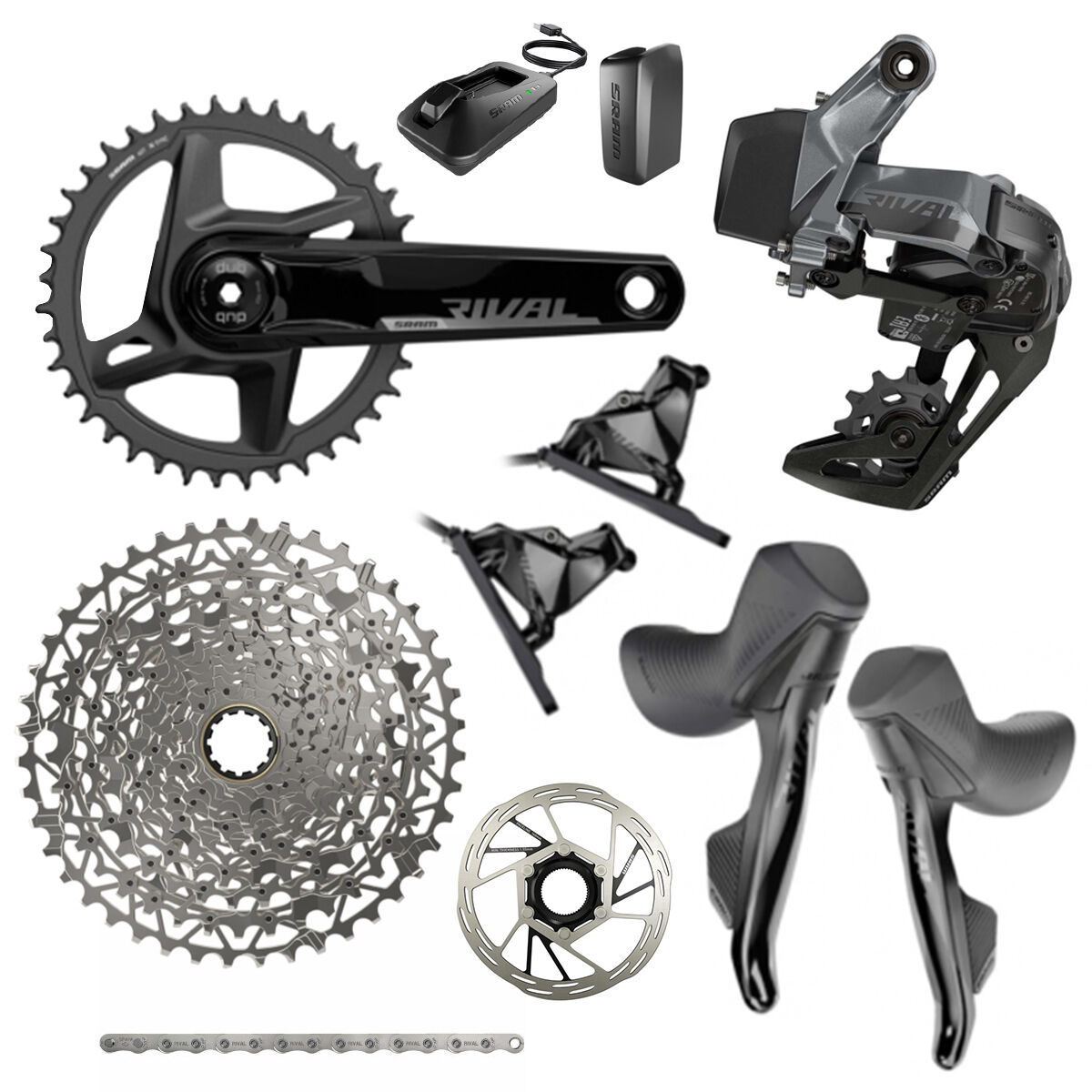

Kit includes
- SRAM Rival AXS E1 shift-brake levers: right lever on the front brake (950 mm hose), left lever on the rear brake (1800 mm hose), with hydraulic flat-mount calipers; rotors sold separately (right lever, front brake, left lever, rear brake)
- SRAM Rival XPLR AXS E1 rear derailleur, 13-speed, max 46T (UDH frame required)
- SRAM Rival XPLR E1 1x Wide crankset (DUB, direct mount 42T): 160 to 175 mm; bottom bracket not included
- SRAM Rival XPLR XG-1351 13-speed cassette, 10-46
- SRAM Rival E1 Flattop chain (12/13-speed), 126 links
- SRAM AXS battery
- SRAM AXS USB-C battery charger (no cord)
Optional parts
Every part in the kit can be deselected under Customise Your Purchase, so you only pay for what you need when upgrading a bike that already has some of it.
Fitted at our Marrickville workshop in Sydney: book a fitting with Tune Cycles.
Warranty
SRAM components carry SRAM's limited warranty against defects in materials and workmanship (two years from purchase). Bring any warranty concern back to Tune Cycles: we assess the part and lodge the claim with SRAM's Australian distributor. Wear parts (chain, cassette, rotors, pads) are not covered for normal wear. Your rights under the Australian Consumer Law are not affected.
Key features
- 13-speed SRAM XPLR AXS wireless shifting
- 10-46 cassette with closer steps than 1x12
- Wide chainline for gravel tyre clearance
- Full Mount rear derailleur for UDH frames
- Hydraulic disc brakes, right lever front
- Parts you already own can be left out
| Specification | Details |
|---|---|
| Series | SRAM Rival XPLR AXS E1 |
| Drivetrain | 1x13, wireless AXS |
| Brakes | Hydraulic disc, flat mount; right lever front |
| Crankset | Rival XPLR E1 1x Wide, DUB, 42T, 160–175 mm |
| Cassette | XG-1351, 10-46 (XDR driver) |
| Rear derailleur | Rival XPLR AXS E1, 13-speed, max 46T, UDH |
| Chain | Rival E1 Flattop 12/13-speed, 126 links |
| Batteries | 1 × AXS battery, USB-C charger |
| Frame | UDH required |
| Not included | Bottom bracket, rotors (optional) |
| SKU | SRM-GS-RIV-1W-AXS-D1 |
| Model # | GS-RIV-1W-AXS-D1 |
| Barcode # | |
| Brand | SRAM |
| Shipping Weight | 3.5000kg |
| Shipping Width | 0.350m |
| Shipping Height | 0.200m |
| Shipping Length | 0.450m |
