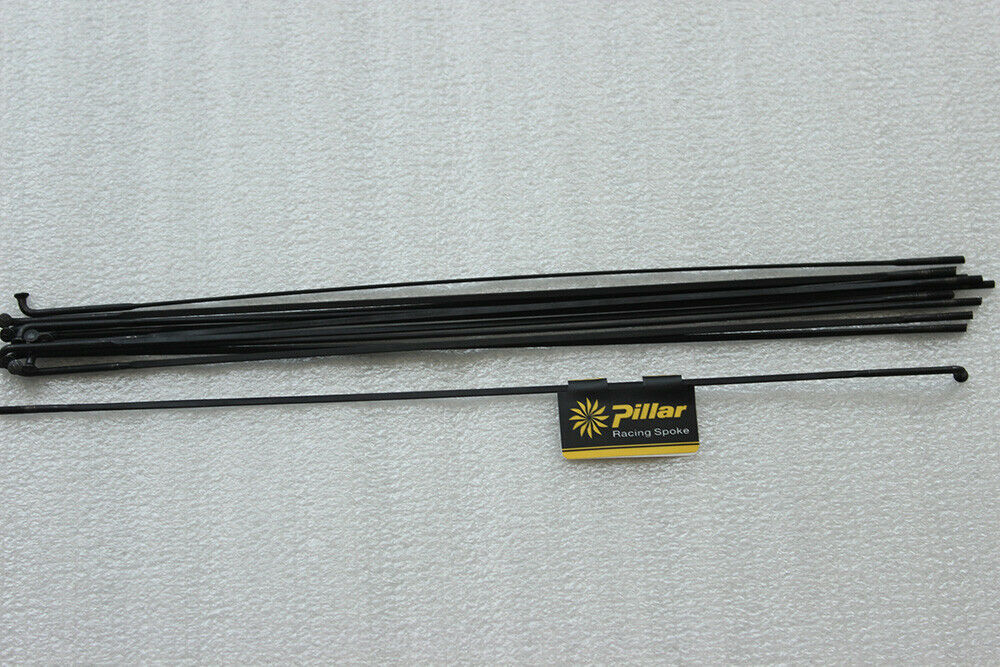

Pillar Wing 21 J-Bend Bladed Aero Spokes – Black – 300mm, Pack of 20
SKU code: DTW-PRG-SJPW21K300Q20
Pillar’s Wing 21 is a bladed aero J-bend spoke — round 2.2mm at the elbow and thread, flattened to a 2.1mm-wide, 1.3mm-thin blade through the body for lower drag than a round-section spoke, aimed at road and gravel wheels.
Highlights
- Bladed aero profile: 2.2mm round ends, 2.1mm-wide blade, 1.3mm at its thinnest
- J-bend head for standard hub flanges
- Stainless steel, black finish
- 95° elbow bend, 9.0mm thread length
- Supplied without nipples
- Packed in bags of 4 or 20
Why bladed
Flattening the mid-section into a blade cuts the spoke’s frontal area without reducing its cross-sectional strength — the same principle as an aero road frame tube. Pillar keeps the elbow and thread round and full-gauge so the head and threaded joint aren’t weakened by the aero shaping.
Compatibility & fit
Spoke length is specific to the hub, rim and lacing pattern of the wheel it’s built into — there’s no generic right answer. The Tune Cycles workshop calculates the correct length for your build and laces the wheel in-house; because these spokes are supplied without nipples, pair them with nipples sized to this spoke’s gauge. A spoke cut or ordered to the wrong length can’t be corrected afterwards.
Options
| Pack size | Lengths available |
|---|---|
| Pack of 4 | 236mm, 238mm, 240mm, 242mm, 244mm, 246mm, 248mm, 250mm, 252mm, 254mm, 256mm, 258mm, 260mm, 262mm, 264mm, 266mm, 268mm, 270mm, 272mm, 274mm, 276mm, 278mm, 280mm, 282mm, 284mm, 286mm, 288mm, 290mm, 292mm, 294mm, 296mm, 298mm, 300mm |
| Pack of 20 | 236mm, 238mm, 240mm, 242mm, 244mm, 246mm, 248mm, 250mm, 252mm, 254mm, 256mm, 258mm, 260mm, 262mm, 264mm, 266mm, 268mm, 270mm, 272mm, 274mm, 276mm, 278mm, 280mm, 282mm, 284mm, 286mm, 288mm, 290mm, 292mm, 294mm, 296mm, 298mm, 300mm |
Pillar backs its spokes, nipples and tools against manufacturing defects in materials and workmanship; it doesn’t cover damage from an incorrect spoke length, over-tensioning, crash damage or normal wear. For warranty support, return the product to Tune Cycles and we’ll manage the claim with Pillar’s Australian distributor.
This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
- Bladed aero profile: 2.2mm round ends, 2.1mm-wide blade, 1.3mm at its thinnest
- J-bend head for standard hub flanges
- Stainless steel, black finish
- 95° elbow bend, 9.0mm thread length
- Supplied without nipples
- Packed in bags of 4 or 20
| Brand | Pillar |
|---|---|
| Model | Wing 21 |
| Profile | Bladed Aero |
| Head type | J-Bend |
| Diameter profile | 2.2mm round at elbow and thread, flattened to a 2.1mm-wide blade through the middle (1.3mm at its thinnest) |
| Gauge | bladed aero (Wing 21) |
| Elbow angle | 95° |
| Material | Stainless steel |
| Colour | Black |
| Nipples included | No |
| Approx. weight | 4.7g per 260mm spoke (varies with length) |
| Available lengths | 236mm – 300mm |
| Pack sizes | Pack of 4, Pack of 20 |
| SKU | DTW-PRG-SJPW21K-PAR |
