Shimano BR-RS305 FRONT DISC BRAKE CABLE TYPE FLAT-MOUNT
EBRRS305F4RF
SKU code: SHM-EBRRS305F4RF

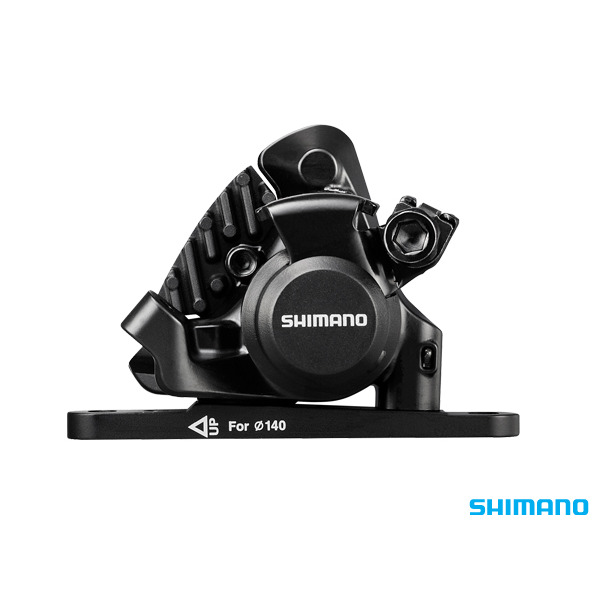

Shimano BR-RS305-F mechanical disc brake caliper, flat mount front
A cable-actuated disc brake for flat mount road and commuting frames, made to be easy to set up and easy to live with. Wide pad clearance and accessible adjusters mean less fiddling to get it running silently.
Highlights
- Mechanical (cable) disc brake caliper, front
- Shimano Flat Mount system with a low-profile shape
- ICE TECHNOLOGIES pad with cooling fin
- Wide pad clearance and easy tool access
- Flip-flop bracket supports both 140 mm and 160 mm rotors
- Black finish
Simple to set up and maintain
Cable brakes stay serviceable anywhere, and the RS305 makes the job easier still: one bracket covers both common rotor sizes by flipping it, and the adjusters sit where you can reach them with the wheel in.
Compatibility and fit
For road frames and forks with a flat mount front brake fitting, operated by standard road brake levers with cable pull. Takes a 140 mm or 160 mm rotor using the supplied flip-flop bracket. Rotor purchased separately. If you are unsure which rotor size your bike is set up for, ask us before you order.
Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.
- Easy to control and clean appearance with stable brake performance for ordinary riders
- Heat management system
- ICE TECHNOLOGY pad with fin
- Low profile disc caliper
- SHIMANO Flat mount system (available for IS mount with mount adapter)
- Easy set up and maintenance
- Wide pad clearance
- Easy tool access
- SHIMANO Easy Flip-Flop bracket system
- MODEL NO: BR-RS305-F
- SHIMANO Series
- Black Color
- SHIMANO logo remarks
- NEW SUPER SLR Compatibility
- L03A Resin Pad Option
- K03S Resin Pad Standard
- Mechanical disc brake type
- Anti loosen method Bolt fix pin/snap ring Caliper fixing bolt
- Tool size Caliper fixing bolt: 4mm
- Axle Pad mount
- Piston: 1
- Recommended disc brake rotor: SM-RT54/RT56 (160 mm), SM-RT70 (140 mm/160 mm)
| Type | Mechanical (cable) disc brake caliper |
|---|---|
| Mount type | Flat mount |
| Position | Front |
| Rotor sizes | 140 mm or 160 mm, via flip-flop bracket |
| Pads | ICE TECHNOLOGIES with cooling fin |
| Colour | Black |
| SKU | SHM-EBRRS305F4RF |
| Barcode # | 4524667401407 |
| Brand | Shimano |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001000000m3 |
| Unit Of Measure | each |
Must be installed and serviced by qualified bicycle mechanic
