Shimano GRX RX610 2x12-Speed Mechanical Gravel Groupset
SKU code: SHM-RX610-2-GROUP
In Stock
Customise Your Purchase
Core Components
ST-RX610 SHIFT-BRAKE LEVER R.H w/BR-RX400 FRONT DI
$258.37
ST-RX610 SHIFT-BRAKE LEVER L.H w/BR-RX400 REAR DIS
$258.37
FD-RX820 FRONT DERAILLEUR GRX 12-SPEED BRAZE-ON DO
$68.18
RD-RX820 REAR DERAILLEUR GRX SHADOW+ 12-SPEED 36T
$141.83
CS-R7100 CASSETTE 105 12-SPEED
$85.05
Shimano SLX CN-M7100 12-Speed Chain - 116 Links wi
$48.52
Shimano GRX FC-RX610-2 2x12-Speed Crankset 46-30T
$152.73
Optional Parts
Bottom Bracket Road 24mm Spindle
$36.40
Shimano RT-CL800 Ice Technologies Center Lock Disc
$69.54
Shimano RT-CL700 Ice Technologies Center Lock Disc
$53.18
Shimano SM-MA-R160-DD ADAPTER 160mm REAR CALIPER:
$20.80
Shimano BL-RX812 SUB BRAKE LEVER R.H GRX HYDRAULIC
$87.27
Shimano BL-RX812 SUB BRAKE LEVER L.H GRX HYDRAULIC
$87.27
Shimano's 12-speed gravel double, at the RX610 price
GRX RX610 brings the 12-speed GRX drivetrain to a mid-range price: ST-RX610 DUAL CONTROL levers with the grippy GRX hood shape, hydraulic flat-mount calipers, and the same RD-RX820 and FD-RX820 derailleurs as the top mechanical GRX. The 46-30T double with an 11-36T cassette gives a genuinely low climbing gear for loaded gravel and bikepacking. This kit is the complete groupset with the crank; leave out anything you already have.

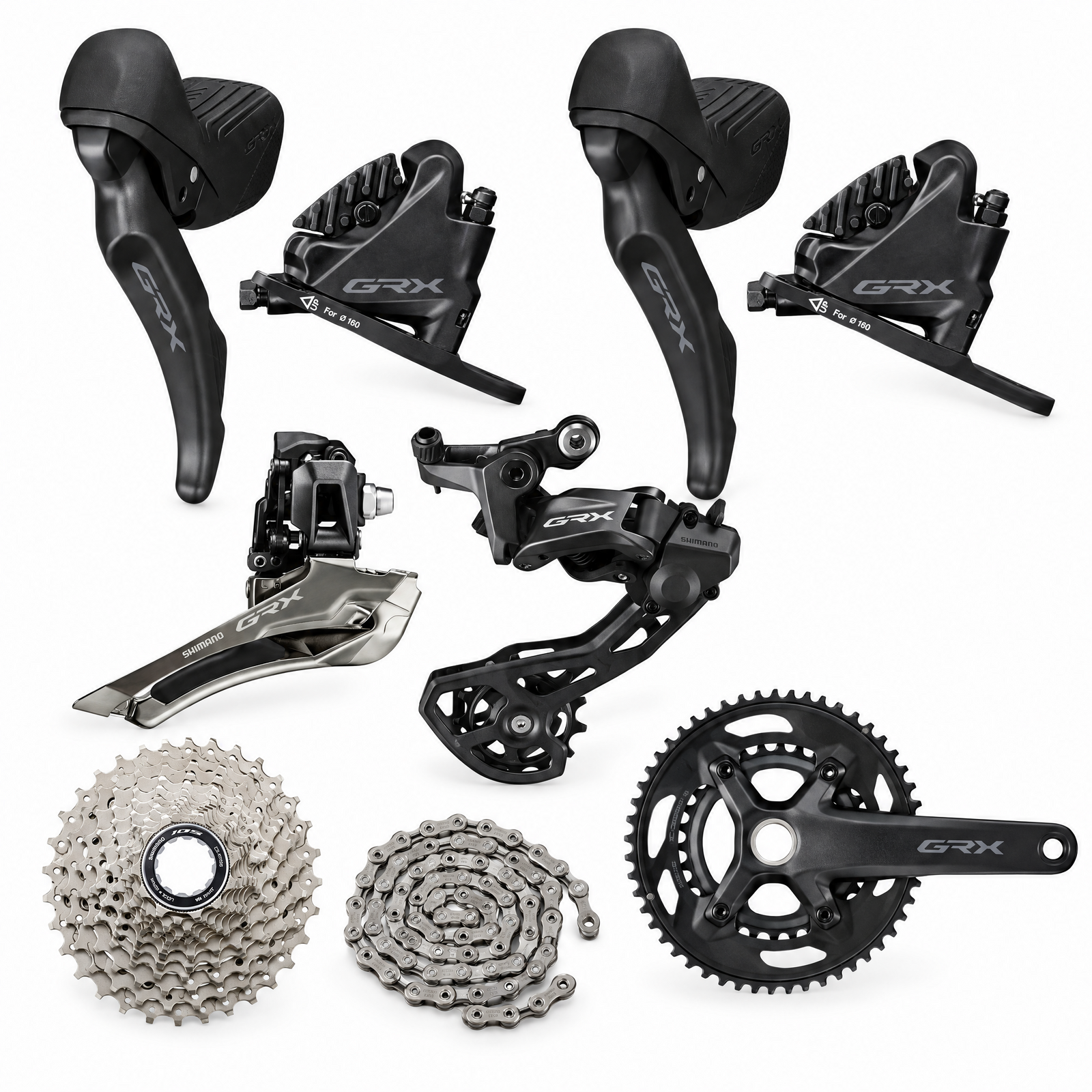

Kit includes
- ST-RX610 right shift/brake lever with BR-RX400 front hydraulic flat-mount caliper (J-kit, 1000 mm hose)
- ST-RX610 left shift/brake lever with BR-RX400 rear hydraulic flat-mount caliper (J-kit, 1700 mm hose)
- FD-RX820 front derailleur, braze-on
- RD-RX820 rear derailleur, SHADOW RD+, for double cranks (36T max)
- CS-R7100 12-speed cassette; choose 11-34T or 11-36T (HG freehub)
- CN-M7100 12-speed chain, 116 links, with QUICK-LINK
- FC-RX610-2 HOLLOWTECH II crankset (included), 46-30T, in 165, 170, 172.5 or 175 mm
Options
- Shimano road 24 mm bottom bracket for your shell
- RT-CL800 or RT-CL700 Center Lock rotors (choose size, up to two)
- SM-MA-R160-DD flat-mount adapter for a 160 mm rear rotor
- BL-RX812 sub brake levers for the bar tops
Every part can be deselected if you already have it. The RD-RX820 is the double-specific GRX derailleur: it takes an 11-34 or 11-36T cassette and needs the FD-RX820 up front. The 12-speed HG cassette fits a standard Shimano road freehub.
Tune Cycles supplies and fits Shimano GRX across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.
Shimano offers a limited warranty covering defects in materials and workmanship on every component in this kit. For warranty support, return the item to Tune Cycles.
- Shimano GRX RX610 12-speed mechanical shifting with the RX820 rear and front derailleurs
- ST-RX610 DUAL CONTROL levers with GRX ergonomic hoods and hydraulic flat-mount BR-RX400 calipers, supplied as bled J-kits
- RD-RX820 SHADOW RD+ clutch derailleur keeps the chain quiet on rough gravel
- Cassette choice: CS-R7100 11-34T or 11-36T on a standard Shimano HG road freehub
- Editable kit: bottom bracket, rotors, adapter and sub levers are optional, and any part can be deselected
- FC-RX610-2 46-30T crankset included, in 165, 170, 172.5 and 175 mm
| Brand | Shimano |
| Series | GRX RX610 / RX820 |
| Drivetrain | 2x12-speed, mechanical |
| Levers | ST-RX610 right (12-speed) and left (2-speed), hydraulic |
| Brakes | BR-RX400 hydraulic flat-mount calipers, front 1000 mm / rear 1700 mm hoses |
| Front Derailleur | FD-RX820, braze-on |
| Rear Derailleur | RD-RX820, SHADOW RD+, 36T max low sprocket |
| Cassette | CS-R7100 12-speed, 11-34T or 11-36T, HG freehub |
| Chain | CN-M7100 12-speed, 116 links, QUICK-LINK |
| Crankset | FC-RX610-2 HOLLOWTECH II 46-30T, 165 / 170 / 172.5 / 175 mm |
| Bottom Bracket (optional) | Shimano road 24 mm spindle, to suit shell |
| Rotors (optional) | RT-CL800 / RT-CL700 Center Lock, up to two |
| Kit Type | Editable kit — every part can be deselected |
| SKU | SHM-RX610-2-GROUP |
| Brand | Shimano |
