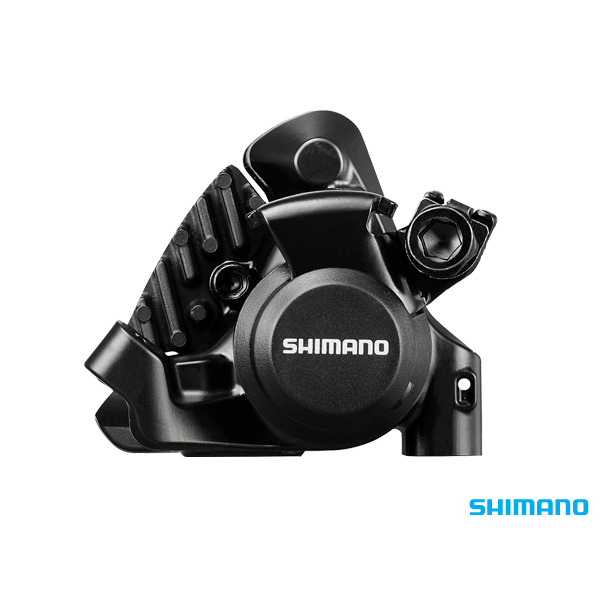

Shimano BR-RS305 mechanical disc brake caliper, rear

A cable-actuated flat mount disc caliper that is easy to live with: predictable at the lever, quick to set up and simple to keep adjusted. The low-profile body tucks neatly into the frame and the wide pad clearance makes rub far less likely after a wheel change.

Highlights

  • Mechanical (cable) disc brake caliper, rear
  • Shimano flat mount interface
  • Ice Technologies pad with cooling fin for heat management
  • Wide pad clearance and easy tool access
  • Easy Flip-Flop bracket runs either a 140 mm or 160 mm rotor
  • Black

Heat and setup

The finned Ice Technologies pad moves heat out of the pad and caliper on long descents, which helps keep the lever feel consistent. The one supplied bracket flips to suit either rotor size, so you are not buying an extra adapter to change rotor diameter.

Compatibility and fit

For frames with a flat mount rear disc brake interface, used with cable-operated brake levers. Takes a 140 mm or 160 mm rotor via the Flip-Flop bracket. In Australia the left-hand lever operates the rear brake, so this caliper runs from your left lever. If you are unsure whether your frame is flat mount or post mount, send us a photo and we will confirm it.

]]>

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Easy to control and clean appearance with stable brake performance for ordinary riders
  • Heat management system
  • ICE TECHNOLOGY pad with fin
  • Low profile disc caliper
  • SHIMANO Flat mount system
  • Easy set up and maintenance
  • Wide pad clearance
  • Easy tool access
  • SHIMANO Easy Flip-Flop bracket system
  • MODEL NO: BR-RS305-R
  • SHIMANO Series
  • Black Color
  • SHIMANO logo remarks
  • NEW SUPER SLR Compatibility
  • L03A Resin Pad Option
  • K03S Resin Pad Standard
  • Mechanical disc brake type
  • Anti loosen method Bolt fix pin Caliper fixing bolt
  • Tool size Caliper fixing bolt: 4mm
  • Fixing bolt Spec for rear mount: *10mm *15mm *20mm *25mm *30mm *35mm
  • Axle Pad mount
  • Piston: 1
  • Recommended disc brake rotor: SM-RT54/RT56 (160 mm), SM-RT70 (140 mm/160 mm)
ModelBR-RS305-R TypeMechanical (cable) disc brake caliper PositionRear MountShimano flat mount Rotor sizes140 mm or 160 mm via Easy Flip-Flop bracket PadsIce Technologies pad with fin ColourBlack ]]>
SKU SHM-EBRRS305RDRF
Barcode # 4524667401391
Brand Shimano
Shipping Weight 0.3000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
