Twenty hydraulic drop-bar gears with a road or gravel double

The CUES U6030 2x10 drop-bar groupset combines ST-U6030 hydraulic DUAL CONTROL LEVERS and BR-U6030 calipers with the FD-U6030 front derailleur and the 2x RD-U6020 rear derailleur on an 11-39T LINKGLIDE cassette. Add the FC-U6030-2 double crank with 50-34T rings for the road or 46-32T for gravel and touring; both fit the RD-U6020's 44T capacity.

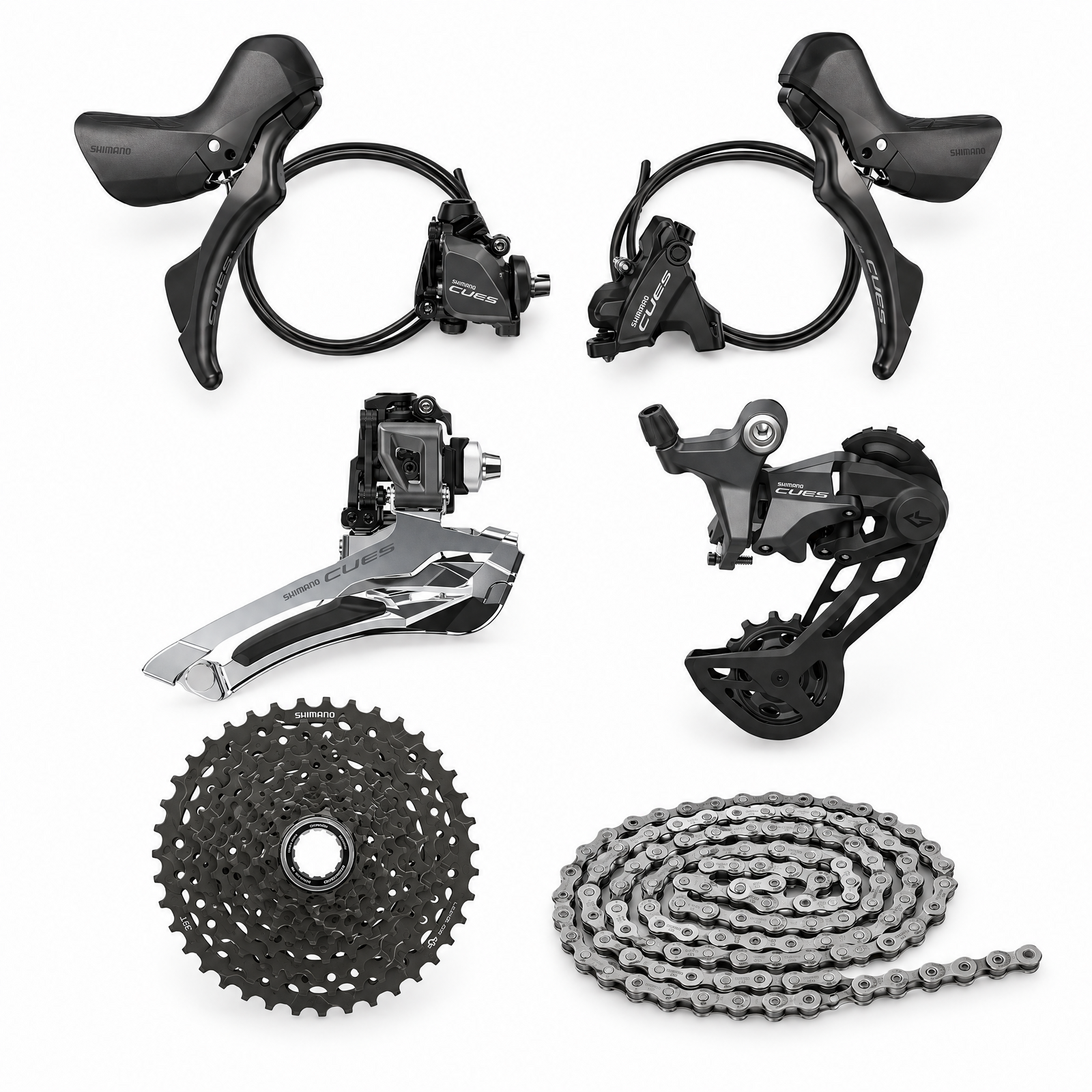

Kit includes

  • ST-U6030 right shift/brake lever with BR-U6030 front caliper and 1000 mm hose
  • ST-U6030-L left shift/brake lever (2x) with BR-U6030 rear caliper and 1700 mm hose
  • FD-U6030 front derailleur, braze-on, for 46-50T outer rings
  • RD-U6020 10-speed rear derailleur, SGS cage (for cassettes up to 39T)
  • CS-LG400-10 LINKGLIDE cassette 11-39T
  • CN-LG500 LINKGLIDE chain

Options

  • FC-U6030-2 crankset, 46-32T or 50-34T, 170, 172.5 or 175 mm
  • BB-MT501 threaded 68 mm bottom bracket
  • RT-CL700 Center Lock rotors (choose size)

The crank, bottom bracket and rotors are optional extras that start at 0, so e-bikes and bikes keeping their own parts are not charged for them. Every other part can be deselected if you already have it. The front derailleur is braze-on: frames without a tab need a clamp adapter. Levers fit 23.8 to 24.2 mm drop bars; calipers are flat mount.

Tune Cycles supplies and fits Shimano CUES across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • ST-U6030-R right hydraulic DUAL CONTROL LEVER with BR-U6030 flat-mount caliper, pre-bled with a 1000 mm hose (front brake)
  • ST-U6030-L left hydraulic DUAL CONTROL LEVER (2x front shifting) with BR-U6030 flat-mount caliper, pre-bled with a 1700 mm hose (rear brake)
  • FD-U6030 braze-on front derailleur for 46-50T outer chainrings (frames without a tab need a clamp adapter)
  • RD-U6020-SGS 10-speed rear derailleur, made for a 39T low sprocket with 44T total capacity
  • CS-LG400-10 LINKGLIDE 10-speed cassette, 11-39T, on a standard HG freehub body
  • CN-LG500 LINKGLIDE chain, 126 links, with quick link
  • Optional extras that start at 0: FC-U6030-2 crankset in 46-32T or 50-34T and 170, 172.5 or 175 mm (both ring sets fit the 44T capacity); BB-MT501 threaded bottom bracket, 68/73 mm, for HOLLOWTECH II cranks; RT-CL700 Center Lock rotors in 140, 160, 180 or 203 mm, up to two
  • LINKGLIDE cassette and chain: shift cleanly under load and outlast a conventional drivetrain, which suits e-bikes and hard-working commuters
  • Editable kit: deselect any part you already have and add only the extras your bike needs; the price follows the parts you keep
Brand Shimano
Series Shimano CUES U6030 (LINKGLIDE)
Drivetrain 2x10-speed
Handlebar Drop bar, 23.8-24.2 mm lever clamp
Brakes Hydraulic disc; BR-U6030 flat-mount calipers included, pre-bled
Levers ST-U6030-R (front caliper, 1000 mm hose) and ST-U6030-L 2x (rear caliper, 1700 mm hose)
Front derailleur FD-U6030, braze-on, 46-50T outer ring
Rear derailleur RD-U6020-SGS 10-speed, 39T low sprocket, 44T capacity
Cassette CS-LG400-10, 11-39T LINKGLIDE
Chain CN-LG500, 126 links, quick link
Crankset (optional) FC-U6030-2, 46-32T or 50-34T, 170 / 172.5 / 175 mm
Bottom bracket (optional) BB-MT501, 68/73 mm threaded
Rotors (optional) RT-CL700 Center Lock, 140 / 160 / 180 / 203 mm
Freehub Shimano HG spline
SKU SHM-U6030-2x10-DROP-GROUP
Brand Shimano
