Entry-level electronic shifting, with AUTO SHIFT, for a STEPS e-bike

The CUES Di2 U6050 1x10 kit is the starting point for electronic shifting on a Shimano STEPS e-bike. The RD-U6050-GS rear derailleur was developed for the EP600 and EP801 motor systems and brings AUTO SHIFT, which reads the motor's sensors and picks the gear for you, and FREE SHIFT, which changes gear while you coast. A press of the switch overrides it whenever you want manual control.

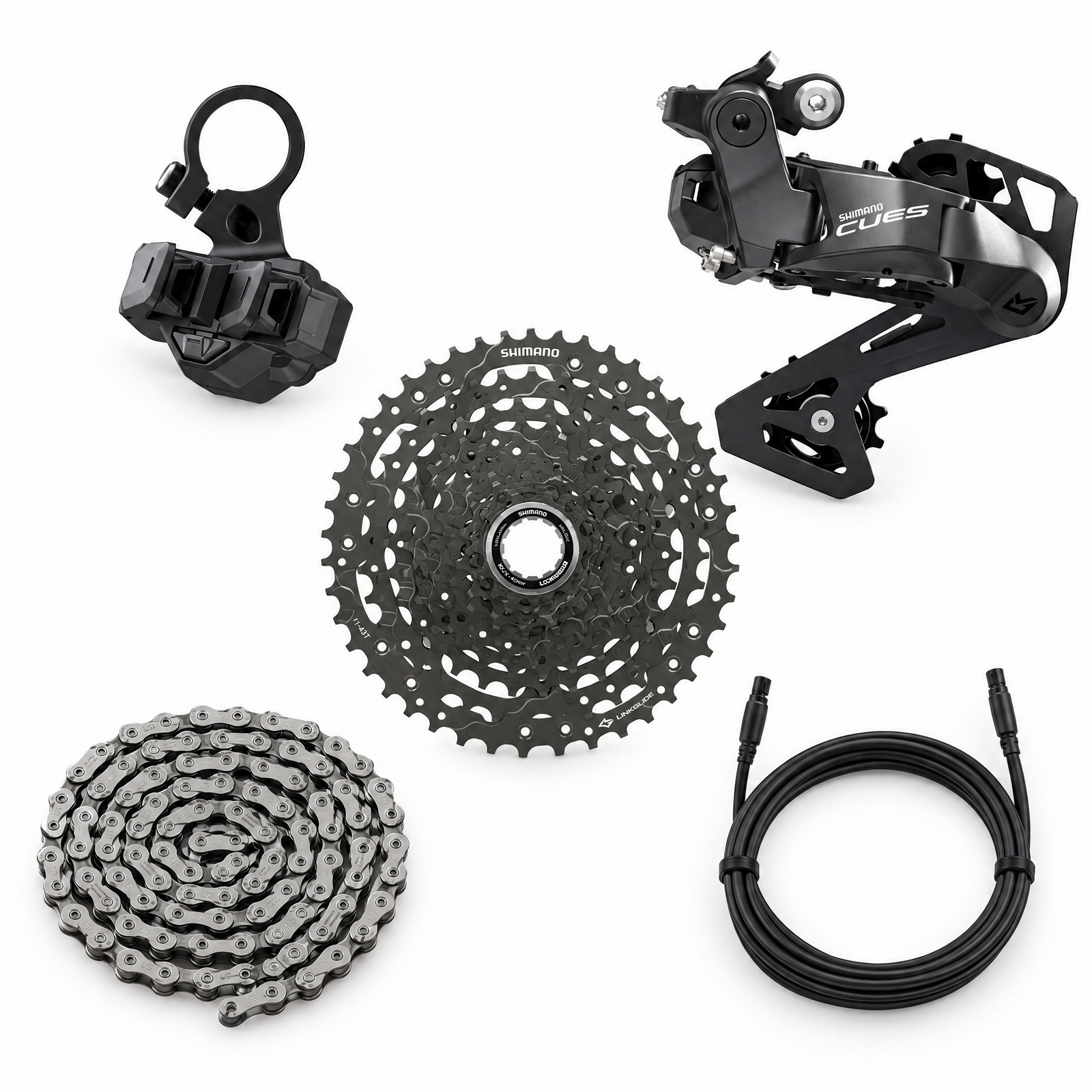

Kit includes

  • SW-EN605-R shift switch, right, three buttons with mode and battery LED, 22.2 mm clamp
  • RD-U6050-GS CUES Di2 rear derailleur, 10-speed, medium cage, SHADOW RD, direct attachment
  • CS-LG400 LINKGLIDE cassette, 10-speed, 11-43T
  • CN-LG500 LINKGLIDE chain with quick link
  • EW-SD300-I electric wire, 1200 mm (1400 or 1600 mm as alternatives), derailleur to drive unit

Options

  • FC-U6000-1 HOLLOWTECH II crankset, 170 or 175 mm, for a bike that is not using the motor's crank arms
  • BB-MT501 threaded 68/73 mm bottom bracket
  • BR-U8000 / BL-U8000 hydraulic disc brakes, front and rear
  • RT-MT800 Center Lock rotors, choose the size

The crank, bottom bracket, brakes and rotors start at 0, so an e-bike keeping its own parts is not charged for them. Every other part can be deselected if you already have it.

What it needs

A Shimano STEPS EP600 or EP801 e-bike system with a free EW-SD300 port. The RD-U6050-GS is an e-bike derailleur only: it does not work with mechanical shifting or with non-CUES Di2 systems. Every part is 10-speed LINKGLIDE and works only with other LINKGLIDE parts. Set-up and shift customisation are done in the E-TUBE PROJECT app.

Tune Cycles is Australia's only Authorised Mobile Shimano Service Centre and Shimano STEPS certified. We can supply and fit this kit; fitting is quoted separately when you book.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • Di2 electronic shifting on the CUES LINKGLIDE platform, 1x10-speed
  • AUTO SHIFT with manual override and FREE SHIFT (shifts while coasting) on STEPS EP600 / EP801
  • RD-U6050-GS medium-cage rear derailleur for 11-43T LINKGLIDE cassettes, 32T total capacity
  • SW-EN605-R three-button switch with mode button and battery LED
  • CS-LG400 LINKGLIDE 11-43T cassette on a standard Shimano HG freehub body
  • CN-LG500 LINKGLIDE chain with quick link
  • Powered by the e-bike through an EW-SD300 wire
  • Crank, bottom bracket, brakes and rotors optional and left at 0 by default
Specification Details
Series Shimano CUES Di2 U6050
Speeds 1x10 (LINKGLIDE)
Shifting Di2 electronic with AUTO SHIFT and FREE SHIFT; SW-EN605-R switch
Rear derailleur RD-U6050-GS, medium cage, SHADOW RD, direct attachment, for 11-43T, total capacity 32T
Cassette CS-LG400 LINKGLIDE 10-speed 11-43T (11-13-15-17-20-23-26-30-36-43), Shimano HG freehub
Chain CN-LG500 LINKGLIDE, 126 links, quick link
Power From the e-bike drive unit via EW-SD300; Shimano STEPS EP600 / EP801 only
Wire EW-SD300-I 1200 mm default; 1400 / 1600 mm alternatives
Crank Optional: FC-U6000-1 170 / 175 mm
Brakes Optional: BR-U8000 / BL-U8000 hydraulic disc, RT-MT800 rotors
Compatibility LINKGLIDE only; not compatible with HYPERGLIDE / HYPERGLIDE+, mechanical shifting or non-CUES Di2 systems
SKU SHM-U6050-Di2-1x10-GROUP
Brand Shimano
