An eighteen-speed hydraulic drop-bar groupset at the CUES entry price

The CUES U4030 2x9 drop-bar groupset pairs ST-U4030 hydraulic DUAL CONTROL LEVERS and BR-U6030 calipers with the FD-U6030 front derailleur and the RD-U3020 rear derailleur on an 11-36T LINKGLIDE cassette. Add the FC-U6030-2 double crank in 50-34T or 46-32T; both sit within the RD-U3020's 41T capacity.

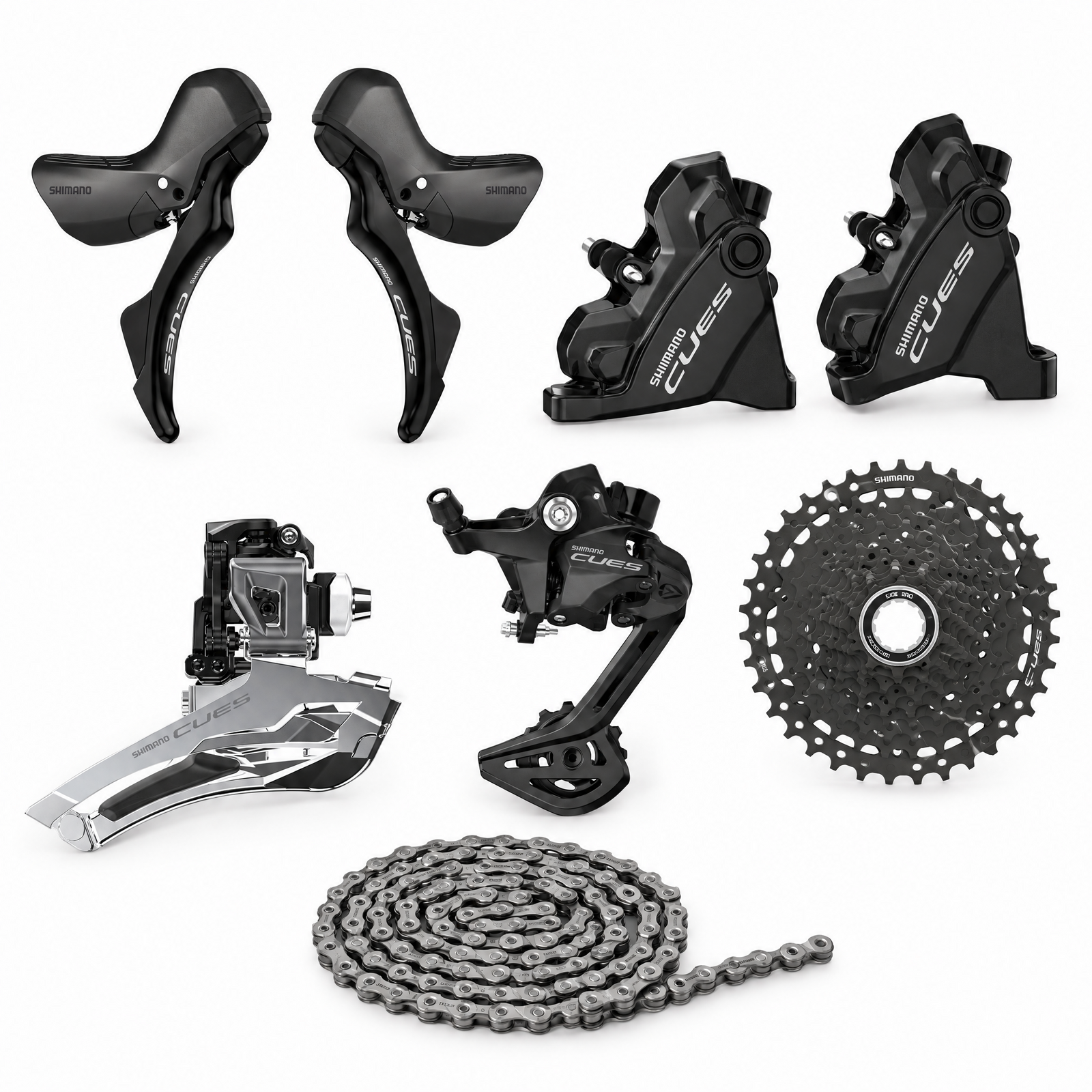

Kit includes

  • ST-U4030-R right shift/brake lever, 9-speed, hydraulic (hose kit included)
  • ST-U4030-L left shift/brake lever, 2x, hydraulic (hose kit included)
  • BR-U6030 flat-mount hydraulic calipers, front and rear
  • FD-U6030 front derailleur, braze-on, for 46-50T outer rings
  • RD-U3020 rear derailleur, SGS cage
  • CS-LG400-9 LINKGLIDE cassette 11-36T
  • CN-LG500 LINKGLIDE chain

Options

  • FC-U6030-2 crankset, 50-34T or 46-32T, 170, 172.5 or 175 mm
  • BB-MT501 threaded 68 mm bottom bracket
  • RT-CL700 Center Lock rotors (choose size)

The crank, bottom bracket and rotors are optional extras that start at 0, so e-bikes and bikes keeping their own parts are not charged for them. Every other part can be deselected if you already have it. The front derailleur is braze-on: frames without a tab need a clamp adapter. Levers come with their hydraulic hoses and need a mineral-oil bleed after fitting.

Tune Cycles supplies and fits Shimano CUES across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • ST-U4030-R right (9-speed) and ST-U4030-L left (2x) hydraulic DUAL CONTROL LEVERS, hoses included (bleed after fitting)
  • BR-U6030 flat-mount hydraulic disc calipers, front and rear
  • FD-U6030 braze-on front derailleur for 46-50T outer chainrings (frames without a tab need a clamp adapter)
  • RD-U3020-SGS rear derailleur, made for a 36T low sprocket with 41T total capacity — both 50-34T and 46-32T fit with the 11-36T cassette
  • CS-LG400-9 LINKGLIDE 9-speed cassette, 11-36T, on a standard HG freehub body
  • CN-LG500 LINKGLIDE chain, 138 links, with quick link
  • Optional extras that start at 0: FC-U6030-2 crankset in 50-34T or 46-32T and 170, 172.5 or 175 mm; BB-MT501 threaded bottom bracket, 68/73 mm, for HOLLOWTECH II cranks; RT-CL700 Center Lock rotors in 140, 160, 180 or 203 mm, up to two
  • LINKGLIDE cassette and chain: shift cleanly under load and outlast a conventional drivetrain, which suits e-bikes and hard-working commuters
  • Editable kit: deselect any part you already have and add only the extras your bike needs; the price follows the parts you keep
Brand Shimano
Series Shimano CUES U4030 (LINKGLIDE)
Drivetrain 2x9-speed
Handlebar Drop bar, 23.8-24.2 mm lever clamp
Brakes Hydraulic disc; BR-U6030 flat-mount calipers included (levers supplied with hoses, bleed after fitting)
Levers ST-U4030-R right (9-speed), ST-U4030-L left (2x)
Front derailleur FD-U6030, braze-on, 46-50T outer ring
Rear derailleur RD-U3020-SGS, 36T low sprocket, 41T capacity
Cassette CS-LG400-9, 11-36T LINKGLIDE
Chain CN-LG500, 138 links, quick link
Crankset (optional) FC-U6030-2, 50-34T or 46-32T, 170 / 172.5 / 175 mm
Bottom bracket (optional) BB-MT501, 68/73 mm threaded
Rotors (optional) RT-CL700 Center Lock, 140 / 160 / 180 / 203 mm
Freehub Shimano HG spline
SKU SHM-U4030-2x9-DROP-GROUP
