Electronic LINKGLIDE shifting for a Shimano STEPS e-bike

The CUES Di2 U8050 1x11 kit is the electronic version of the CUES LINKGLIDE drivetrain, sold as the parts that make it shift so they match. The RD-U8050-SGS rear derailleur takes its power from the STEPS drive unit through one EW-SD300 wire, and the SW-EN605-R switch on the bars talks to it wirelessly. No cable to stretch, nothing to re-index, and a LINKGLIDE cassette built to outlast a conventional one under motor torque.

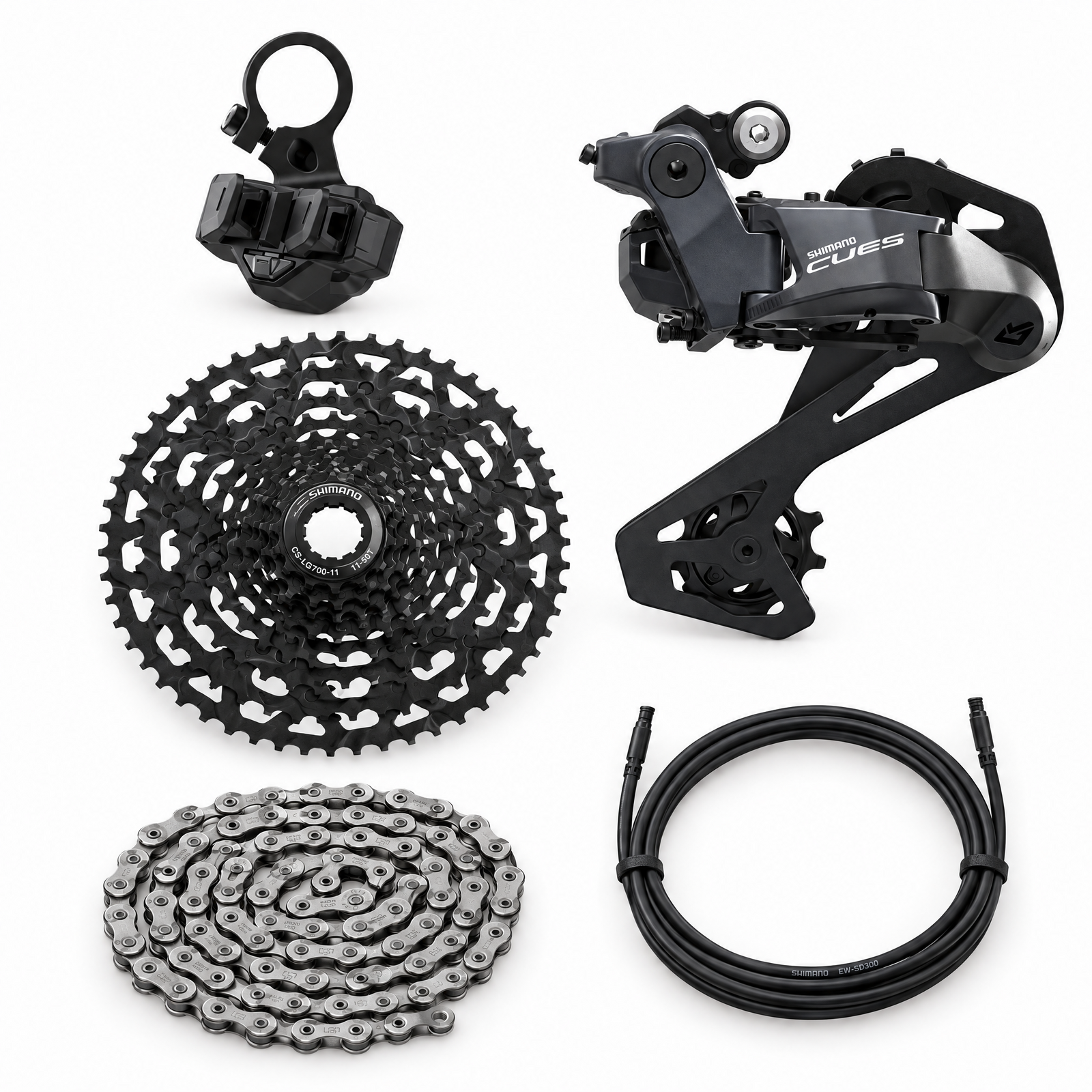

Kit includes

  • SW-EN605-R wireless shift switch, right, three buttons with mode and battery LED, 22.2 mm clamp
  • RD-U8050-SGS CUES Di2 rear derailleur, 11-speed, long cage, SHADOW RD, direct attachment
  • CS-LG700-11 LINKGLIDE cassette, 11-50T
  • CN-LG500 LINKGLIDE chain with quick link
  • EW-SD300-I electric wire, 1200 mm (1400 or 1600 mm as alternatives), derailleur to drive unit

Options

  • FC-U8000-1 HOLLOWTECH II crankset, 170 or 175 mm, 40 or 42T, for a bike that is not using the motor's crank arms
  • BB-MT501 threaded 68/73 mm bottom bracket
  • BR-U8000 / BL-U8000 hydraulic disc brakes, front and rear
  • RT-MT800 Center Lock rotors, choose the size

The crank, bottom bracket, brakes and rotors start at 0, so an e-bike keeping its own parts is not charged for them. Every other part can be deselected if you already have it.

What it needs

A Shimano STEPS e-bike system with a free EW-SD300 port (EP600 and EP801 take the wire directly), or a Bosch BSE3 system with Shimano's PW-PS300 power supply wire, which we do not stock as a kit part: ask us before you order. The RD-U8050-SGS is offered here with the 11-50T cassette only, the range it is made for. Every part here is 11-speed LINKGLIDE and works only with other LINKGLIDE parts; it does not mix with HYPERGLIDE or HYPERGLIDE+ components. Set-up, firmware and shift customisation are done in the E-TUBE PROJECT app.

Tune Cycles is Australia's only Authorised Mobile Shimano Service Centre and Shimano STEPS certified. We can supply and fit this kit; fitting is quoted separately when you book.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • Di2 electronic shifting on the CUES LINKGLIDE platform, 1x11-speed
  • RD-U8050-SGS long-cage rear derailleur, 11-50T maximum sprocket, 39T total capacity
  • SW-EN605-R wireless three-button switch with AUTO SHIFT / manual mode button and battery LED
  • CS-LG700-11 LINKGLIDE cassette on a standard Shimano HG freehub body
  • CN-LG500 LINKGLIDE chain with quick link
  • Powered by the e-bike: EW-SD300 wire from derailleur to a Shimano STEPS drive unit; Bosch BSE3 with PW-PS300
  • Crank, bottom bracket, brakes and rotors optional and left at 0 by default
  • Set up and customised in the E-TUBE PROJECT app
Specification Details
Series Shimano CUES Di2 U8050
Speeds 1x11 (LINKGLIDE)
Shifting Di2 electronic; SW-EN605-R wireless switch (2 x CR1632)
Rear derailleur RD-U8050-SGS, long cage, SHADOW RD, direct attachment, max sprocket 50T, total capacity 39T
Cassette CS-LG700-11 LINKGLIDE 11-50T, Shimano HG freehub
Chain CN-LG500 LINKGLIDE, 126 links, quick link
Power From the e-bike drive unit via EW-SD300 (STEPS EP600 / EP801); Bosch BSE3 via PW-PS300 (not included)
Wire EW-SD300-I 1200 mm default; 1400 / 1600 mm alternatives
Crank Optional: FC-U8000-1 170 / 175 mm, 40 / 42T
Brakes Optional: BR-U8000 / BL-U8000 hydraulic disc, RT-MT800 rotors
Compatibility LINKGLIDE only; not compatible with HYPERGLIDE / HYPERGLIDE+ or mechanical shifting
SKU SHM-U8050-Di2-1x11-GROUP
Brand Shimano
