XTR's mechanical 12-speed, for riders who want the cable

XTR M9100 is Shimano's top mechanical MTB groupset: the lightest RAPIDFIRE PLUS shifter, a SHADOW RD+ derailleur with a carbon cage option and HYPERGLIDE+ shifting on the MICRO SPLINE cassette. It is the choice for XC and marathon racers, and for anyone who prefers a cable to a battery. This kit is the drivetrain; add the crank, chainring, brakes and bottom bracket you need and leave out what you already have.

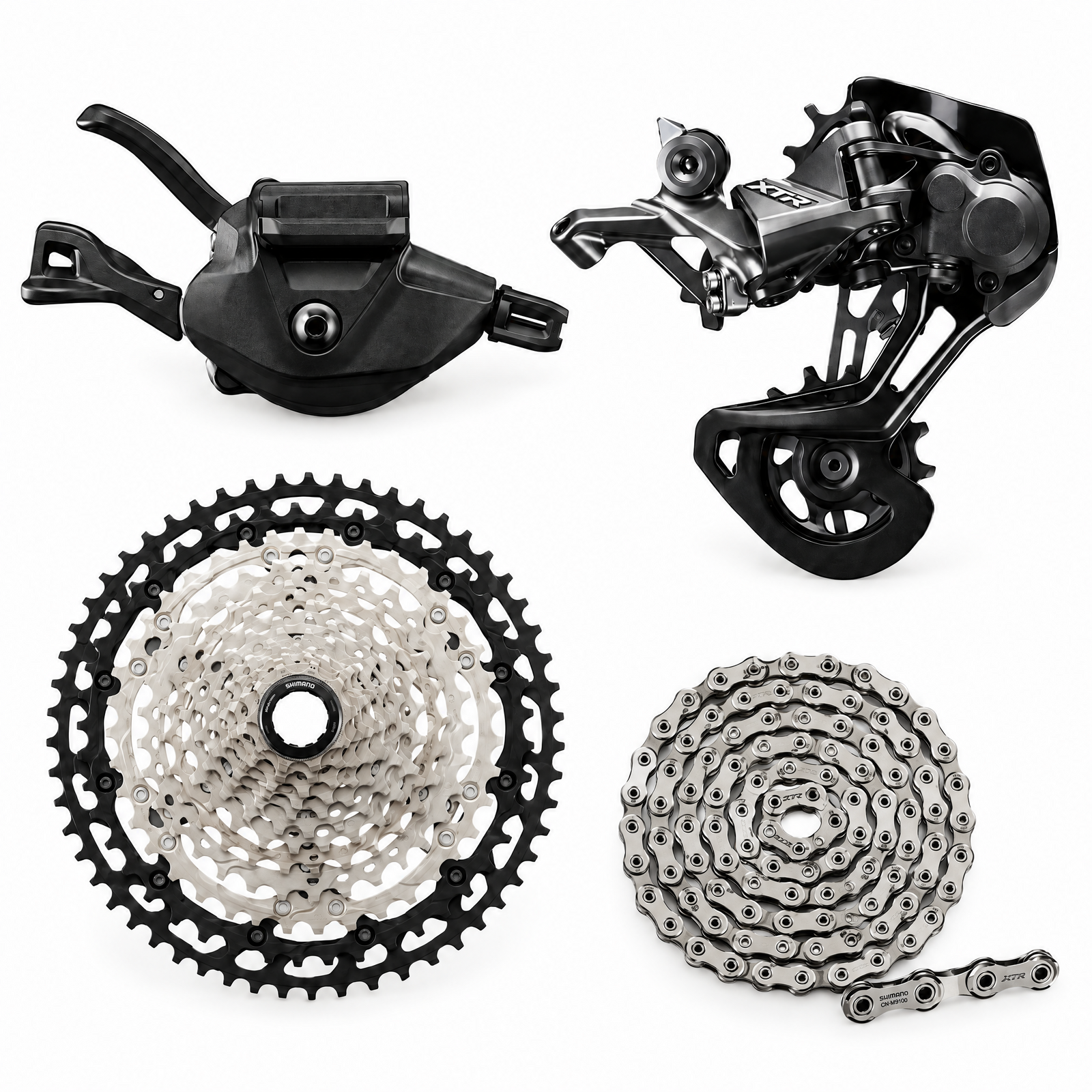

Kit includes

  • SL-M9100 RAPIDFIRE PLUS right shifter, 12-speed; choose band clamp or I-SPEC EV
  • RD-M9100 SHADOW RD+ rear derailleur; choose GS (medium cage) or SGS (long cage)
  • CS-M8100 Deore XT MICRO SPLINE cassette; choose 10-45T or 10-51T (the XTR CS-M9100 is supplied on request)
  • CN-M9100 12-speed chain, 126 links, with QUICK-LINK

Match the derailleur to the cassette

Shimano makes the RD-M9100-GS for the 10-45T cassette only and the RD-M9100-SGS for the 10-51T cassette only. Choose the pair that goes together; if you pick 10-51T, pick SGS.

Options

  • FC-M9100-1 crankset, 165, 170 or 175 mm (no chainring)
  • SM-CRM95 direct mount chainring, 30 to 38T
  • BB-MT801 threaded (68/73 mm) or BB-MT800 press-fit (89.5/92 mm) bottom bracket
  • BR-M9200 XTR two-piston race brakes (front, rear), as J-kits
  • RT-CL800 Center Lock rotors (choose size, up to two)

Every part can be deselected if you already have it. The cassette needs a MICRO SPLINE freehub body.

Tune Cycles supplies and fits Shimano XTR across Sydney. Choose your options above; if you are unsure what your frame or hub takes, ask us before you order.

Shimano offers a limited warranty covering defects in materials and workmanship on every component in this kit. For warranty support, return the item to Tune Cycles.
  • Shimano XTR M9100 12-speed mechanical MTB drivetrain, the lightest RAPIDFIRE PLUS shifter Shimano makes
  • SL-M9100 right shifter; choose band clamp or I-SPEC EV
  • RD-M9100 SHADOW RD+ rear derailleur with carbon cage; choose GS (10-45T) or SGS (10-51T)
  • CS-M8100 Deore XT MICRO SPLINE cassette in 10-45T or 10-51T (XTR CS-M9100 on request)
  • Editable kit: crank, chainring, bottom bracket, brakes and rotors are optional, and any part can be deselected
  • FC-M9100-1 crank in 165, 170 or 175 mm with SM-CRM95 rings from 30 to 38T
BrandShimano
SeriesXTR M9100
Drivetrain1x12-speed, mechanical
ShifterSL-M9100 right, band clamp or I-SPEC EV
Rear DerailleurRD-M9100 GS (45T max) or SGS (51T max), SHADOW RD+
CassetteCS-M8100 12-speed, 10-45T or 10-51T, MICRO SPLINE
ChainCN-M9100 12-speed, 126 links, QUICK-LINK
Crankset (optional)FC-M9100-1 HOLLOWTECH II, 165 / 170 / 175 mm, no chainring
Chainring (optional)SM-CRM95 direct mount, 30 / 32 / 34 / 36 / 38T
Bottom Bracket (optional)BB-MT801 threaded or BB-MT800 press-fit
Brakes (optional)BR-M9200 two-piston J-kits, front and rear
Rotors (optional)RT-CL800 Center Lock, up to two
Kit TypeEditable kit — every part can be deselected
SKU SHM-M9100-GRP
