The 12-speed Deore drivetrain, built to your bike

Deore M6100 gives you Shimano's 12-speed MICRO SPLINE system at its most affordable: HYPERGLIDE+ shifting, a SHADOW RD+ clutch derailleur and the wide 10-51T cassette that the XT and SLX groups use. This kit is the drivetrain; add the crank, brakes and bottom bracket you need and leave out what you already have.

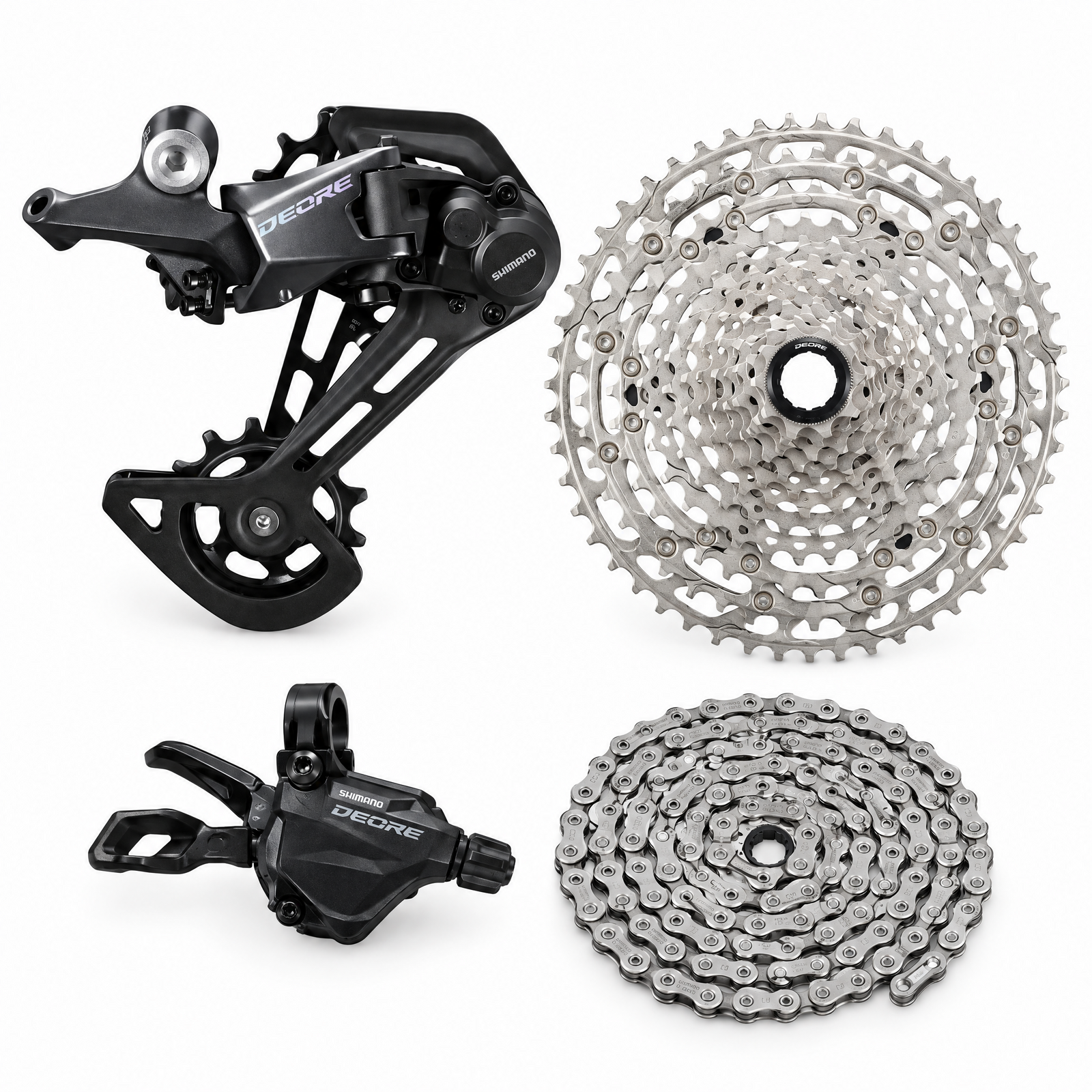

Kit includes

  • SL-M6100 RAPIDFIRE PLUS right shifter, 12-speed; choose band clamp or I-SPEC EV
  • RD-M6100-SGS SHADOW RD+ rear derailleur, long cage, for the 10-51T cassette
  • CS-M6100 MICRO SPLINE cassette, 10-51T
  • CN-M6100 12-speed chain, 126 links, with QUICK-LINK

Options

  • FC-M6100-1 crankset, 170 or 175 mm with a 30 or 32T ring (52 mm chainline)
  • BB-MT801 threaded (68/73 mm) or BB-MT800 press-fit (89.5/92 mm) bottom bracket
  • BR-M6100 two-piston or BR-M6120 four-piston Deore brakes, front and rear J-kits
  • RT-CL700 Center Lock rotors (choose size, up to two)

Every part can be deselected if you already have it. The cassette needs a MICRO SPLINE freehub body. e-bike riders leave the crank out and fit the drivetrain to the motor's own crank.

Tune Cycles supplies and fits Shimano Deore across Sydney. Choose your options above; if you are unsure what your frame or hub takes, ask us before you order.

Shimano Deore XT M8250 12-Speed Di2 Groupset Warranty Information

The Shimano Deore XT M8250 12-Speed Di2 Groupset comes with a limited warranty covering defects in materials and workmanship for a period of two years from the date of original retail purchase. This warranty ensures that mountain bikers and trail riders receive the high-level performance, impact recovery, and electronic precision expected from the Deore XT line.

Warranty Details:

  • Duration: 2 Years from the date of purchase.

  • Coverage: Manufacturing defects in the derailleur, wireless shifter, and battery system.

  • Exclusions: Normal wear and tear, damage from crashes or improper installation, and unauthorized modifications.

For detailed warranty terms and conditions, or to initiate a claim, please visit the official Shimano Warranty Page.

Key Features:

  • FREE SHIFT Technology: Allows for gear changes while coasting, ensuring you are always in the right gear for the next climb or descent.

  • AUTO SHIFT with Manual Override: Uses advanced sensors to automatically shift gears based on speed and cadence, letting you focus entirely on the trail.

  • 4-Piston Hydraulic Brakes: Delivers downhill-certified stopping power and modulation for maximum confidence in technical terrain.

  • Linkglide Durability: Engineered to be 3x more durable than Hyperglide, specifically to withstand the high-torque loads of e-bike mid-drive motors.

  • E-Tube Connectivity: Seamlessly customize your ride settings and update firmware via the E-Tube Project Cyclist App.

  • Shadow RD+ Clutch: Minimizes chain slap and prevents chain drops for a quieter, more secure ride.



  • 12-Speed Precision: Offers a wide gear range (up to 10-51T or 9-45T) to conquer any gradient with a consistent cadence.

  • Integrated Power: Plugs directly into the e-bike’s main battery, eliminating the need to charge a separate derailleur battery.

Technical Specs:

Specification Detail
Speed 12-speed
Shifting Type Electronic (Di2) with FREE SHIFT & AUTO SHIFT
Brake Type Hydraulic Disc (4-Piston)
Drive Unit Compatibility Shimano EP801 / EP600 (EP6)
Drivetrain Tech Linkglide (LG) or Hyperglide+
Rear Derailleur Shadow RD+ (GS and SGS options)
Connectivity E-Tube (Bluetooth/ANT private)
SKU SHM-M6100-Deore-GRP
Model # Ultegra R8100 Groupset
Barcode #
Brand Shimano
