The XT mechanical 1x12 drivetrain, built to your bike

Deore XT M8100 is Shimano's mechanical 12-speed trail and XC groupset: HYPERGLIDE+ shifting under load, a SHADOW RD+ clutch derailleur and the MICRO SPLINE cassette in 10-45T or 10-51T. This kit is the drivetrain; add the crank, chainring, brakes and bottom bracket you need and leave out what you already have.

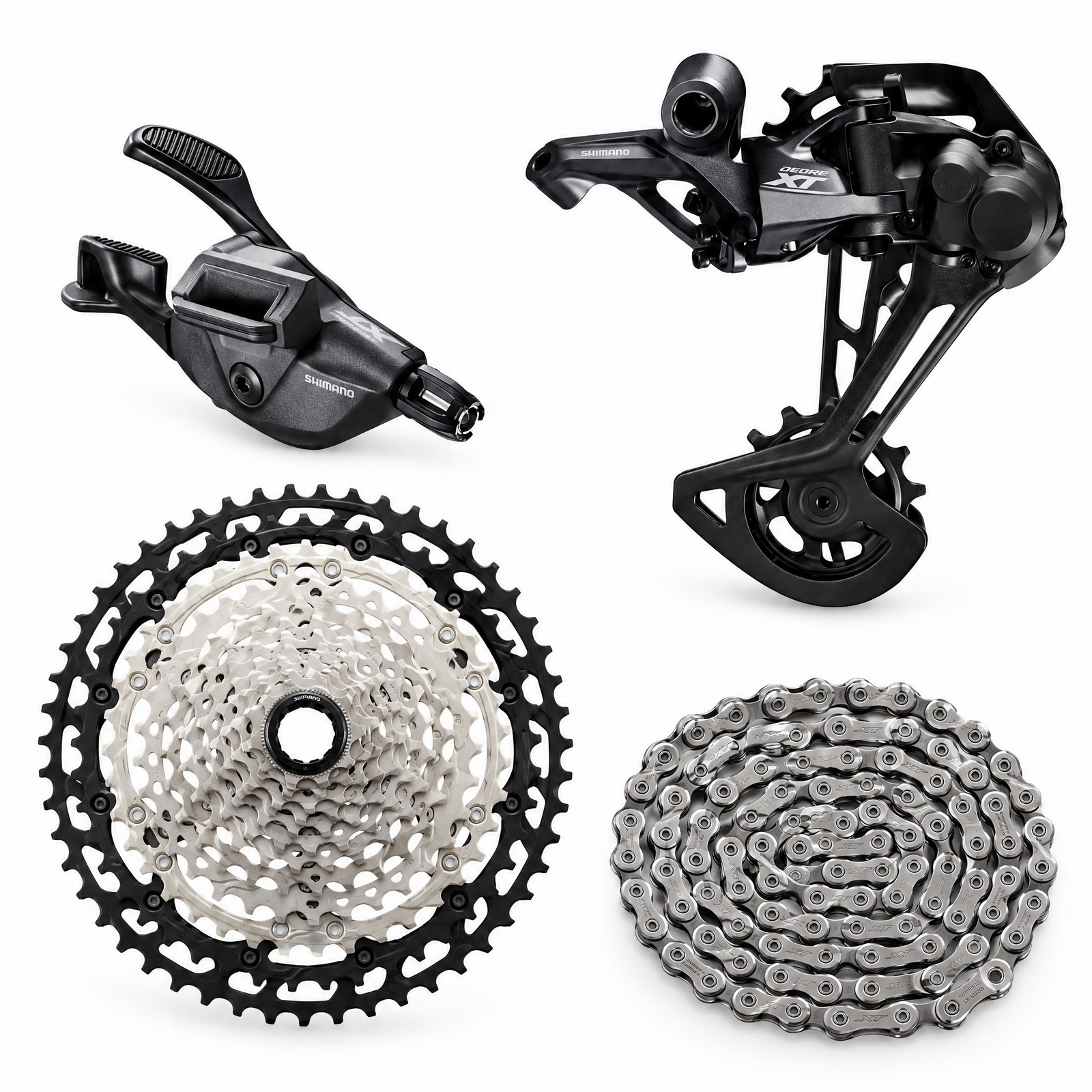

Kit includes

  • SL-M8100 RAPIDFIRE PLUS right shifter, 12-speed; choose band clamp or I-SPEC EV
  • RD-M8100 SHADOW RD+ rear derailleur; choose GS (medium cage) or SGS (long cage)
  • CS-M8100 MICRO SPLINE cassette; choose 10-45T or 10-51T
  • CN-M8100 12-speed chain, 126 links, with QUICK-LINK

Match the derailleur to the cassette

Shimano makes the RD-M8100-GS for the 10-45T cassette only and the RD-M8100-SGS for the 10-51T cassette only. Choose the pair that goes together; if you pick 10-51T, pick SGS.

Options

  • FC-M8100-1 crankset, 165, 170, 175 or 180 mm (52 mm chainline, no chainring)
  • SM-CRM85 direct mount chainring, 28 to 36T
  • BB-MT801 threaded (68/73 mm) or BB-MT800 press-fit (89.5/92 mm) bottom bracket
  • BR-M8100 two-piston XC brakes (front, rear) or BR-M8120 four-piston trail brakes (front, rear), as J-kits
  • RT-CL700 or RT-CL800 Center Lock rotors (choose size, up to two)

Every part can be deselected if you already have it. The cassette needs a MICRO SPLINE freehub body. e-bike riders can leave the crank out and fit the drivetrain to the motor's own crank.

Tune Cycles supplies and fits Shimano XT across Sydney. Choose your options above; if you are unsure what your frame or hub takes, ask us before you order.

Shimano offers a limited warranty covering defects in materials and workmanship on every component in this kit. For warranty support, return the item to Tune Cycles.
  • Shimano Deore XT M8100 12-speed mechanical MTB drivetrain with HYPERGLIDE+ shifting under load
  • SL-M8100 RAPIDFIRE PLUS right shifter; choose band clamp or I-SPEC EV
  • RD-M8100 SHADOW RD+ clutch rear derailleur; choose GS (10-45T) or SGS (10-51T) cage
  • CS-M8100 MICRO SPLINE cassette in 10-45T or 10-51T
  • Editable kit: crank, chainring, bottom bracket, brakes and rotors are optional, and any part can be deselected
  • FC-M8100-1 crank in 165 to 180 mm with SM-CRM85 rings from 28 to 36T
BrandShimano
SeriesDeore XT M8100
Drivetrain1x12-speed, mechanical
ShifterSL-M8100 right, band clamp or I-SPEC EV
Rear DerailleurRD-M8100 GS (45T max) or SGS (51T max), SHADOW RD+
CassetteCS-M8100 12-speed, 10-45T or 10-51T, MICRO SPLINE
ChainCN-M8100 12-speed, 126 links, QUICK-LINK
Crankset (optional)FC-M8100-1 HOLLOWTECH II, 165 / 170 / 175 / 180 mm, 52 mm chainline, no chainring
Chainring (optional)SM-CRM85 direct mount, 28 / 30 / 32 / 34 / 36T
Bottom Bracket (optional)BB-MT801 threaded or BB-MT800 press-fit
Brakes (optional)BR-M8100 two-piston or BR-M8120 four-piston J-kits, front and rear
Rotors (optional)RT-CL700 / RT-CL800 Center Lock, up to two
Kit TypeEditable kit — every part can be deselected
SKU SHM-M8100-GRP
Brand Shimano
