DT Swiss 350 MTB Rear Hub - Boost 12x148mm SRAM XD 6-Bolt 28H
SKU code: APO-DTH3700

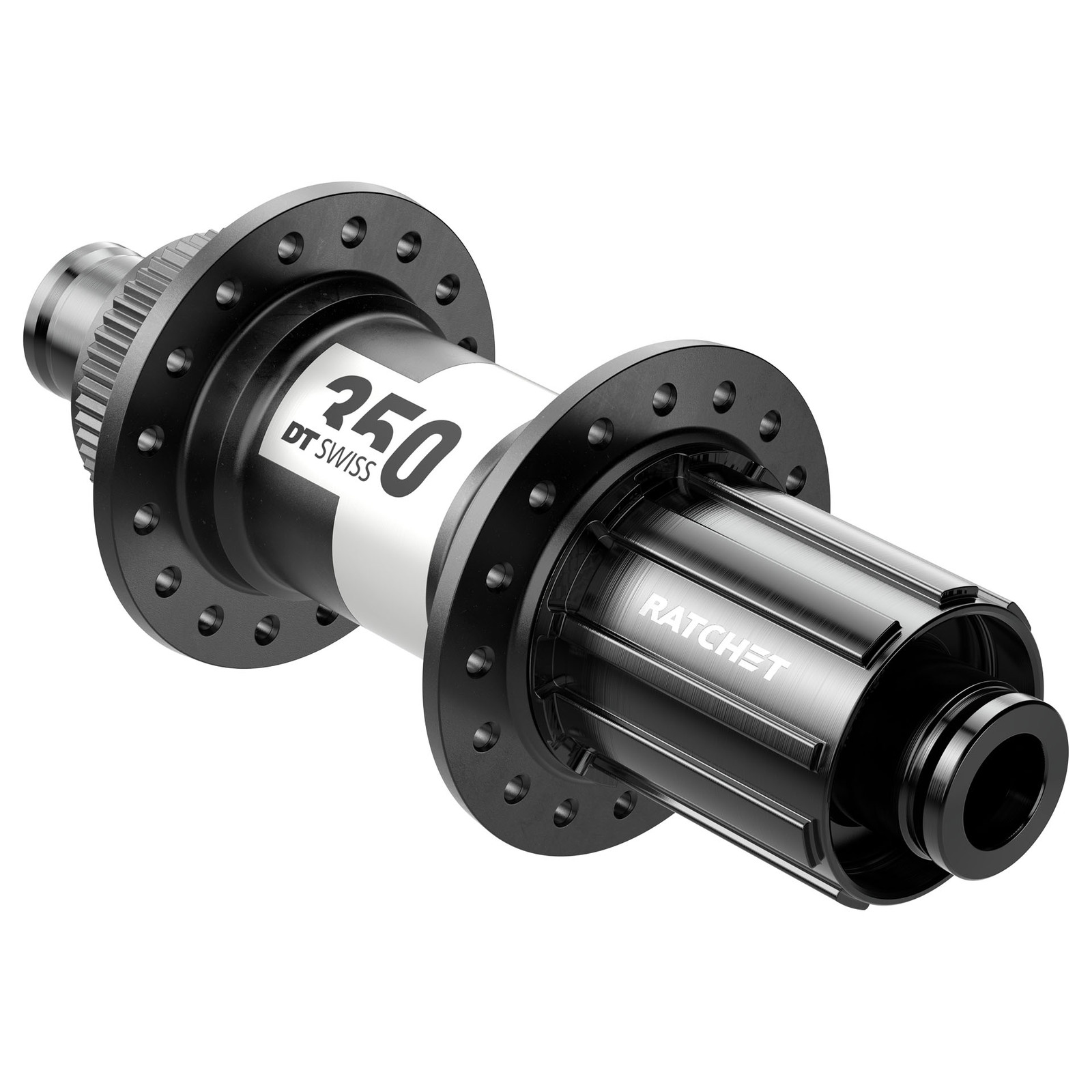

DT Swiss 350 Rear Hub
The DT Swiss 350 is the dependable workhorse of the range — proven and fully serviceable, with the trusted Ratchet System freehub. This disc rear hub runs a 12 x 142 mm thru-axle with 28-hole drilling.
Tune Cycles builds and services wheels in-house and is experienced with DT Swiss hubs — book a build or service at tunecycles.com.au/book.
DT Swiss spare parts for this hub
The parts DT Swiss lists for this hub, with DT part numbers. Parts marked ask us are special order.
Bearing service kit: DT Swiss Hub Bearing Kit 2× 6902 (15×28×7 mm) + Seal & Grease — the hub bearings for this hub in DT's quantities.
| Part | DT part no. | Qty in hub |
|---|---|---|
| Seal hub/rotor (Ø30x36x2.5mm) | HSOXXX00N1031S | 1 |
| Ring nut, steel M34x1mm | HXDXXX00N1131S | 1 |
| Shim ring DIN 988 Ø28/20x0.5mm | HCDXXX00S1083S | 1 |
| Ball bearing Ø 15/28x7mm 6902 | HSBXXX00N2336S | 2 |
| Conversion kit — freehub body | HWYAAL00S3188S | 1 |
| Axle aluminium 148mm, Ø15/48.2mm | HCCXXX00S6450S | 1 |
| Service Kit Rear Hub with Ratchet System 36T SL | HWTXXX00NSK36S | 1 |
| DT Swiss special grease 20 gr | HXT10032508S | 1 |
| Spacer Ø15/18x15.4mm | HCDXXX00S1077S | 1 |
| RW adapter KIT 142/ Ø12mm | HWGXXX00S3188S | 1 |
| RW adapter conversion kit 142mm / 12 | HWGXXX0002193C | 1 |
| axle aluminium 130/135mm, Ø15mm / 42.1mm | HCCXXX00S2216S | 1 |
| Conversion kit — freehub body | HWYABX00S3745S | 1 |
| Conversion kit — freehub body | HWYABL00S2562S | 1 |
Conversion kits
| Convert to | Parts needed (DT part no.) |
|---|---|
| Shimano Micro Spline MTB 12/148 mm Boost | Freehub body Conversion kit (HWYABL00S2562S) |
| Shimano MTB 12/148 mm Boost | Freehub body Conversion kit (HWYABX00S3745S) |
| Shimano Micro Spline MTB 05/135 mm | RW adapter kit QR/135mm (HWGXXX00S5621S) |
| Shimano Micro Spline MTB 12/142 mm | Freehub body Conversion kit (HWYABL00S2562S) |
| Shimano MTB 05/135 mm | RW adapter conversion kit 135mm / QR (HWGXXX0001528S) |
| Shimano MTB 10/135 mm Thru Bolt | RW adapter KIT 135/150 Ø10mm (HWGXXX0001803S) |
| Shimano MTB 12/135 mm | RW adapter KIT 135/ Ø12mm (HWGXXX0002218S) |
| SRAM XD 10/135 mm Thru Bolt | Freehub body Conversion kit (HWYAAL00S3188S) |
| SRAM XD 12/135 mm | RW adapter KIT 135/ Ø12mm (HWGXXX00S3382S) |
| SRAM XD 12/142 mm | Freehub body Conversion kit (HWYAAL00S3188S) |
| SRAM XD 12/148 mm Boost | Freehub body Conversion kit (HWYAAL00S3188S) |
Exploded view, manuals and service videos: DT Swiss support page for this hub.
Spoke Count: 28H. This is the only option on this listing.
This hub is covered by DT Swiss’ warranty against defects in materials and workmanship; terms are set by DT Swiss. Bearings and freehub internals are serviceable wear parts.
As a DT Swiss-experienced workshop, Tune Cycles can service, build and lodge any warranty assessment on your behalf — book at tunecycles.com.au/book.
- DT Swiss Ratchet System freehub — robust and easy to service
- 12 x 142 mm thru-axle rear
- Disc brake
- 28-hole drilling
| Specification | Details |
|---|---|
| Brand | DT Swiss |
| Series | 350 |
| Position | Rear |
| Axle | 12 x 142 mm thru-axle |
| Freehub | DT Swiss Ratchet System |
| Brake mount | Disc |
| Spoke holes | 28H |
| SKU | HB-DT-350-142-28-RR |
| Barcode # | 7613052329949 |
| Brand | DT Swiss |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
