Hydraulic drop-bar CUES with a 50-tooth climbing sprocket

The CUES U6030 1x11 drop-bar groupset brings hydraulic disc braking to the LINKGLIDE ecosystem: ST-U6030 DUAL CONTROL LEVERS pre-bled to BR-U6030 flat-mount calipers, the RD-U6000 rear derailleur and an 11-50T cassette for gravel, touring and commuting.

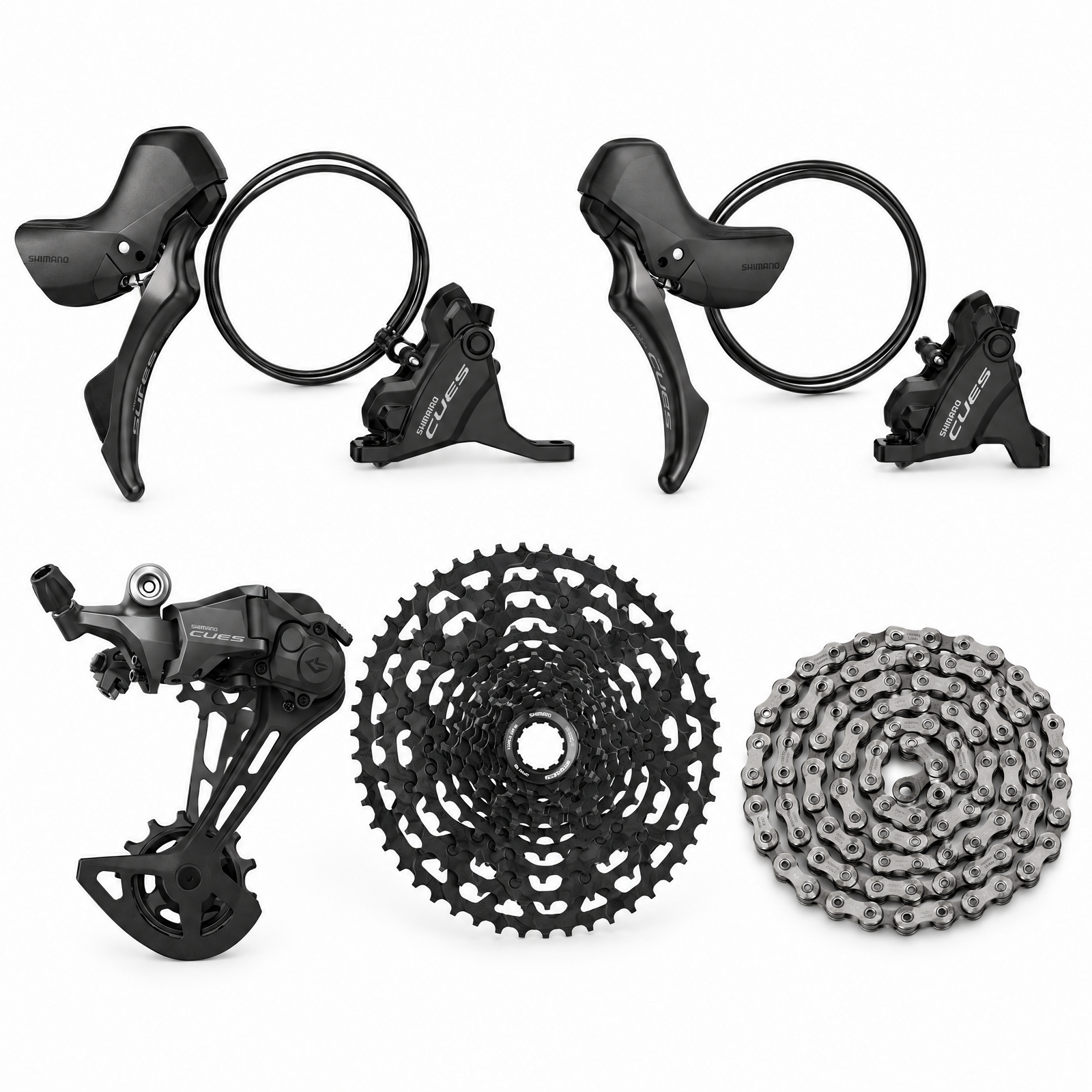

Kit includes

  • ST-U6030 right shift/brake lever with BR-U6030 front caliper and 1000 mm hose
  • BL-U6030 left brake lever with BR-U6030 rear caliper and 1700 mm hose
  • RD-U6000-GS rear derailleur (for 48-50T cassettes)
  • CS-LG700-11 LINKGLIDE cassette 11-50T (or CS-LG400-11 11-50T)
  • CN-LG500 LINKGLIDE chain

Options

  • FC-U6030-1 drop-bar crankset (40T/170 mm or 42T/172.5 mm) or FC-U6000-1 crankset (30 to 42T, 170 or 175 mm)
  • BB-MT501 threaded 68 mm bottom bracket
  • RT-CL700 Center Lock rotors (choose size)

The crank, bottom bracket and rotors are optional extras that start at 0, so e-bikes and bikes keeping their own parts are not charged for them. Every other part can be deselected if you already have it. Pick one cassette. Levers fit 23.8 to 24.2 mm drop bars; calipers are flat mount.

Tune Cycles supplies and fits Shimano CUES across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • ST-U6030-R right hydraulic DUAL CONTROL LEVER with BR-U6030 flat-mount caliper, pre-bled with a 1000 mm hose (front brake)
  • BL-U6030-L left hydraulic brake lever with BR-U6030 flat-mount caliper, pre-bled with a 1700 mm hose (rear brake)
  • RD-U6000-GS rear derailleur, made for a 48-50T low sprocket with 39T total capacity
  • CS-LG700-11 LINKGLIDE 11-speed cassette, 11-50T (or the CS-LG400-11 11-50T), on a standard HG freehub body
  • CN-LG500 LINKGLIDE chain, 126 links, with quick link
  • Optional extras that start at 0: FC-U6030-1 crankset (40T / 170 mm or 42T / 172.5 mm) or FC-U6000-1 in 170 or 175 mm with a 30, 32, 40 or 42T ring; BB-MT501 threaded bottom bracket, 68/73 mm, for HOLLOWTECH II cranks; RT-CL700 Center Lock rotors in 140, 160, 180 or 203 mm, up to two
  • LINKGLIDE cassette and chain: shift cleanly under load and outlast a conventional drivetrain, which suits e-bikes and hard-working commuters
  • Editable kit: deselect any part you already have and add only the extras your bike needs; the price follows the parts you keep
Brand Shimano
Series Shimano CUES U6030 / U6000 (LINKGLIDE)
Drivetrain 1x11-speed
Handlebar Drop bar, 23.8-24.2 mm lever clamp
Brakes Hydraulic disc; BR-U6030 flat-mount calipers included, pre-bled
Right lever ST-U6030-R with BR-U6030 front caliper, 1000 mm hose
Left lever BL-U6030-L (brake only) with BR-U6030 rear caliper, 1700 mm hose
Rear derailleur RD-U6000-GS, 48-50T low sprocket, 39T capacity
Cassette CS-LG700-11 11-50T (or CS-LG400-11 11-50T) LINKGLIDE
Chain CN-LG500, 126 links, quick link
Crankset (optional) FC-U6030-1 40T/170 mm or 42T/172.5 mm; or FC-U6000-1 170 / 175 mm, 30 / 32 / 40 / 42T
Bottom bracket (optional) BB-MT501, 68/73 mm threaded
Rotors (optional) RT-CL700 Center Lock, 140 / 160 / 180 / 203 mm
Freehub Shimano HG spline
SKU SHM-U6030-1x11-DROP-GROUP
Brand Shimano
