VelectriX Ascent 24 eMTB for Kids and Small Riders
SKU code: VLX-VXF1A24SV

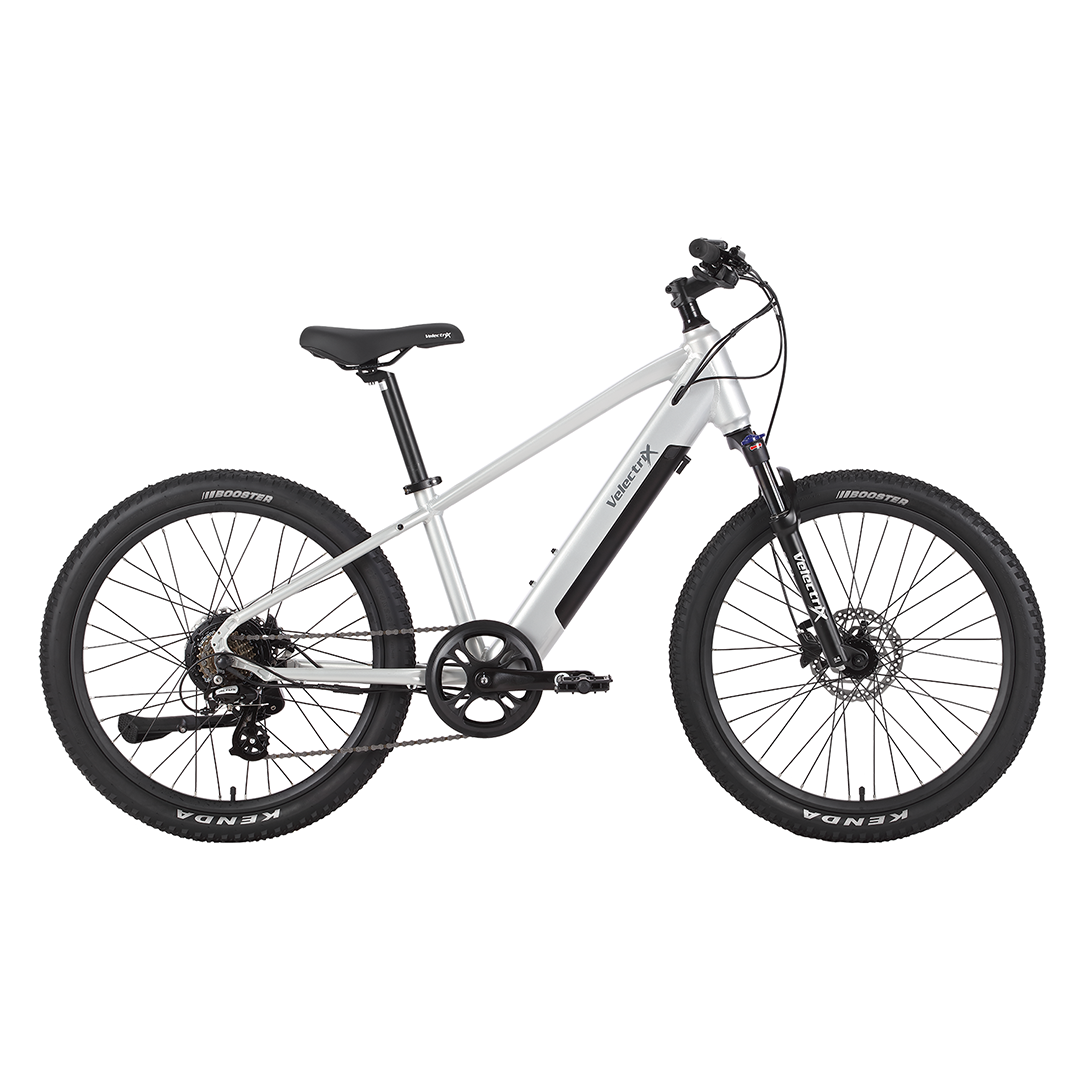

The Ascent 24 is the smallest bike in the Ascent family, built on 24" wheels for kids and very small adults. It gives younger riders a proper hub-drive eMTB, with suspension and hydraulic brakes, so they can keep up on rail trails and mild off-road rides.
- Sized for smaller riders: an Extra-small aluminium mountain bike frame on 24" double-wall wheels.
- Gentle, predictable assist: a VelectriX RX1 rear hub motor (250 W, 36 V, 45 Nm) with a cadence sensor and 4 assist levels.
- Up to 50 km per charge: from a 36 V, 378 Wh Reention Bee battery.
- Grip and comfort: a VelectriX suspension fork with 80 mm travel and Kenda Booster 24" x 2.2" tyres.
- Easy control: Shimano 7-speed gearing and Shimano MT200 hydraulic disc brakes.
Road legal, pedal-assist only
The motor is 250 W, it only assists while the rider pedals, there is no throttle, and assistance stops at 25 km/h. The Ascent 24 is built to EN15194 and is road legal in all Australian states and territories.
Sizing
The Ascent 24 comes in Extra-small, in Silver, for riders 130–155 cm. It weighs 20.9 kg including the battery and is rated for a 110 kg rider plus 25 kg of luggage on a rear rack (optional accessory).
Tune Cycles in Marrickville, Sydney, can set up the Ascent 24 for its rider and look after its servicing.
VelectriX warranty, from the date of purchase:
- Frame: 5 years against manufacturing defects in materials and workmanship.
- Motor, battery and motor controller: 2 years.
- Battery charger, display, wiring looms, pedal-assist sensor and gear-shift sensor: 1 year.
- Fork, stem, handlebar, headset, seatpost, saddle, brakes, bottom bracket, crankset, pedals, rims, spokes, hubs, derailleur, shifter and rear rack: 1 year.
Wear items aren't covered: tyres and tubes, kickstand, mudguards, lights, grips, brake pads and rotors, chainrings, cassette, chain and gear cables. A battery that keeps at least 60% of its capacity within 2 years is considered normal ageing. The frame is rated for a 110 kg rider plus 25 kg of luggage. The warranty covers the original purchaser of a bike bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase, and claims go through that dealer.
- VelectriX RX1 rear hub motor, 250 W, 45 Nm, cadence sensor
- Reention Bee battery, 36 V, 378 Wh (10.5Ah)
- Kingmeter KM3209 display
- Alloy MTB bar, 680 mm wide
- 20.9 kg including battery, kickstand included
| Colour | Silver |
|---|---|
| Frame size | Extra Small (130-155cm) |
| Frame | Aluminium mountain bike frame |
| Fork | VelectriX suspension fork, 80mm travel |
| Brakes | Shimano MT200 hydraulic disc brakes |
| Gears | Shimano 7 speed |
| Wheels | Alloy double wall 24", 36 hole, 13 gauge with stainless steel black spokes |
| Tyres | Kenda Booster 24" x 2.2" |
| Handlebars | Alloy MTB, 31.8mm clamp, 680mm wide |
| Stem | Alloy Promax, 80mm extension |
| Seat Post | 30.9mm x 300m quick release |
| Motor | VelectriX RX1, 250 watt, 36 volt, rear hub drive motor |
| Power Output | 45 Nm torque |
| Max Speed | 25 km/h |
| Drive Type | Cadence sensor |
| Drive Modes | 4 levels of assistance, low to high |
| Display | Kingmeter KM3209 |
| Battery | Reention Bee 378 watt hours (10.5Ah), 36 volt |
| Max Distance | Up to 50 km per full charge |
| Charger | Smart charger, 3 amp, 36 volt |
| Charge Time | 5 hour maximum |
| Included | Kickstand |
| Bike Weight | 20.9 kg including battery |
| Battery Weight | 2.6 kg |
| Bike Carrying Capacity | 110 kg rider weight + 25 kg luggage on rear rack (optional accessory) |
| Owner's manual | VelectriX manual (PDF) |
| VelectriX code | VXF1A24SV |
| SKU | VLX-VXF1A24SV |
| Brand | VelectriX |
| Shipping Weight | 26.9000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.800m |
| Shipping Length | 1.450m |
