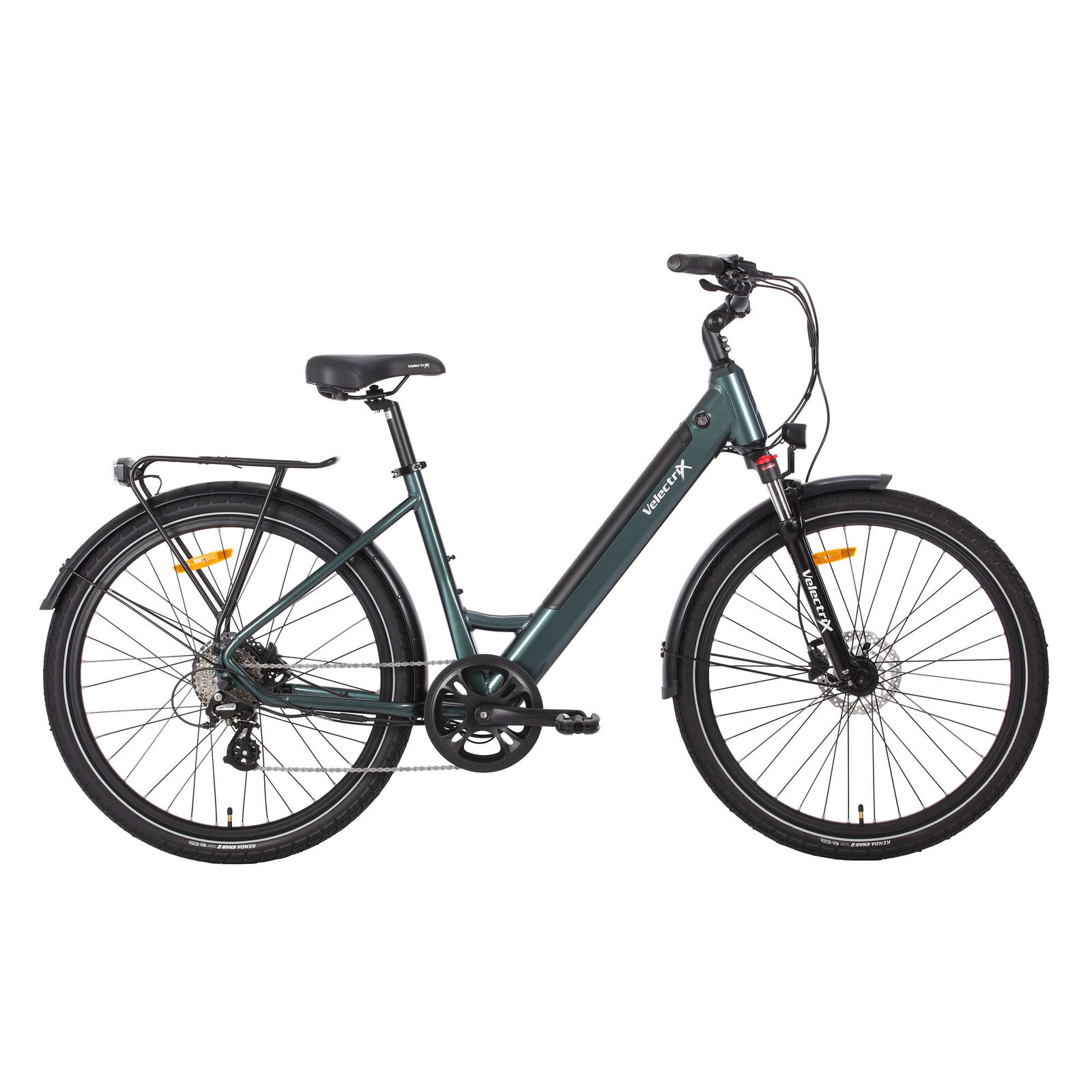

The Urban ST is set up for commuting from the day you collect it. A low step-through frame, a suspension fork and puncture-resistant tyres make it an easy daily ride, and the rack, mudguards and lights are already on the bike.

  • Fewer flats: Kenda Khan II 27.5" x 2.1" tyres with K-Shield puncture-resistant casing and a reflective strip.
  • Smoother over rough roads: a VelectriX suspension fork with 60 mm travel, plus a lockout for smooth stretches.
  • Carries the shopping: the rear rack takes up to 25 kg, with mudguards, integrated front and rear lights and a kickstand as standard.
  • Steady hub-drive assist: a Bafang G120 rear hub motor (250 W, 45 Nm) with 5 assist levels from 10 to 25 km/h.
  • Up to 50 km per charge: from a 36 V, 417 Wh Reention Mini Eel battery.
  • Dependable gears and brakes: Shimano Altus 8-speed (11-32T) and Shimano MT200 hydraulic discs on 160 mm rotors.

Road legal and simple to ride

The Urban ST is pedal-assist only with no throttle, and its 250 W motor stops assisting at 25 km/h. It is built to EN15194, so it is road legal in all Australian states and territories.

Sizing

Every size comes in Green: Extra-small for riders 150–165 cm, Small for 160–175 cm and Medium for 175 cm and taller. It weighs 24.5 kg including the battery and is rated for a 110 kg rider plus 25 kg on the rack.

Tune Cycles in Marrickville, Sydney, can set up your Urban ST and keep it commuting with regular servicing.

VelectriX warranty, from the date of purchase:

  • Frame: 5 years against manufacturing defects in materials and workmanship.
  • Motor, battery and motor controller: 2 years.
  • Battery charger, display, wiring looms, pedal-assist sensor and gear-shift sensor: 1 year.
  • Fork, stem, handlebar, headset, seatpost, saddle, brakes, bottom bracket, crankset, pedals, rims, spokes, hubs, derailleur, shifter and rear rack: 1 year.

Wear items aren't covered: tyres and tubes, kickstand, mudguards, lights, grips, brake pads and rotors, chainrings, cassette, chain and gear cables. A battery that keeps at least 60% of its capacity within 2 years is considered normal ageing. The frame is rated for a 110 kg rider plus 25 kg of luggage. The warranty covers the original purchaser of a bike bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase, and claims go through that dealer.

  • Aluminium low step-through frame
  • Bafang G120 rear hub motor, 45 Nm, cadence sensor
  • Kingmeter KM3209 LCD display
  • Alloy cruiser bar, 60 mm rise, 35° back sweep, 680 mm wide
  • 24.5 kg including battery
ColourGreen
Frame sizesExtra Small (150cm to 165cm), Small (160cm to 175cm), Medium (175cm+)
FrameAluminium low step through frame
ForkVelectriX suspension fork, 60mm travel with lockout
BrakesShimano MT200 hydraulic disc brakes, 160mm rotors
GearsShimano Altus 8 speed, 11-32T cassette
WheelsAlloy double wall 27.5", 36 hole, 13 gauge with stainless steel black spokes
TyresKenda Khan II, 27.5" x 2.1" with K-Shield puncture resistant casing and reflective strip
HandlebarsAlloy cruiser handlebar, 31.8mm clamp, 60mm rise, 35 degree back sweep, 680mm wide
StemAlloy 31.8mm clamp, 65mm extension
Seat PostAlloy 300mm x 30.9mm
MotorBafang G120, 250 watt, 36 volt, rear hub motor
Power Output45 Nm torque
Max Speed25 km/h
Drive TypeCadence sensor
Drive Modes5 levels of assistance, slow to fast (10 km/h to 25 km/h)
DisplayKingmeter KM3209 - LCD display
BatteryReention Mini Eel 417 watt hour (11.6Ah), 36 volt
Max DistanceUp to 50 km per full charge
ChargerSmart charger, 3 amp, 36 volt
Charge Time5 hour maximum
IncludedKickstand, rear rack, mudguards, integrated front and rear lights
Bike Weight24.5 kg including battery
Battery Weight2.5 kg
Bike Carrying Capacity110 kg rider weight + 25 kg luggage on rear rack
Owner's manualVelectriX manual (PDF)
SKU VLX-P-URBAN-ST
Brand VelectriX
Shipping Weight 30.5000kg
Shipping Width 0.300m
Shipping Height 0.850m
Shipping Length 1.600m
