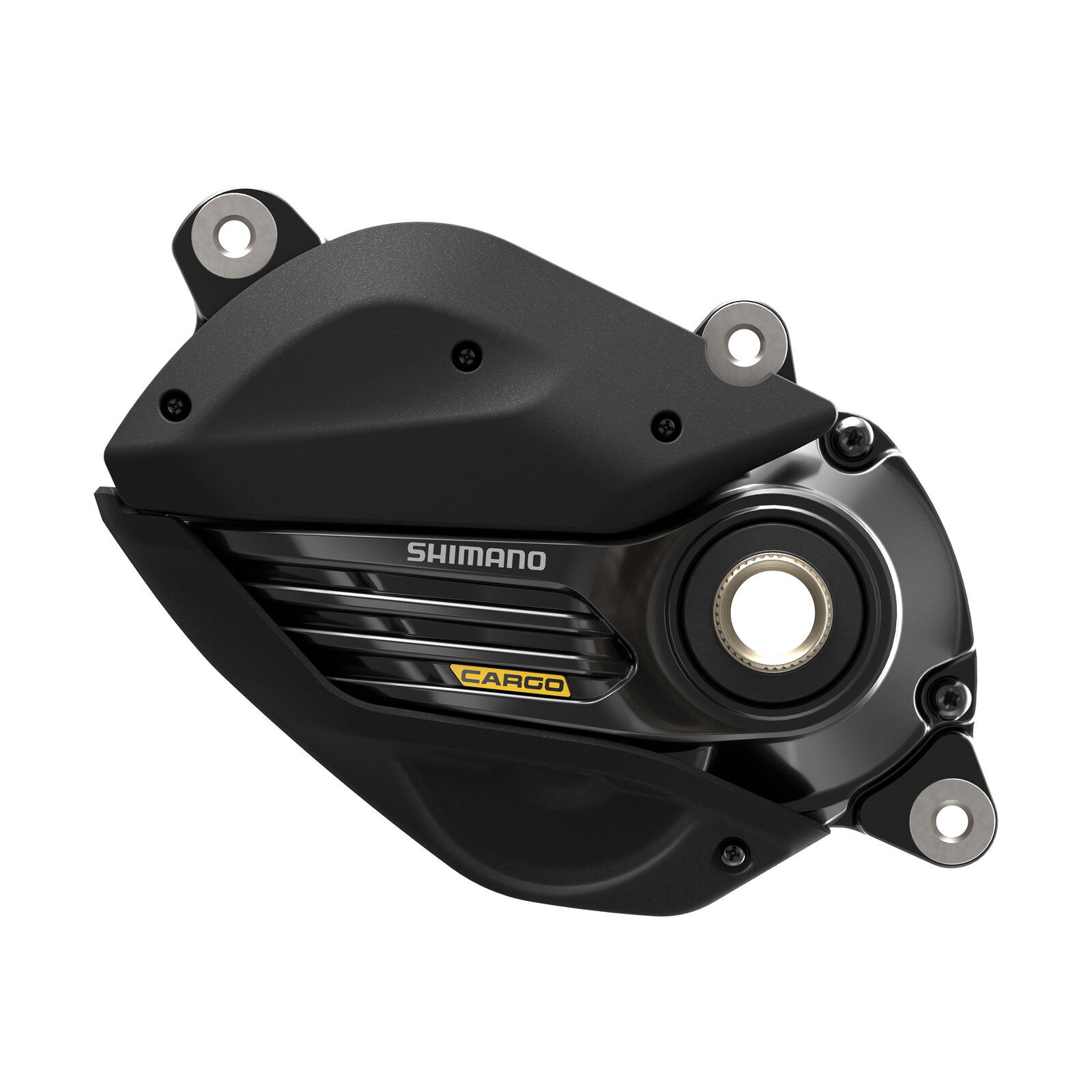

The Shimano STEPS DU-EP801-CRG is the second-generation EP8 drive unit purpose-built for e-cargo bikes. With 85Nm of torque and specially tuned cargo firmware, it delivers instant, full-power assist from the very first pedal stroke — making school runs, shopping trips, and loaded commutes up hills feel effortless. If you're building or upgrading a cargo e-bike, this is the motor the system was designed around.

Highlights

• Cargo-tuned firmware: Reaches full output almost immediately, giving you the quick, confident starts and smooth climbing essential for loaded cargo bikes.
• 85Nm sustained torque: Delivers consistent, powerful assist whether you're carrying kids, groceries, or a full day's haul.
• Five assist modes: ECO, NORMAL, TRAIL, HIGH, and BOOST modes cover every riding scenario, with FINE-TUNE mode offering up to 15 customisable assist characters beyond the defaults.
• Two personalised rider profiles: Create and switch between two custom profiles via the E-TUBE PROJECT Cyclist app — ideal for sharing a cargo bike between riders.
• Di2 integration: Pairs with Shimano Di2 internal geared hubs and rear derailleurs for intelligent auto-shifting, start-mode gear drop, and torque-responsive gear changes.
• Walk Assist: Built-in walk assist mode makes manoeuvring a heavily laden cargo bike on foot simple and safe.
• Safe-way-home function: Reserves battery power so you're never stranded mid-journey.
• E-TUBE connectivity: Supports over-the-air firmware updates and full customisation via the E-TUBE PROJECT Cyclist smartphone app.

Motor & Electrical

The DU-EP801-CRG uses a brushless motor in a mid-ship position, rated at 250W continuous power and operating at 36V DC. Integrated sensors — torque, crank arm position, and cadence — work together to deliver smooth, natural-feeling assist that responds precisely to your pedalling input. The unit supplies 12V DC power to front and rear lighting (up to 2A total) and includes three SD300 ports, one light terminal, and two ports for additional electrical devices.

Design & Build

Weighing 2.7kg, the DU-EP801-CRG is built to handle the sustained demands of cargo bike use: heavier loads, longer distances, and frequent starts from a standstill. The motor housing is engineered for effective heat dissipation to maintain consistent performance on long climbs or back-to-back runs. A chain case and chain device are both compatible, accommodating the enclosed drivetrain setups common on cargo bikes.

Compatibility & Fit

Compatible with 24mm narrow spindle cranks. Suitable for wheel sizes from 1300–3000mm. Disc brake only. Works within the Shimano STEPS EP8 EP801 Cargo system, integrating with Shimano BT-EP801 batteries, SC-EP801 displays, and the full EP8 component range. Di2 compatible with Shimano internal geared hubs (5-speed and 8-speed auto-shift supported) and rear derailleurs. Rated for a maximum speed of 25km/h (EU/AU assist limit). Verify frame compatibility for motor mount and cable routing before purchase.
