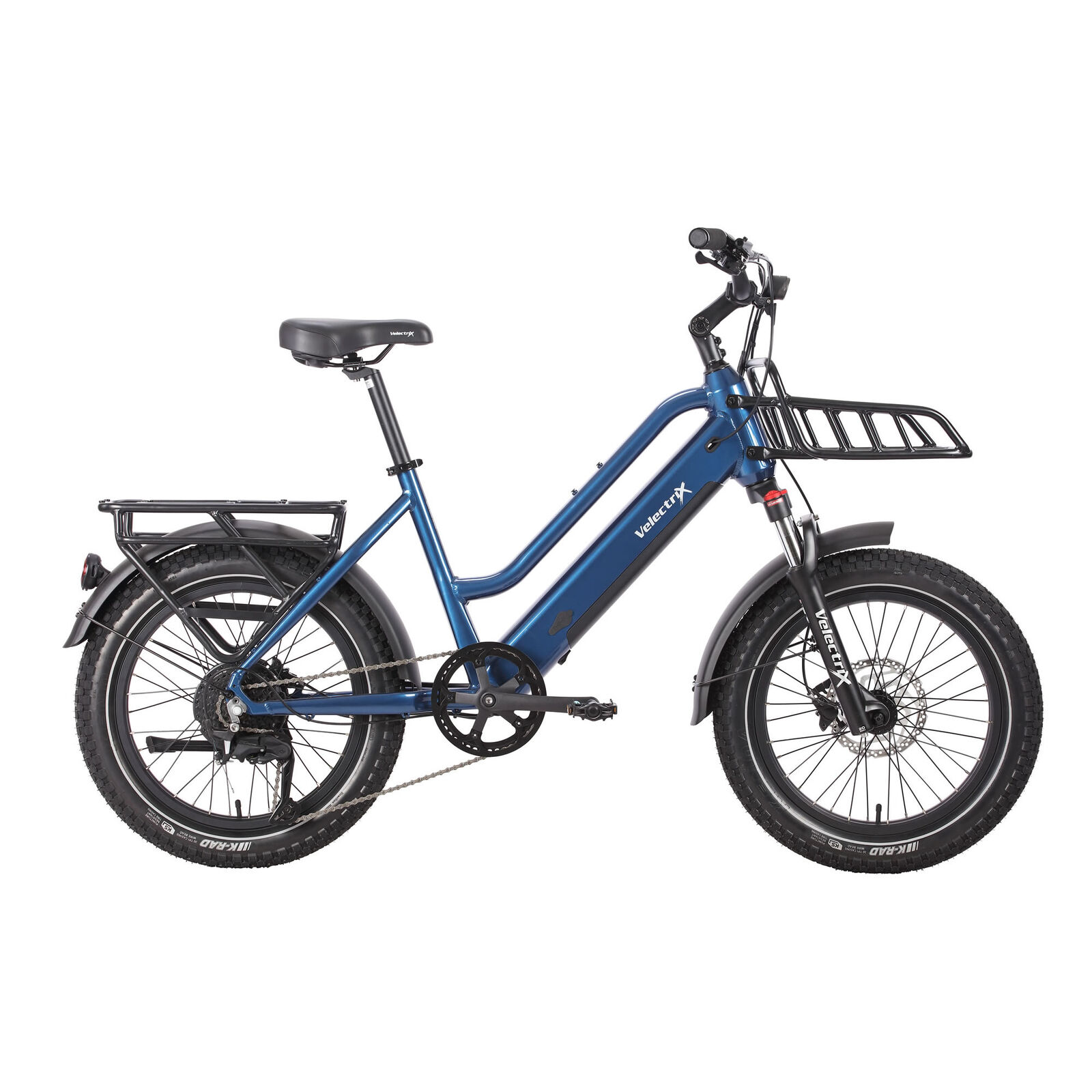

The SUV is the load-carrier of the VelectriX range: 20" x 3.3" fat tyres, a step-through frame and racks front and rear, with the highest rated carrying capacity of the VelectriX bikes we list. It is built for shopping runs, commuting and weekend trips on sealed roads, gravel and dirt.

  • Carries the lot: rated for a 125 kg rider plus 35 kg on the rear rack and 20 kg on the front rack, 180 kg in total.
  • Fat-tyre stability: Kenda K-Rad 20" x 3.3" tyres with K-Shield puncture-resistant casing and a reflective strip.
  • Cushioned front end: a VelectriX fat bike suspension fork with 80 mm travel and lockout.
  • Biggest battery in this line-up: a 36 V, 540 Wh Greenway battery gives up to 75 km per charge, driving a Bafang G062 rear hub motor (250 W, 45 Nm).
  • Brakes and gears for heavy loads: Shimano MT200 hydraulic discs on 180 mm rotors, with Shimano CUES 9-speed (11-36T).
  • Charge your phone on the go: the Bafang TFT display has a USB-C charging port.

Road legal, pedal-assist only

The SUV is a 250 W pedal-assist eBike with no throttle, and assistance stops at 25 km/h. It is built to EN15194 and road legal in all Australian states and territories.

Sizing and what is included

The SUV is one size, suiting riders 155–188 cm, in Blue or Grey. At 32.1 kg it is a solid bike, and it comes with front and rear racks, mudguards, integrated front and rear lights and a kickstand.

Tune Cycles in Marrickville, Sydney, can set up your SUV and keep it rolling with regular servicing.

VelectriX warranty, from the date of purchase:

  • Frame: 5 years against manufacturing defects in materials and workmanship.
  • Motor, battery and motor controller: 2 years.
  • Battery charger, display, wiring looms, pedal-assist sensor and gear-shift sensor: 1 year.
  • Fork, stem, handlebar, headset, seatpost, saddle, brakes, bottom bracket, crankset, pedals, rims, spokes, hubs, derailleur, shifter and rear rack: 1 year.

Wear items aren't covered: tyres and tubes, kickstand, mudguards, lights, grips, brake pads and rotors, chainrings, cassette, chain and gear cables. A battery that keeps at least 60% of its capacity within 2 years is considered normal ageing. The frame is rated for a 125 kg rider plus 55 kg of luggage. The warranty covers the original purchaser of a bike bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase, and claims go through that dealer.

  • Bafang G062 rear hub motor, 250 W, 45 Nm
  • Greenway ZZ027 battery, 36 V, 540 Wh (15Ah)
  • Bafang DP C080.C TFT display with USB-C port
  • Alloy riser bar, 95 mm rise, adjustable stem
  • Aluminium step-through frame, 32.1 kg
ColoursBlue, Grey
Frame sizeOne size (rider height 155cm to 188cm)
FrameAluminium step through frame
ForkVelectriX fat bike suspension fork, 80mm travel with lockout
BrakesShimano MT200 hydraulic disc brakes, 180mm rotors
GearsShimano Cues 9 speed, 11T-36T cassette
WheelsAlloy 20", 36 hole, 13 guage with stainless steel black spokes
TyresKenda K-Rad 20" x 3.3" with K-Shield puncture resistant casing and reflective strip
HandlebarsAlloy riser handlebar, 31.8mm clamp, 95mm rise, 15 degree back sweep, 680mm wide
StemAlloy adjustable stem, 31.8mm clamp, 90mm extension
Seat PostAlloy 300mm x 30.9mm
MotorBafang G062, 250 watt, 36 volt, rear hub motor
Power Output45 Nm torque
Max Speed25 km/h
Drive TypeCadence sensor
Drive Modes5 levels of assistance, slow to fast (10 km/h to 25 km/h)
DisplayBafang DP C080.C - TFT display with USB-C charging port
BatteryGreenway ZZ027, 540 watt hour (15Ah), 36 volt
Max DistanceUp to 75 km per full charge
ChargerSmart charger, 3 amp, 36 volt
Charge Time6 hour max charge time
IncludedKickstand, rear rack, front rack, mudguards, integrated front and rear lights
Bike Weight32.1 kg
Battery Weight3 kg
Bike Carrying Capacity125kgs rider weight + 35kgs luggage on rear rack + 20kgs luggage on front rack
Owner's manualVelectriX manual (PDF)
SKU VLX-P-SUV
Brand VelectriX
Shipping Weight 38.1000kg
Shipping Width 0.400m
Shipping Height 0.950m
Shipping Length 1.750m
