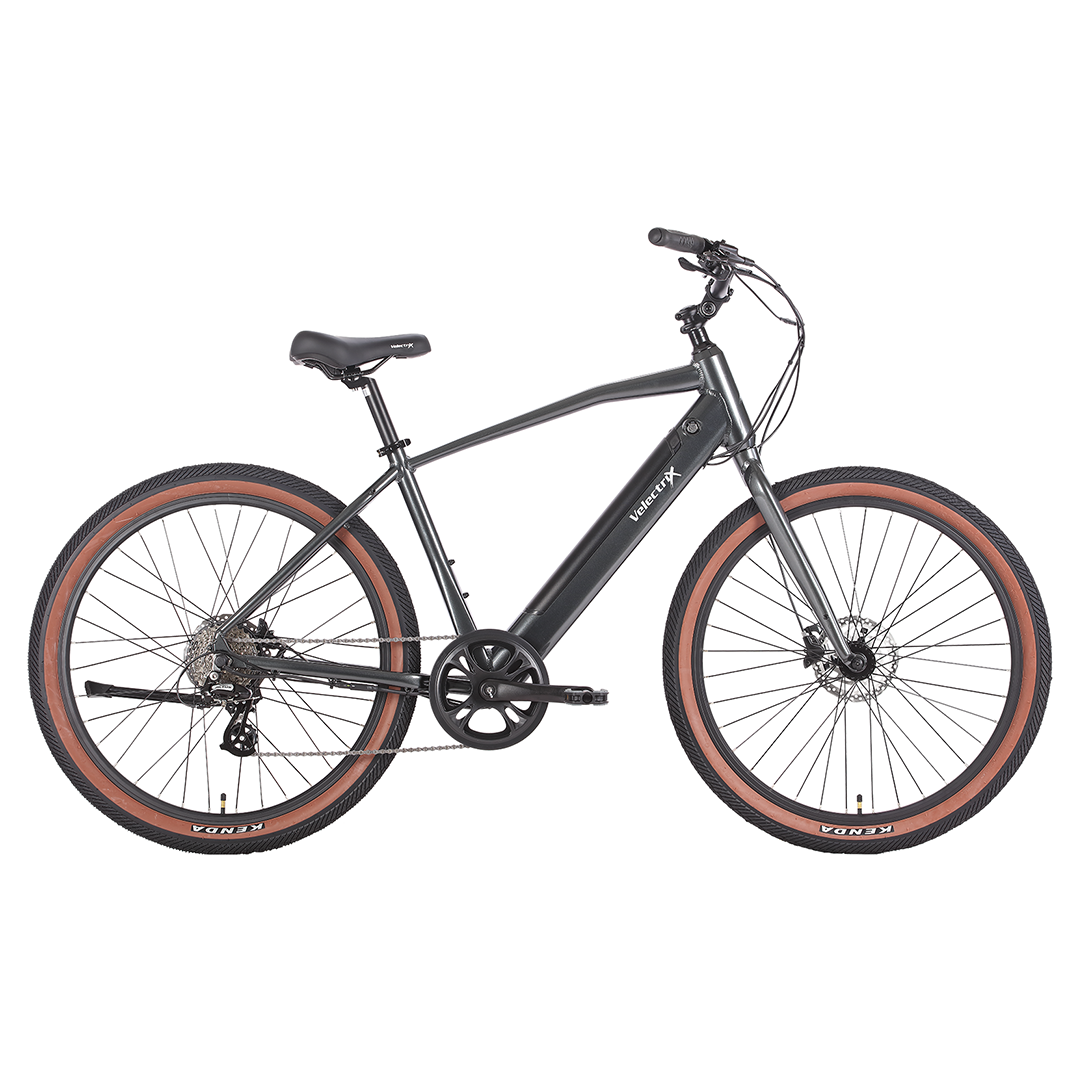

VelectriX Cruiser Step-Over eBike – Medium
SKU code: VLX-VXF1CR47GY
The Cruiser puts the laid-back cruiser ride on a step-over aluminium frame, sized Medium and Large for taller riders. You sit upright behind wide, swept-back bars while a Bafang hub motor takes the sting out of headwinds and gentle climbs.
- Fit you can fine-tune: an adjustable stem (75 mm extension) and a quick-release 30.9 mm seat post make it easy to dial in your position.
- Hub-drive simplicity: a Bafang G120 rear hub motor (250 W, 36 V, 45 Nm) with a cadence sensor and 5 assist levels from 10 to 25 km/h.
- Up to 50 km per charge: from the integrated Reention Mini Eel battery, 36 V and 417 Wh.
- Gears for flats and hills: a Shimano Altus 8-speed drivetrain.
- Confident braking: Shimano MT200 hydraulic disc brakes.
- Cushioned rolling: Kenda Kwick 27.5" x 2.2" brown-wall tyres on 36-hole double-wall rims.
Road legal and bike-path ready
Assistance comes only while you pedal, there is no throttle, and the 250 W motor stops helping at 25 km/h. The Cruiser meets EN15194 and is road legal in all Australian states and territories.
Sizing
Medium suits riders 165–180 cm and Large suits riders 180 cm and taller, both in Grey. It weighs 21 kg including the battery and is rated for a 110 kg rider plus 25 kg of luggage on a rear rack (optional accessory).
Tune Cycles in Marrickville, Sydney, can set up your Cruiser and keep it running sweetly with regular servicing.
VelectriX warranty, from the date of purchase:
- Frame: 5 years against manufacturing defects in materials and workmanship.
- Motor, battery and motor controller: 2 years.
- Battery charger, display, wiring looms, pedal-assist sensor and gear-shift sensor: 1 year.
- Fork, stem, handlebar, headset, seatpost, saddle, brakes, bottom bracket, crankset, pedals, rims, spokes, hubs, derailleur, shifter and rear rack: 1 year.
Wear items aren't covered: tyres and tubes, kickstand, mudguards, lights, grips, brake pads and rotors, chainrings, cassette, chain and gear cables. A battery that keeps at least 60% of its capacity within 2 years is considered normal ageing. The frame is rated for a 110 kg rider plus 25 kg of luggage. The warranty covers the original purchaser of a bike bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase, and claims go through that dealer.
- Aluminium step-over cruiser frame with rigid aluminium fork
- Alloy cruiser bar, 680 mm wide, 60 mm rise, 35° back sweep
- Reention Mini Eel battery, 36 V, 417 Wh (11.6Ah)
- Kingmeter KM3209 LCD display
- 21 kg including battery, kickstand included
| Colour | Grey |
|---|---|
| Frame sizes | Medium (165cm-180cm), Large (180cm+) |
| Frame | Aluminium, step-over cruiser frame |
| Fork | Aluminium rigid fork |
| Brakes | Shimano MT200 hydraulic disc brakes |
| Gears | Shimano Altus 8 speed |
| Wheels | Alloy double wall 27.5", 36 hole, 13 gauge with stainless steel black spokes |
| Tyres | Kenda Kwick 27.5" x 2.2" with brown wall |
| Handlebars | Alloy cruiser handlebar, 31.8mm clamp, 60mm rise, 35 degree back sweep, 680mm wide |
| Stem | Adjustable stem, 31.8mm clamp, 75mm extension |
| Seat Post | Alloy 300mm x 30.9mm quick release |
| Motor | Bafang G120, 250 watt, 36 volt, rear hub motor |
| Power Output | 45 Nm torque |
| Max Speed | 25 km/h |
| Drive Type | Cadence sensor |
| Drive Modes | 5 levels of assistance, slow to fast (10 km/h to 25 km/h) |
| Display | Kingmeter KM3209 - LCD display |
| Battery | Reention Mini Eel, 36V, 11.6Ah (417Wh) |
| Max Distance | Up to 50 km per full charge |
| Charger | Smart charger, 3 amp, 36 volt |
| Charge Time | 5 hour maximum |
| Included | Kickstand |
| Bike Weight | 21 kg including battery |
| Battery Weight | 2.5 kg |
| Bike Carrying Capacity | 110 kg rider weight + 25 kg luggage on a rear rack (optional accessory) |
| Owner's manual | VelectriX manual (PDF) |
| SKU | VLX-P-CRUISER |
| Brand | VelectriX |
| Shipping Weight | 27.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.850m |
| Shipping Length | 1.600m |
