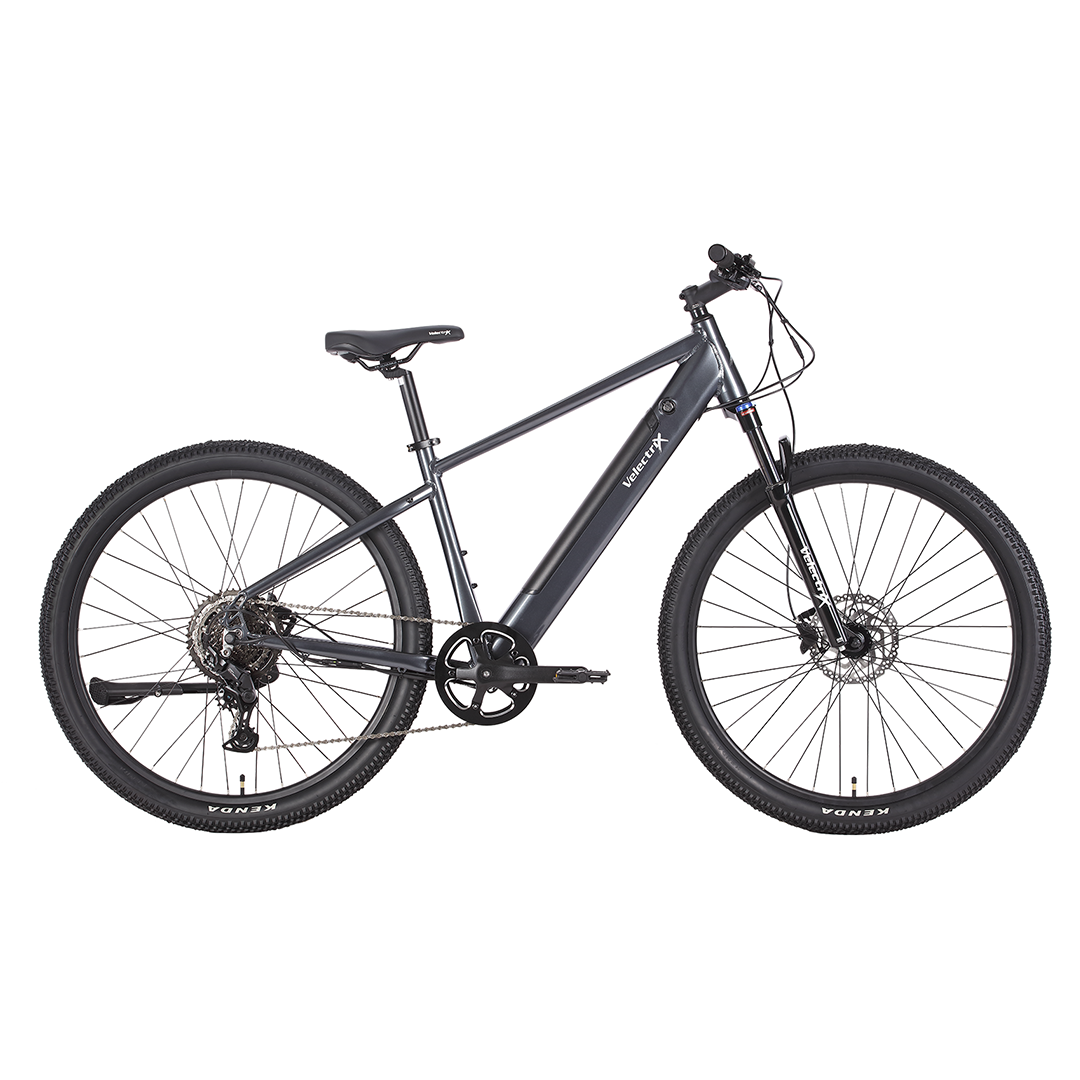

VelectriX Ascent 29 Hub-Drive eMTB – Medium
SKU code: VLX-VXF1A2945CH
The Ascent 29 is the full-size hub-drive Ascent, rolling on 29" wheels with Medium and Large frames for adult riders. Big wheels, a 100 mm fork and Shimano CUES gearing make it a steady, comfortable choice for rail trails and mild off-road rides, and it is just as at home on the weekday commute.
- Rolls over more: 29" double-wall wheels with Kenda Aptor 29" x 2.35" tyres.
- Soaks up bumps: a VelectriX suspension fork with 100 mm travel.
- Simple hub-drive assist: a Bafang G120 rear hub motor (250 W, 36 V, 45 Nm) with a cadence sensor and 5 assist levels.
- Up to 50 km per charge: from a 36 V, 417 Wh Reention Mini Eel battery.
- Smooth shifting: Shimano CUES 9-speed with a shift sensor.
- Consistent braking: Shimano MT200 hydraulic disc brakes.
Road legal, pedal-assist only
The Ascent 29 is built to EN15194 and is road legal in all Australian states and territories. Its 250 W motor helps only while you pedal, there is no throttle, and assistance stops at 25 km/h.
Sizing
Both sizes come in Charcoal: Medium for riders 165–180 cm and Large for 180–195 cm. It weighs 23.5 kg including the battery and is rated for a 110 kg rider plus 25 kg of luggage on a rear rack (optional accessory).
Tune Cycles in Marrickville, Sydney, can set up your Ascent 29 and service it between adventures.
VelectriX warranty, from the date of purchase:
- Frame: 5 years against manufacturing defects in materials and workmanship.
- Motor, battery and motor controller: 2 years.
- Battery charger, display, wiring looms, pedal-assist sensor and gear-shift sensor: 1 year.
- Fork, stem, handlebar, headset, seatpost, saddle, brakes, bottom bracket, crankset, pedals, rims, spokes, hubs, derailleur, shifter and rear rack: 1 year.
Wear items aren't covered: tyres and tubes, kickstand, mudguards, lights, grips, brake pads and rotors, chainrings, cassette, chain and gear cables. A battery that keeps at least 60% of its capacity within 2 years is considered normal ageing. The frame is rated for a 110 kg rider plus 25 kg of luggage. The warranty covers the original purchaser of a bike bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase, and claims go through that dealer.
- Bafang G120 rear hub motor, 250 W, 45 Nm, cadence sensor
- Reention Mini Eel battery, 36 V, 417 Wh (11.6Ah)
- Kingmeter KM3209 display
- Alloy MTB bar, 680 mm wide
- 23.5 kg including battery, kickstand included
| Colour | Charcoal |
|---|---|
| Frame sizes | Medium (165cm to 180cm), Large (180cm to 195cm) |
| Frame | Aluminium mountain bike frame |
| Fork | VelectriX suspension fork, 100mm travel |
| Brakes | Shimano MT200 hydraulic disc brakes |
| Gears | Shimano Cues 9 speed |
| Wheels | Alloy double wall 29", 36 hole, 13 gauge with stainless steel black spokes |
| Tyres | Kenda Aptor 29" x 2.35" |
| Handlebars | Alloy MTB, 31.8mm clamp, 680mm wide |
| Stem | Alloy Promax, 90 mm extension |
| Seat Post | 30.9mm x 300m quick release |
| Motor | Bafang G120, 250 watt, 36 volt, rear hub drive motor |
| Power Output | 45 Nm torque |
| Max Speed | 25 km/h |
| Drive Type | Cadence sensor |
| Drive Modes | 5 levels of assistance, low to high |
| Display | Kingmeter KM3209 |
| Battery | Reention Mini Eel, 36V, 11.6Ah (417Wh) |
| Max Distance | Up to 50 km per full charge |
| Charger | Smart charger, 3 amp, 36 volt |
| Charge Time | 5 hour maximum |
| Included | Kickstand |
| Bike Weight | 23.5 kg including battery |
| Battery Weight | 2.6 kg |
| Bike Carrying Capacity | 110 kg rider weight + 25 kg luggage on rear rack (optional accessory) |
| Owner's manual | VelectriX manual (PDF) |
| SKU | VLX-P-ASCENT-29 |
| Brand | VelectriX |
| Shipping Weight | 29.5000kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.900m |
| Shipping Length | 1.650m |
