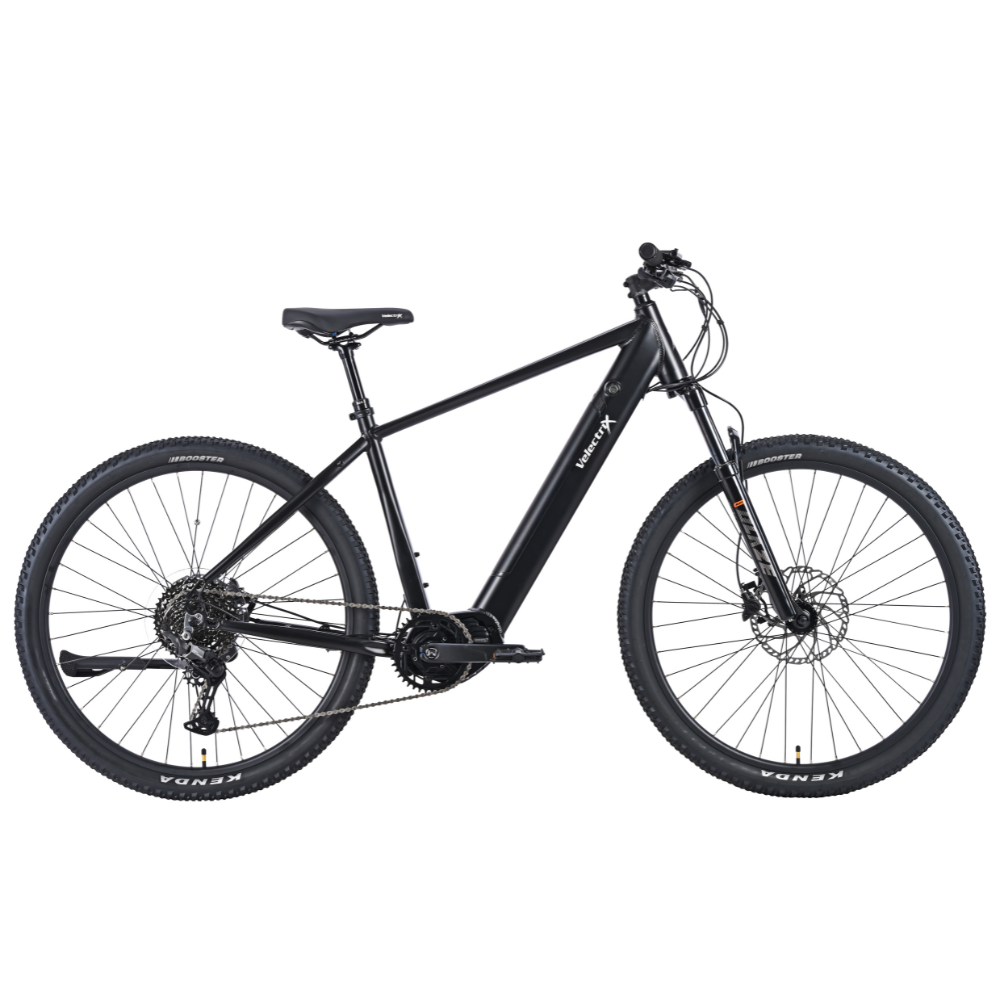

VelectriX Ascent X Mid-Drive eMTB – Medium
SKU code: VLX-VXF1AX2945BK
The Ascent X tops the Ascent line. Its Bafang M510 mid-drive makes 95 Nm, the most torque of any VelectriX eBike we list, and it sits in a 29" aluminium frame with a 120 mm fork and a dropper post. Pick it if your rides take in steep climbs, rail trails and mild off-road tracks.
- Serious climbing help: the Bafang M510 mid-drive (250 W, 36 V) delivers 95 Nm through a torque sensor that matches assist to your effort.
- Go further: a 36 V, 504 Wh Reention Mini Eel battery gives up to 70 km per charge.
- More travel up front: an RST Blaze suspension fork with 120 mm travel.
- Dropper as standard: an Exaform hydraulic dropper post with 125 mm travel gets the saddle out of the way on descents.
- Grip and control: Kenda Booster 29" x 2.4" tyres, a 720 mm bar on a 50 mm stem, and Shimano MT200 hydraulic disc brakes.
- Ten gears: Shimano CUES 10-speed with a shift sensor.
Road legal, pedal-assist only
For all its torque, the Ascent X is a 250 W pedal-assist eBike with no throttle, and assistance stops at 25 km/h. It is built to EN15194 and road legal in every Australian state and territory.
Sizing
The Ascent X comes in Black: Medium for riders 165–180 cm and Large for 180–195 cm. It weighs 23.5 kg including the battery and is rated for a 110 kg rider plus 25 kg of luggage on a rear rack (optional accessory).
Tune Cycles in Marrickville, Sydney, can set up your Ascent X and keep the drivetrain and suspension in good order.
VelectriX warranty, from the date of purchase:
- Frame: 5 years against manufacturing defects in materials and workmanship.
- Motor, battery and motor controller: 2 years.
- Battery charger, display, wiring looms, pedal-assist sensor and gear-shift sensor: 1 year.
- Fork, stem, handlebar, headset, seatpost, saddle, brakes, bottom bracket, crankset, pedals, rims, spokes, hubs, derailleur, shifter and rear rack: 1 year.
Wear items aren't covered: tyres and tubes, kickstand, mudguards, lights, grips, brake pads and rotors, chainrings, cassette, chain and gear cables. A battery that keeps at least 60% of its capacity within 2 years is considered normal ageing. The frame is rated for a 110 kg rider plus 25 kg of luggage. The warranty covers the original purchaser of a bike bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase, and claims go through that dealer.
- Bafang M510 mid-drive motor, 250 W, 95 Nm, torque sensor
- Reention Mini Eel battery, 36 V, 504 Wh (14Ah)
- Up to 70 km per full charge
- Bafang DP C11.CAN LCD display
- 23.5 kg including battery, kickstand included
| Colour | Black |
|---|---|
| Frame sizes | Medium (165cm to 180cm), Large (180cm to 195cm) |
| Frame | Aluminium mountain bike frame |
| Fork | RST Blaze suspension fork, 120mm travel |
| Brakes | Shimano MT200 hydraulic disc brakes |
| Gears | Shimano Cues 10 speed |
| Wheels | Alloy double wall 29", 36 hole, 13 gauge with stainless steel black spokes |
| Tyres | Kenda Booster 29" x 2.4" |
| Handlebars | Alloy MTB, 31.8mm clamp, 720mm wide |
| Stem | Alloy Promax, 50 mm extension |
| Seat Post | Exaform hydraulic dropper seat post, 31.6mm x 395mm including 125mm travel |
| Motor | Bafang M510, 250 watt, 36 volt, mid drive motor |
| Power Output | 95 Nm torque |
| Max Speed | 25 km/h |
| Drive Type | Torque sensor |
| Drive Modes | 5 levels of assistance, low to high |
| Display | Bafang DP C11.CAN - LCD display |
| Battery | Reention Mini Eel, 36V, 14Ah (504Wh) |
| Max Distance | Up to 70 km per full charge |
| Charger | Smart charger, 3 amp, 36 volt |
| Charge Time | 5 hour maximum |
| Included | Kickstand, dropper seat post |
| Bike Weight | 23.5 kg including battery |
| Battery Weight | 2.6 kg |
| Bike Carrying Capacity | 110 kg rider weight + 25 kg luggage on rear rack (optional accessory) |
| Owner's manual | VelectriX manual (PDF) |
| SKU | VLX-P-ASCENT-X |
| Brand | VelectriX |
| Shipping Weight | 29.5000kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.900m |
| Shipping Length | 1.650m |
