Twenty-two hydraulic drop-bar gears with a wide 11-45 cassette

The CUES U6030 2x11 drop-bar groupset pairs ST-U6030 hydraulic DUAL CONTROL LEVERS and BR-U6030 calipers with the 11-speed RD-U6020, an 11-45T LINKGLIDE cassette and the FD-U6030 braze-on front derailleur. The optional cranks are 46-32T only: the 14-tooth ring gap plus the 34-tooth cassette range use exactly the RD-U6020's 48T capacity.

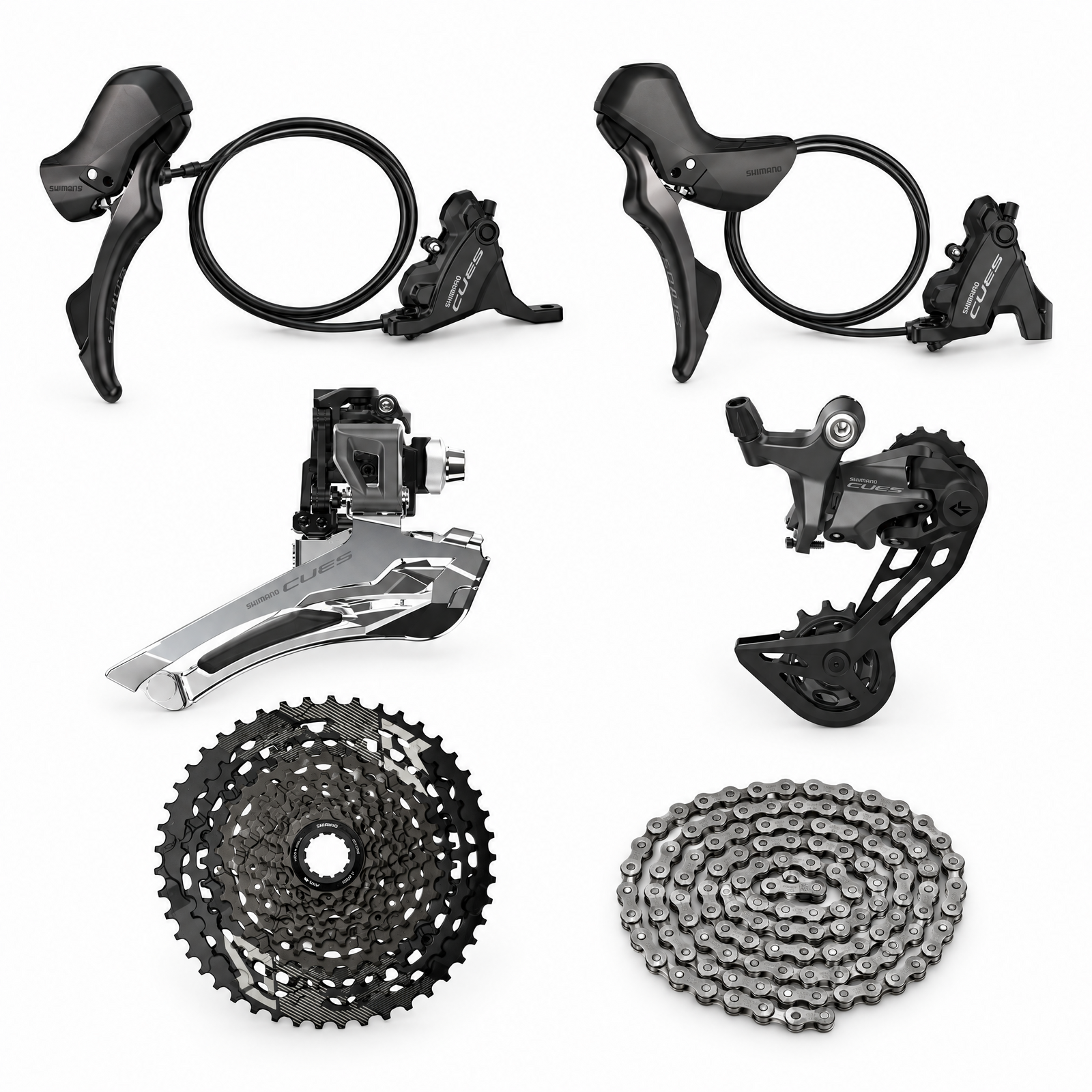

Kit includes

  • ST-U6030 right shift/brake lever with BR-U6030 front caliper and 1000 mm hose
  • ST-U6030-L left shift/brake lever (2x) with BR-U6030 rear caliper and 1700 mm hose
  • FD-U6030 front derailleur, braze-on, for 46-50T outer rings
  • RD-U6020 11-speed rear derailleur, SGS cage (45T, 48T capacity)
  • CS-LG700-11 LINKGLIDE cassette 11-45T (or CS-LG400-11 11-45T)
  • CN-LG500 LINKGLIDE chain

Options

  • FC-U8000-2 HOLLOWTECH II crankset 46-32T, 170 or 175 mm, or FC-U6030-2 46-32T, 170 or 172.5 mm
  • BB-MT501 threaded 68 mm bottom bracket
  • RT-CL700 Center Lock rotors (choose size)

The crank, bottom bracket and rotors are optional extras that start at 0, so e-bikes and bikes keeping their own parts are not charged for them. Every other part can be deselected if you already have it. Pick one cassette. The 50-34T FC-U6030-2 exceeds the derailleur's capacity with an 11-45 and is not offered here. Frames without a braze-on tab need a clamp adapter.

Tune Cycles supplies and fits Shimano CUES across Sydney. Choose your options above; if you are unsure what your frame takes, ask us before you order.

Every part in this kit is covered by Shimano's standard manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Shimano.

  • ST-U6030-R right hydraulic DUAL CONTROL LEVER with BR-U6030 flat-mount caliper, pre-bled with a 1000 mm hose (front brake)
  • ST-U6030-L left hydraulic DUAL CONTROL LEVER (2x front shifting) with BR-U6030 flat-mount caliper, pre-bled with a 1700 mm hose (rear brake)
  • FD-U6030 braze-on front derailleur for 46-50T outer chainrings (frames without a tab need a clamp adapter)
  • RD-U6020-SGS 11-speed rear derailleur, made for a 45T low sprocket with 48T total capacity — a 46-32T crank and the 11-45T cassette use it exactly
  • CS-LG700-11 LINKGLIDE 11-speed cassette, 11-45T (or the CS-LG400-11 11-45T), on a standard HG freehub body
  • CN-LG500 LINKGLIDE chain, 126 links, with quick link
  • Optional extras that start at 0: FC-U8000-2 HOLLOWTECH II crankset 46-32T in 170 or 175 mm, or FC-U6030-2 46-32T in 170 or 172.5 mm; BB-MT501 threaded bottom bracket, 68/73 mm, for HOLLOWTECH II cranks; RT-CL700 Center Lock rotors in 140, 160, 180 or 203 mm, up to two
  • LINKGLIDE cassette and chain: shift cleanly under load and outlast a conventional drivetrain, which suits e-bikes and hard-working commuters
  • Editable kit: deselect any part you already have and add only the extras your bike needs; the price follows the parts you keep
Brand Shimano
Series Shimano CUES U6030 (LINKGLIDE)
Drivetrain 2x11-speed
Handlebar Drop bar, 23.8-24.2 mm lever clamp
Brakes Hydraulic disc; BR-U6030 flat-mount calipers included, pre-bled
Levers ST-U6030-R (front caliper, 1000 mm hose) and ST-U6030-L 2x (rear caliper, 1700 mm hose)
Front derailleur FD-U6030, braze-on, 46-50T outer ring
Rear derailleur RD-U6020-SGS 11-speed, 45T low sprocket, 48T capacity
Cassette CS-LG700-11 11-45T (or CS-LG400-11 11-45T) LINKGLIDE
Chain CN-LG500, 126 links, quick link
Crankset (optional) FC-U8000-2 46-32T 170 / 175 mm, or FC-U6030-2 46-32T 170 / 172.5 mm
Bottom bracket (optional) BB-MT501, 68/73 mm threaded
Rotors (optional) RT-CL700 Center Lock, 140 / 160 / 180 / 203 mm
Freehub Shimano HG spline
SKU SHM-U6030-2x11-DROP-GROUP
