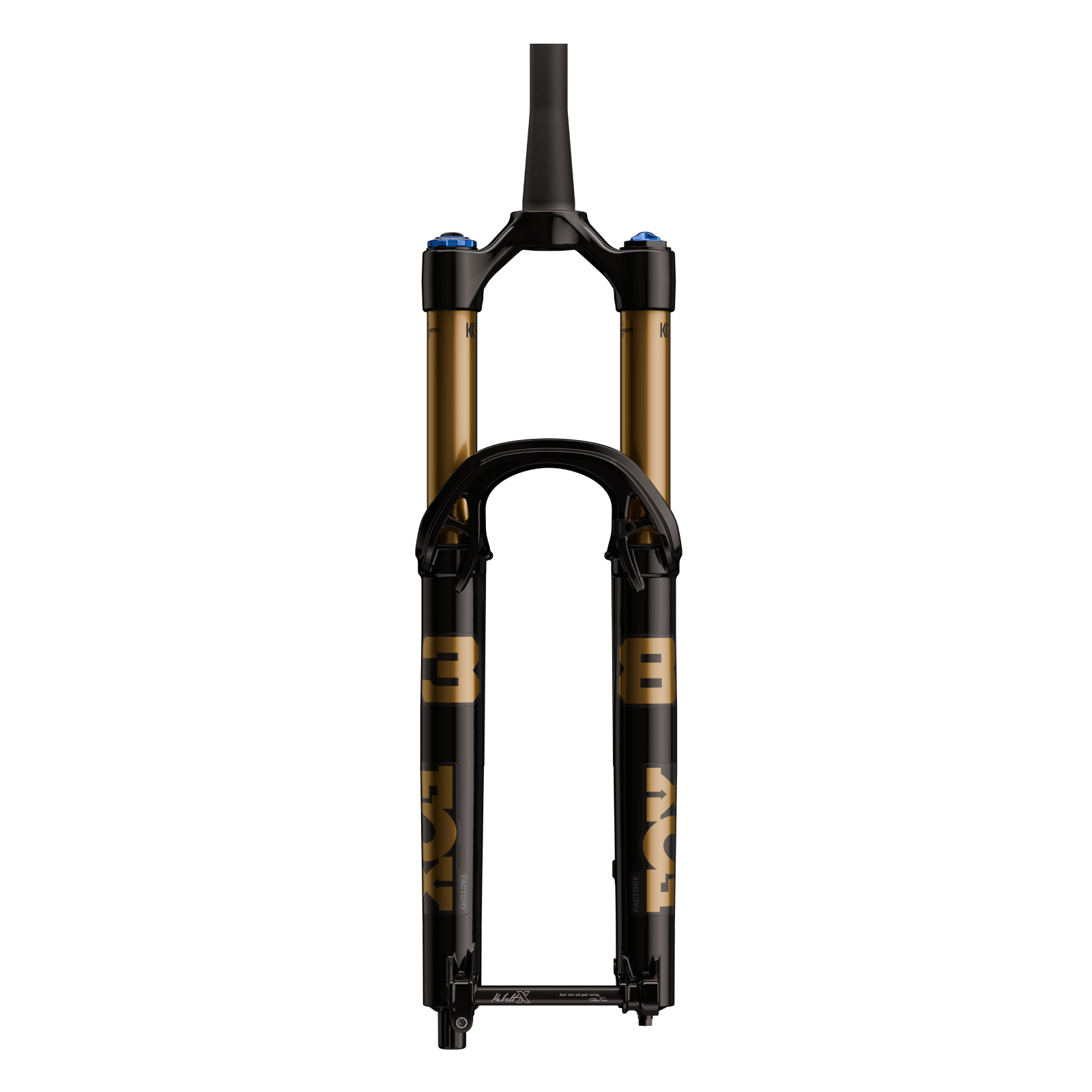

Fox 38 Factory GRIP X2 29in Enduro Fork (2027) – 160mm, Shiny Black
SKU code: RFX-FF91021416
New for 2027, the Fox 38 Factory adds the GlideCore air spring and 20mm more bushing overlap to the enduro fork Fox's World Cup athletes race.
Highlights
- New for 2027 with the FLOAT GlideCore air spring
- GRIP X2 damper with high- and low-speed compression and rebound
- 160mm, 170mm or 180mm of travel on a 29in, 44mm offset chassis
- 20mm more bushing overlap: about 9% more fore-aft stiffness and less friction
- Genuine Kashima Coat 38mm upper tubes
GRIP X2 and GlideCore
GRIP X2 is Fox's most adjustable descent-focused damper, with 8 clicks of high-speed compression, 18 of low-speed compression, 8 of high-speed rebound and 16 of low-speed rebound. It holds the fork higher in its travel and keeps the tyre tracking the ground for more cornering traction, with less rider fatigue. The FLOAT GlideCore air spring moves with the fork under dynamic load, and large cross-section O-rings control that motion and cut breakaway friction, for smoother suspension action.
38 chassis
Optimised for 160mm to 180mm of travel, the 38 is Fox's long-travel single-crown fork. Learning from Podium, Fox increased bushing overlap by 20mm, lifting fore-aft stiffness by about 9% while reducing friction under load at high speed, and the new arch improves torsional stiffness for steering precision. It has air channels, bleeders and a 4-point direct mount for Fox's optional 36/38 mud guard.
Fitting and Fox service
Fork installation is a separate workshop service and isn't included. As an authorised Fox service centre, our Marrickville workshop can fit the fork to your bike (steerer cut, crown race and star nut), set sag and damping for your weight and riding, and look after its scheduled Fox servicing from there.
Compatibility & fit
For 29in wheels with a 15 x 110mm Boost hub (Kabolt-X thru-axle) and a 1.5in tapered steerer. Brakes are 200mm post mount direct, up to 230mm rotors with the right adapter. Maximum tyre size is 29 x 2.6in. Fox rates the 38 for EN 17406 category 5 use with a maximum system weight of 169kg, and lists it as compatible with Class 1, Class 3, L1e-A and L1e-B e-bikes. Check your frame's allowable fork travel and axle-to-crown before choosing a travel.
Sizes & options
Four versions. Travel and colour change from one to the next; everything else is shared.
| Travel | Colour | Axle-to-crown | Fox part no. |
|---|---|---|---|
| 180mm | Shiny Black | 598.6mm | 910-21-412 |
| 170mm | Shiny Orange | 588.6mm | 910-21-414 |
| 170mm | Shiny Black | 588.6mm | 910-21-415 |
| 160mm | Shiny Black | 578.6mm | 910-21-416 |
- New for 2027
- GRIP X2 damper: HSC, LSC, HSR, LSR
- FLOAT GlideCore air spring
- Genuine Kashima Coat 38mm uppers
- 160, 170 or 180mm travel, 29in
- 200mm post mount, up to 230mm rotors
- Kabolt-X 15 x 110mm Boost thru-axle
| Brand | Fox |
|---|---|
| Model | 38 Factory |
| Model year | 2027 |
| Wheel size | 29in |
| Travel | 160mm, 170mm or 180mm (see options) |
| Offset (rake) | 44mm |
| Upper tubes | 38mm, Genuine Kashima Coat |
| Damper | GRIP X2 (HSC, LSC, HSR, LSR) |
| Air spring | FLOAT EVOL GlideCore |
| Air channels | Yes |
| Bleeders | Yes |
| Axle | Kabolt-X, 15 x 110mm Boost |
| Steerer | 1.5in tapered |
| Brake mount | 200mm post mount, up to 230mm rotors |
| Maximum tyre | 29 x 2.6in |
| Starting weight | 2360g (Fox figure: 29in, 180mm, GRIP X2, Kabolt X) |
| Mud guard | Optional Fox 36/38 mud guard, 4-point direct mount |
| In the box | Star nut, brake hose clip, 3 volume spacers, owner's manual, Fox sticker |
| SKU | RFX-P-F27-38F-GX2-29 |
