SRAM Force XPLR AXS E1 1x13 Disc Brake Groupset
For bikes with up to 700x45c or 27.5x2.1” tyre widths
SKU code: SRM-GS-FRC-1W-AXS-D2-1x12
Customise Your Purchase
SRAM Force E1 AXS Shift-Brake, Left Shift / Rear B
$600.00
SRAM Force E1 AXS Shift-Brake, Right Shift / Rear
$600.00
SRAM Force XPLR AXS E1 Rear Derailleur, 1x 13-Spee
$740.00
SRAM Force XPLR AXS E1 1x Wide Crankset
$480.00
SRAM Force XPLR XG-1371 E1 Cassette, 13-Speed, 10-
$475.00
SRAM Force E1 Flattop Chain, 12/13-Speed, 126 Link
$105.00
SRAM AXS Battery
$101.00
SRAM AXS Battery Charger, USB-C, Single Battery, C
$84.00
SRAM Paceline Disc Brake Rotor 140mm, CenterLock,
$95.00
SRAM Centerline Disc Brake Rotor 160mm, CenterLock
$81.00
Force XPLR AXS E1 (2025) takes SRAM's gravel groupset to 13 speeds: a 10-46 cassette with closer steps than 1x12, on the Wide chainline for bigger tyres. This kit replaces our Force XPLR Wide 1x12 D2 kit.

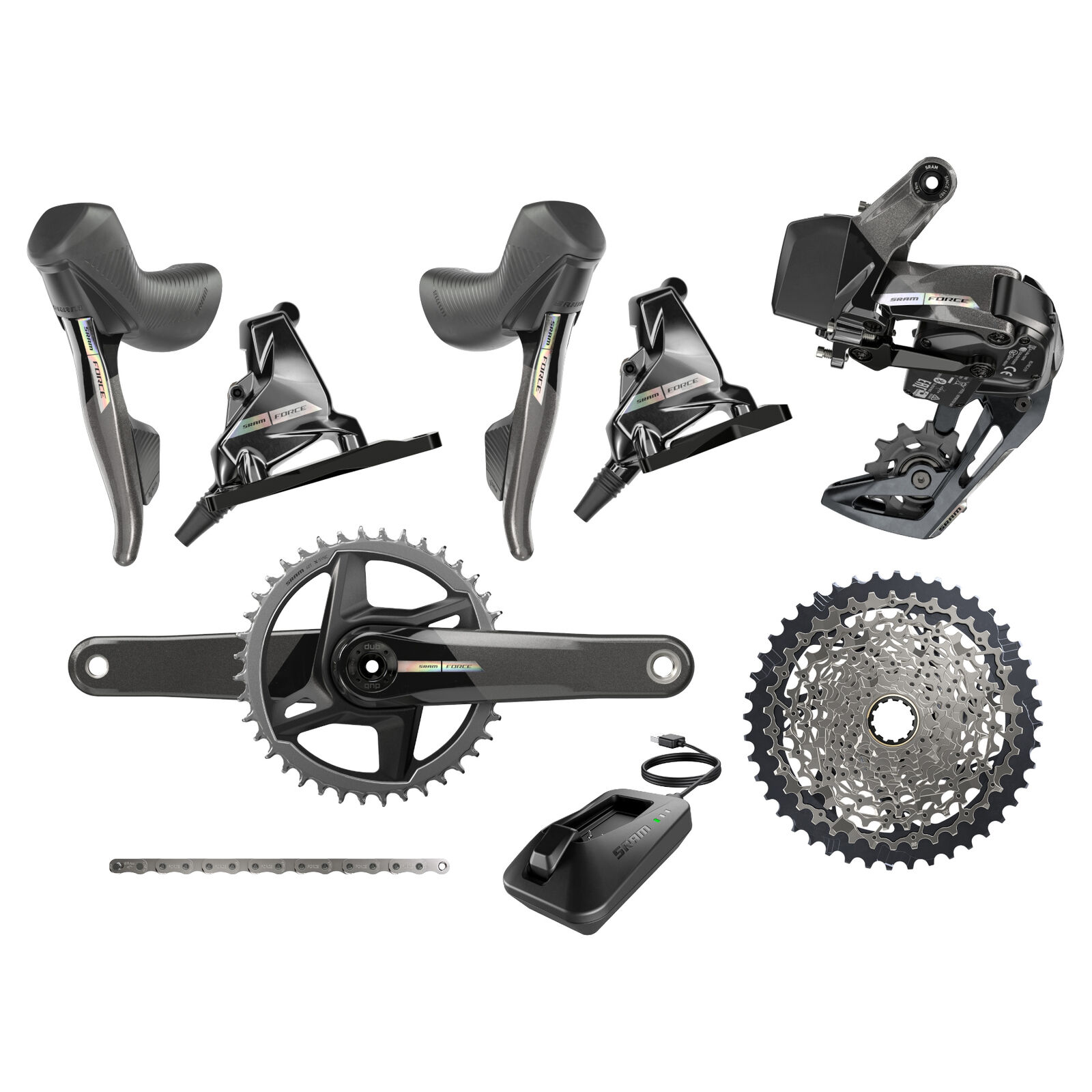

Kit includes
- SRAM Force AXS E1 shift-brake levers (pair) with hydraulic flat-mount calipers, 1800 mm hoses trimmed to fit front or rear; rotors sold separately (left lever, right lever)
- SRAM Force XPLR AXS E1 rear derailleur, 13-speed, max 46T (UDH frame required)
- SRAM Force XPLR E1 1x Wide crankset (DUB, direct mount 42T): 160 to 175 mm; bottom bracket not included
- SRAM Force XPLR XG-1371 13-speed cassette, 10-46
- SRAM Force E1 Flattop chain (12/13-speed), 126 links
- SRAM AXS battery
- SRAM AXS USB-C battery charger (no cord)
Optional parts
Every part in the kit can be deselected under Customise Your Purchase, so you only pay for what you need when upgrading a bike that already has some of it.
Fitted at our Marrickville workshop in Sydney: book a fitting with Tune Cycles.
Warranty
SRAM components carry SRAM's limited warranty against defects in materials and workmanship (two years from purchase). Bring any warranty concern back to Tune Cycles: we assess the part and lodge the claim with SRAM's Australian distributor. Wear parts (chain, cassette, rotors, pads) are not covered for normal wear. Your rights under the Australian Consumer Law are not affected.
Key features
- 13-speed SRAM XPLR AXS wireless shifting
- 10-46 cassette with closer gear steps than 1x12
- Wide chainline for gravel tyre clearance
- Full Mount rear derailleur for UDH frames
- Hydraulic disc brakes with flat-mount calipers
- Parts you already own can be left out
| Specification | Details |
|---|---|
| Series | SRAM Force XPLR AXS E1 |
| Drivetrain | 1x13, wireless AXS |
| Brakes | Hydraulic disc, flat mount |
| Crankset | Force XPLR E1 1x Wide, DUB, 42T, 160–175 mm |
| Cassette | XG-1371, 10-46 (XDR driver) |
| Rear derailleur | Force XPLR AXS E1, 13-speed, max 46T, UDH |
| Chain | Force E1 Flattop 12/13-speed, 126 links |
| Batteries | 1 × AXS battery, USB-C charger |
| Frame | UDH (Universal Derailleur Hanger) required |
| Not included | Bottom bracket, rotors (optional) |
| SKU | SRM-GS-FRC-1W-AXS-D2-1x12 |
| Model # | GS-FRC-E-D2 |
| Barcode # | |
| Brand | SRAM |
| Shipping Weight | 3.1750kg |
| Shipping Width | 0.350m |
| Shipping Height | 0.200m |
| Shipping Length | 0.450m |
