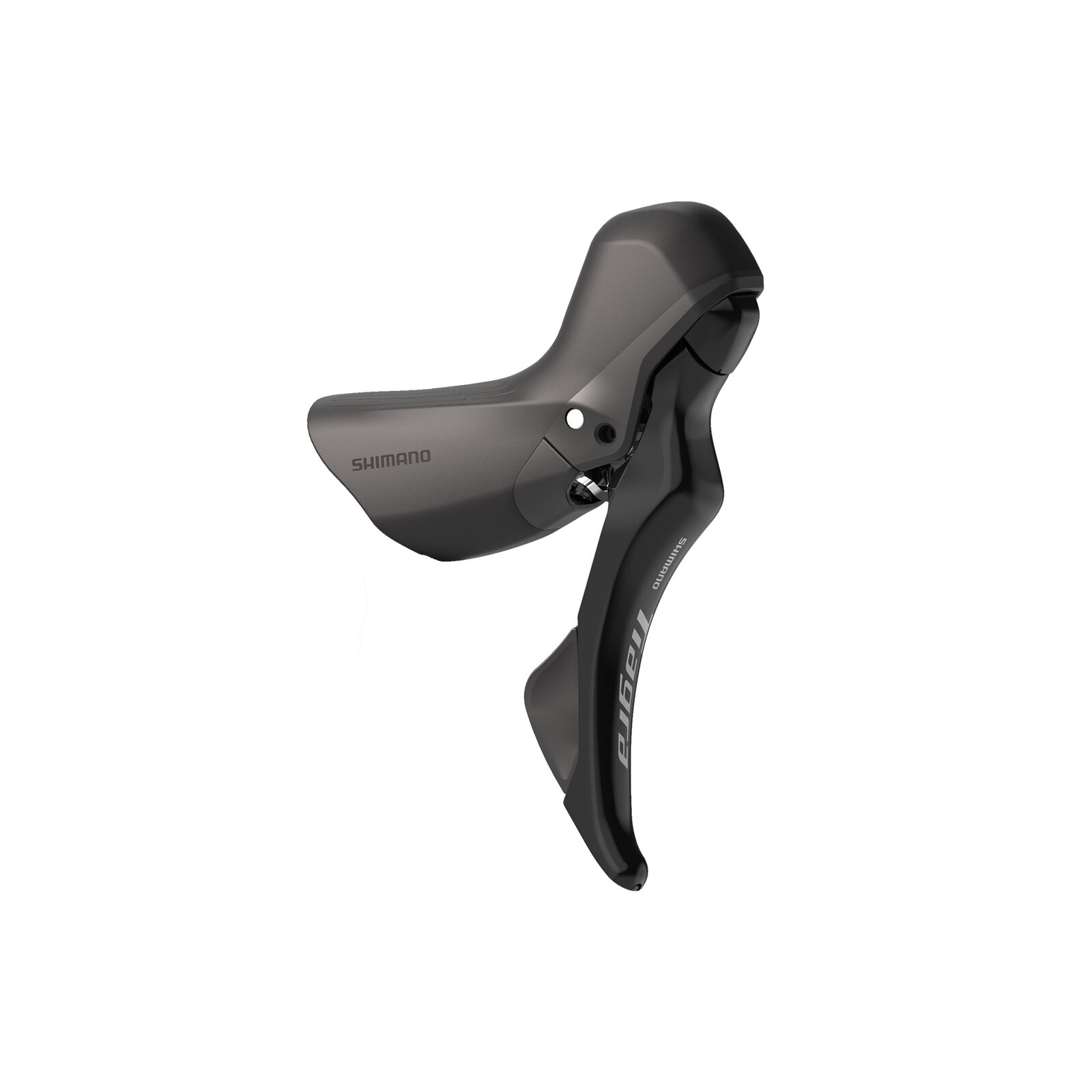

Sharper braking and crisp, confident shifting from the drops — the Shimano Tiagra ST-R4020 right-hand Dual Control Lever brings genuine hydraulic disc performance to road and endurance riders who want dependable control without stepping up to a flagship groupset.

Highlights

  • Right-hand lever: shifts the rear derailleur across 2x11-speed gearing and operates the front brake in a standard Australian setup
  • Hydraulic disc braking delivers powerful, controllable and consistent stopping with less hand effort, especially from the hoods
  • Slim, ergonomic lever body with a refined shape that shortens reach distance to suit a wider range of hand sizes
  • Short shift arc follows your natural hand movement for rapid, accurate shifts
  • Tunable reach adjustment to dial in lever position for your hands
  • Pairs with the BR-RS405 flat-mount caliper for a complete Tiagra hydraulic disc system

Confident control from every hand position

The Tiagra Dual Control Lever takes its ergonomics from Shimano's 105 group, with a slim hood and reduced inward shift-stroke distance. The result is comfortable, secure control whether you're climbing on the hoods or descending in the drops.

Hydraulic braking that stays consistent

A sealed hydraulic system with an internal reservoir automatically compensates for pad wear, keeping pad-to-rotor clearance and lever feel consistent ride after ride. The system uses Shimano mineral oil only.

Built for the modern Tiagra drivetrain

This lever is designed around Shimano's 11-speed Tiagra platform, giving road and endurance bikes dependable, low-maintenance hydraulic stopping power.

Compatibility & fit

This is the right-hand lever for 2x11-speed drivetrains. It shifts the rear derailleur and is designed to work with Shimano 11-speed rear derailleurs RD-R4000 or RD-U6040. On a standard Australian brake setup the right lever operates the front brake (the left operates the rear). It is supplied as a hydraulic Dual Control Lever for flat-mount hydraulic disc brakes and is intended to pair with the Shimano BR-RS405 flat-mount caliper. Use Shimano mineral oil only. Supplied with a hydraulic hose that can be trimmed to suit your brake routing. For a complete shifting setup, combine with the matching ST-R4020-L (left) lever.

This Shimano component is covered by Shimano's warranty against defects in materials and workmanship for the applicable warranty period from the date of purchase. The warranty does not cover normal wear (including brake pads and seals), damage from crashes, improper installation, incorrect bleeding or use of non-Shimano fluid, neglect, or unauthorised modification. Hydraulic systems must be set up and maintained per Shimano's instructions using Shimano mineral oil only.

For warranty support, return the item to Tune Cycles and we'll manage the claim for you.

This warranty is in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

  • Right-hand Dual Control Lever for 2x11-speed road drivetrains
  • Shifts the rear derailleur; operates the front brake in a standard Australian setup
  • Hydraulic disc braking for powerful, consistent stopping with less hand effort
  • Slim, ergonomic lever shape inspired by Shimano 105 for a shorter reach distance
  • Short shift arc that follows natural hand movement for fast, precise shifts
  • Tool-adjustable reach to suit different hand sizes and riding styles
  • Sealed hydraulic system with internal reservoir auto-adjusts for pad wear
  • Uses Shimano mineral oil only
  • Designed to pair with the BR-RS405 flat-mount caliper
SeriesShimano Tiagra
Part numberST-R4020-R
SideRight
TypeDual Control Lever (shift + brake)
Rear speeds11-speed
Front speeds2
Brake typeHydraulic disc
Brake operated (AU setup)Front
Caliper mountFlat mount
Compatible caliperBR-RS405
Rear derailleur compatibilityRD-R4000 / RD-U6040
Brake fluidShimano mineral oil only
Reach adjustYes
Rotor compatibility140 mm / 160 mm
HoseSM-BH59 series
SKU SHM-ISTR4020RBI
Barcode # 4550170227852
Brand Shimano
