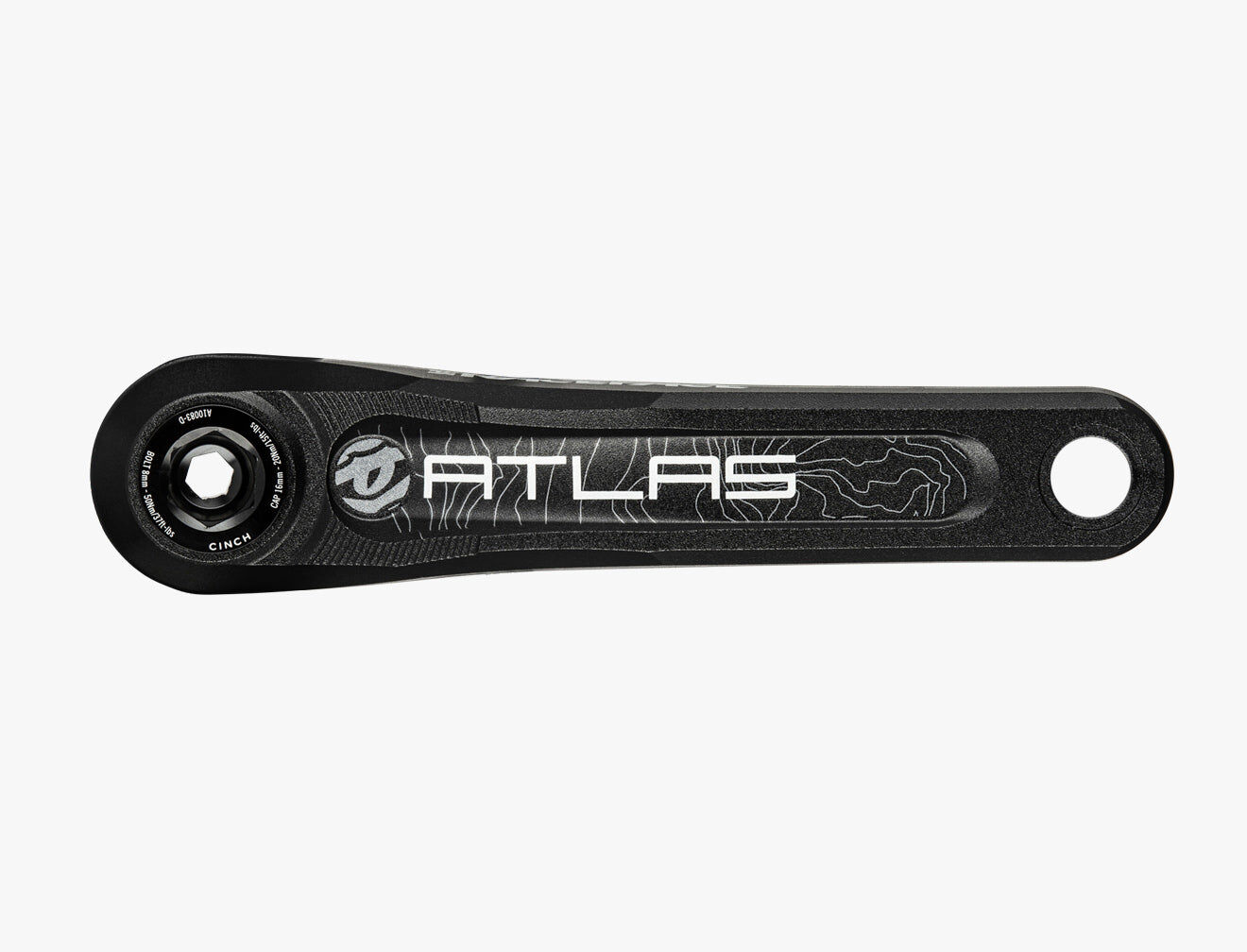

Atlas is Race Face's strongest alloy crankset, built for big hits and relentless descending. Forged 7050 aluminium arms give it plenty of backbone and the stiffness to handle everything from trail and freeride to enduro and DH, lap after lap.

Highlights

• Forged 7050 aluminium arms and 7050 aluminium axle
• 30mm CINCH spindle, DH 136mm (RF136DH)
• 52mm chainline
• 178mm Q-factor (Race Face crank chart)
• 690g (170mm arms, 32T alloy chainring)
• Lifetime Warranty, crashes included

Welcome to the chunderdome

Low hassle and hard charging, Atlas is made for gravity and bike park riders who push the limits. Stiff, strong forged alloy arms open up the mountain, and Race Face backs them with a Lifetime Warranty that includes crashes.

Any bike, any drivetrain

Race Face's CINCH system is built to work with any drivetrain, now and in the future, so you can change chainrings and carry the cranks over to your next bike. The 165mm length gives extra clearance on rocky, technical terrain.

Compatibility & fit

This Atlas uses Race Face's RF136DH spindle (DH 136mm, 30mm diameter) for a 52mm chainline. Race Face's crank chart lists it for 68/73mm shells (BSA, BB92/BB89, PF30 and 392EVO) with no spacers, plus BB30 and T47 68/73mm with bottom brackets Race Face doesn't supply. Spindles with the DH suffix fit Atlas and SixC cranks only. Chainrings and bottom brackets are sold separately. Crank and bottom-bracket fitting is a separate workshop service at Tune Cycles, and we can check your frame's bottom bracket standard and chainline with you before you order.

Sizes & options

Choose your arm length; all lengths are black with the DH 136mm spindle.
