DT Swiss FR541 (front) / DT Swiss FR571 (rear) Hope Pro 5 hand-built wheelset

A DT Swiss FR541 (front) / DT Swiss FR571 (rear) rim set laced 32-spoke front and rear to Hope Pro 5 hubs, built by hand in our Marrickville workshop, tensioned, stress-relieved and trued before it leaves the bench. Our Pro wheel build and tubeless tape fitted are included and show as two free lines in your cart.

Before you order — what your bike decides

• Wheel size — 29", 27.5" or mullet; mullet means 29" front and 27.5" rear. Read it off your tyre sidewall.
• Rear axle — Boost 12 × 148 or Super Boost 12 × 157. Boost 12 × 148 is most modern MTBs, Super Boost 12 × 157 some Pivot and Knolly frames, 12 × 142 older frames: measure the inside of the dropouts.
• Front axle — Boost 15 × 110 or Boost 20 × 110. Boost 15 × 110 on most modern forks, 20 × 110 on DH forks, 15 × 100 on older forks: check the fork lowers.
• Rotor mount — 6-bolt or Centre Lock: look at your rotors (six bolts, or a splined centre with a lockring).
• Cassette — the freehub body follows it: Shimano 12-speed MTB is Micro Spline, SRAM Eagle is XD, Shimano 11-speed and older (and CUES LG) is HG. Offered here: Shimano HG, Shimano Micro Spline or SRAM XD.

Choose the same rotor mount front and rear unless your rotors differ. Colour: pick front and rear separately.

Who it is for

For downhill, freeride and bike-park riding — the DT Swiss FR541 is DT's ASTM 5 gravity rim. For trail or XC riding our XM431 and XR421 kits are lighter; on an eBike see the 350 Hybrid or Hope Pro 5e versions.

The rider's questions

• How much can it carry? Max system weight (rider, bike and gear) 140kg — the DT Swiss FR541 rating, the lowest-rated part of the build.
• What tyres fit? 2.1–2.7" tyres are DT's recommended range for a 30mm inner width; 1.85"–2.05" and 2.8" are possible. The tyre's own maximum pressure applies; the rim sets none.
• eBike? Hope makes the Pro 5 E for eBikes — see the Pro 5e version of this set.
• How fast does the hub engage? 108 points of engagement — Hope Pro 5 (6 pawls, 3 engaged), 3.33° between clicks.
• Warranty? DT Swiss parts 24 months from purchase; Hope hubs under Hope's manufacturer warranty through the Australian distributor; our build work is guaranteed. Any claim comes back to Tune Cycles — see the Warranty tab.
• How long does it take? Built to order — we confirm the build date by email when you order.
• Colours? Hubs in Black, Silver, Blue, Bronze, Orange, Purple or Red; the rims are black.

Kit includes

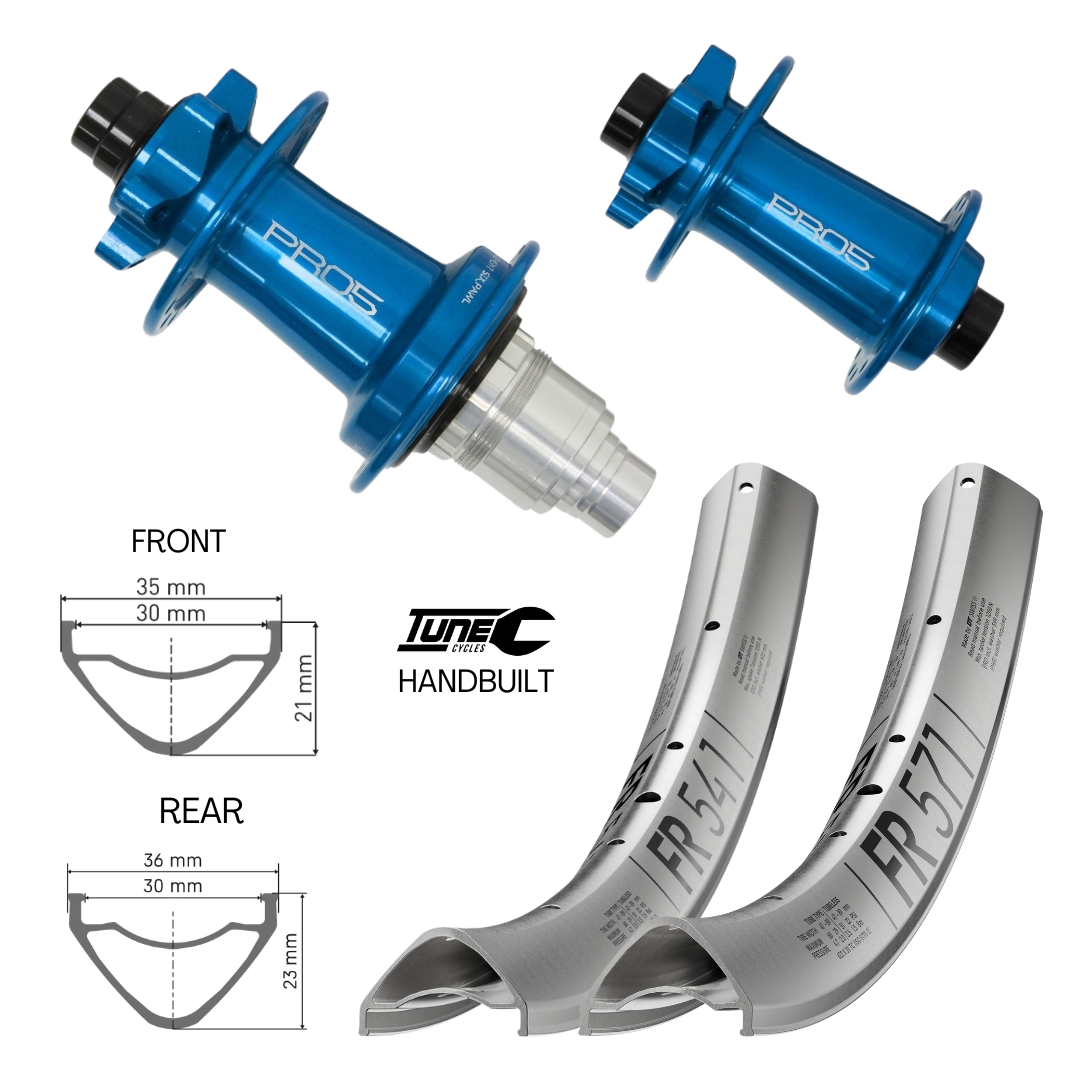

• DT Swiss FR541 (front) / DT Swiss FR571 (rear) rim set — two 32H rims, 29", 27.5" or mullet
• Hope Pro 5 front hub, 32H: 6-bolt or Centre Lock · Boost 15 × 110 or Boost 20 × 110 · colours Black, Silver, Blue, Bronze, Orange, Purple or Red
• Hope Pro 5 rear hub, 32H: 6-bolt or Centre Lock · Boost 12 × 148 or Super Boost 12 × 157 · freehub Shimano HG, Shimano Micro Spline or SRAM XD · colours Black, Silver, Blue, Bronze, Orange, Purple or Red
• Spokes and nipples from our bench stock, laced and tensioned — the Spoke Upgrade and Brass Nipple Upgrade rows below change what is fitted

Options: rim diameter 29", 27.5" or mullet · rotor mount 6-bolt or Centre Lock · front axle Boost 15 × 110 (Boost 20 × 110) · rear axle Boost 12 × 148 (Super Boost 12 × 157) · freehub Shimano HG, Shimano Micro Spline or SRAM XD · hub colour Black, Silver, Blue, Bronze, Orange, Purple or Red · Spoke Upgrade (DT Competition, Alpen 3 or Pillar PSR; black, silver or oilslick) · Brass Nipple Upgrade (Pro Lock, black or silver) · tubeless valves (50mm) · Muc Off Sealant No Puncture.

Everything in the Wheelset box is built in. The rows under Upgrades are optional: tick what you want and the price updates. If you want us to lace a rim or hub you already own, that is a workshop job — contact us for a quote.

Sold separately (shown with this kit): a cassette for your freehub body, tyres to suit (sizes above). Rotors: one per wheel, to match your rotor mount and your brake caliper's size range.

How we build it

Every wheel is laced by hand in Marrickville, brought up to tension evenly to the lower of the rim and hub limits (1200 N), stress-relieved and trued, then checked again before it is packed. Tubeless tape (32mm) is fitted to the rim; add valves and sealant and it is ready for tyres.

Tune Cycles builds and fits these wheels. If you are unsure what your frame, fork or drivetrain takes, ask us before you order.
