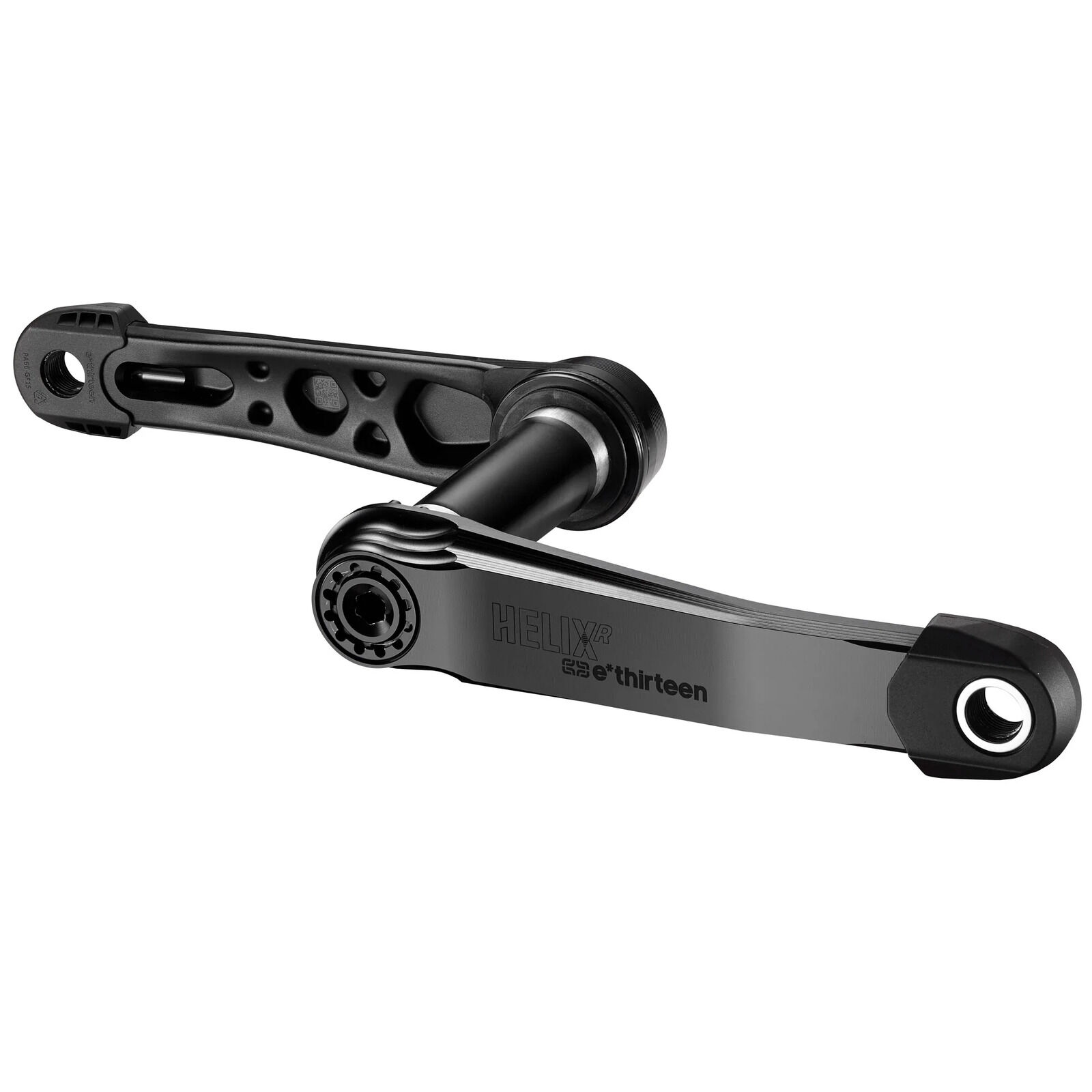

e*thirteen Helix Race Alloy Crank 160mm – Black
SKU code: DTW-ETG-CS4HAA-100
$516.95
The Helix Race is e*thirteen's top-of-the-line aluminium alloy crank — Enduro-rated strength at XC weight, sold as a 160mm crank arm only with no bottom bracket and no chainring.
Highlights
- Forged AL-6066-T6 crank arms on a 30mm AL-7050-T7 spindle
- Fits Shimano BB92 and BB30 bottom brackets, 68/73mm shell
- Self-extracting bolt plus e*thirteen's P3 Connect spindle interface — no separate crank puller needed
- Tool-free, direct-mount Quick Connect chainring interface (chainring sold separately)
- Flip-flop ring support for a 52mm Boost or 55mm Super Boost chainline
- SRAM and Shimano 12-speed, Narrow/Wide direct-mount compatible
Aluminium strength at XC weight
e*thirteen builds the Helix Race as its top aluminium alloy crank: Enduro-rated arm strength in an XC-weight package, with CNC machining through the arm to cut mass without cutting stiffness. It's sold as a crank only — no bottom bracket and no chainring — so pick a direct-mount Helix ring and a BB92 or BB30 bottom bracket to suit the frame.
Compatibility & fit
- Crank arm length: 160mm
- Bottom bracket: Shimano BB92 or BB30, 68/73mm shell
- Spindle: 30mm
- Chainring: direct-mount Helix R / Helix Plus DM / Helix Steel DM ring, sold separately
- Chainline: 52mm Boost or 55mm Super Boost via the flip-flop ring
- Drivetrain: SRAM and Shimano 12-speed, Narrow/Wide direct mount
- No bottom bracket or chainring included
Options
| Colour | What differs |
|---|---|
| Black | Finish only — same crank arms, spindle and spec |
| Bronze | Finish only — same crank arms, spindle and spec |
e*thirteen covers this crank for 10 years against manufacturing and material defects from the date of purchase; crash, impact or misuse damage qualifies for a discounted replacement under e*thirteen's crash-replacement policy. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with e*thirteen's Australian distributor.
- Forged AL-6066-T6 arms, 30mm AL-7050-T7 spindle
- Self-extracting bolt and P3 Connect spindle interface
- Tool-free Quick Connect direct-mount ring interface
- Boost/Super Boost flip-flop chainline
- SRAM/Shimano 12-speed Narrow/Wide compatible
- Fits BB92/BB30, 68/73mm shell
| Crank arm length | 160mm |
|---|---|
| Spindle | 30mm, AL-7050-T7 |
| Bottom bracket | Shimano BB92 or BB30 |
| BB shell width | 68/73mm |
| Chainline | 52mm Boost or 55mm Super Boost (flip-flop ring) |
| Drivetrain compatibility | SRAM and Shimano 12-speed, Narrow/Wide |
| Chainring | Not included — direct mount, sold separately |
| Weight (bare crank, e*thirteen spec) | 547g |
| Colour | Black / Bronze (see Options) |
| SKU | DTW-ETG-CS4HAA-10-PAR |
| Brand | e*Thirteen |
