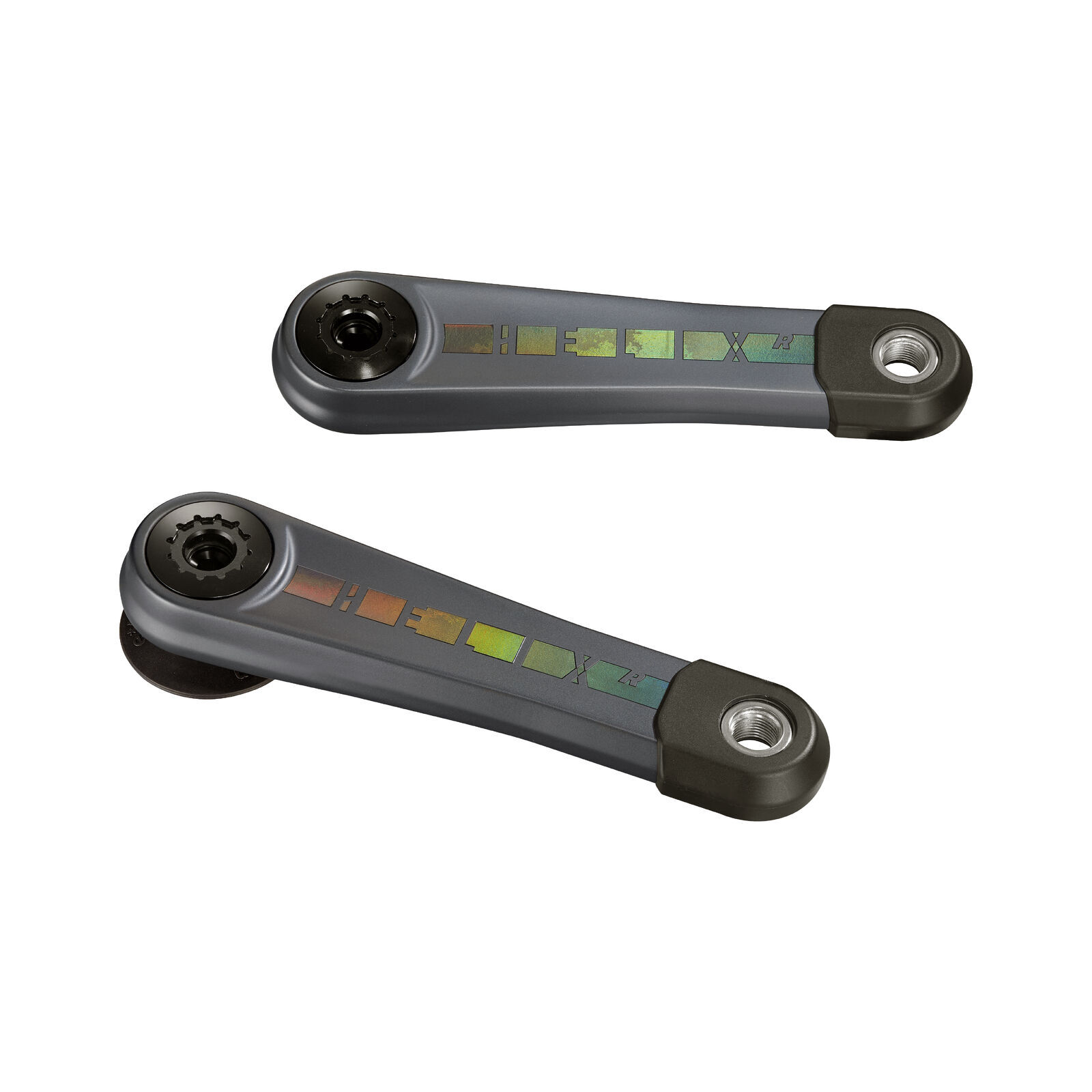

The Helix Race Carbon e*spec brings e*thirteen's highest strength-to-weight MTB crank design to e-bikes, built for the Fazua Ride 60 (21.5mm offset) motor interface in a 160mm or 165mm arm length.

Highlights

  • Ultralight carbon layup, ASTM 5 approved for e-MTB use
  • Spindle interface for Fazua Ride 60 (21.5mm offset)
  • 21.5mm offset, 180mm Q-factor on this motor interface
  • Moulded crank boots for rock-strike protection
  • Self-extractor system for easy fitting and removal

Built for the e-MTB motor, not bolted on

e*thirteen machines the spindle interface specifically for Fazua Ride 60 (21.5mm offset), rather than adapting an MTB crank, for a precise fit and the strength-to-weight ratio the e-MTB class demands.

Compatibility & fit

Fits e-bikes running the Fazua Ride 60 (21.5mm offset) motor only — check your motor before ordering. Pairs with e*thirteen's Helix Race e*spec direct-mount chainring (sold separately). Fitting is a job for the Tune workshop if you're not confident pulling an e-bike motor unit.

Options

Arm lengthWhat differs
160mmShorter arm; weight not separately published
165mm331g, as published by e*thirteen
e*thirteen covers the Helix Race Carbon e*spec crankset for 10 years against manufacturing and material defects, plus a discounted crash replacement policy. For warranty support, return the product to Tune Cycles and we'll manage the claim with e*thirteen's Australian distributor. This is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
  • Carbon arms, ASTM 5 approved for eMTB use
  • Fits Fazua Ride 60
  • 21.5mm offset, 180mm Q-factor
  • 160mm or 165mm arm length
Brande*thirteen
ModelHelix Race Carbon e*spec
Motor fitmentFazua Ride 60 (21.5mm offset)
Arm length (option)160mm or 165mm
Offset21.5mm
Q-factor180mm
MaterialCarbon
RatingASTM 5
Weight (165mm)331g (±5%)
ColourBlack
SKU DTW-ETG-CS5HRA-10-PAR
Brand e*Thirteen
