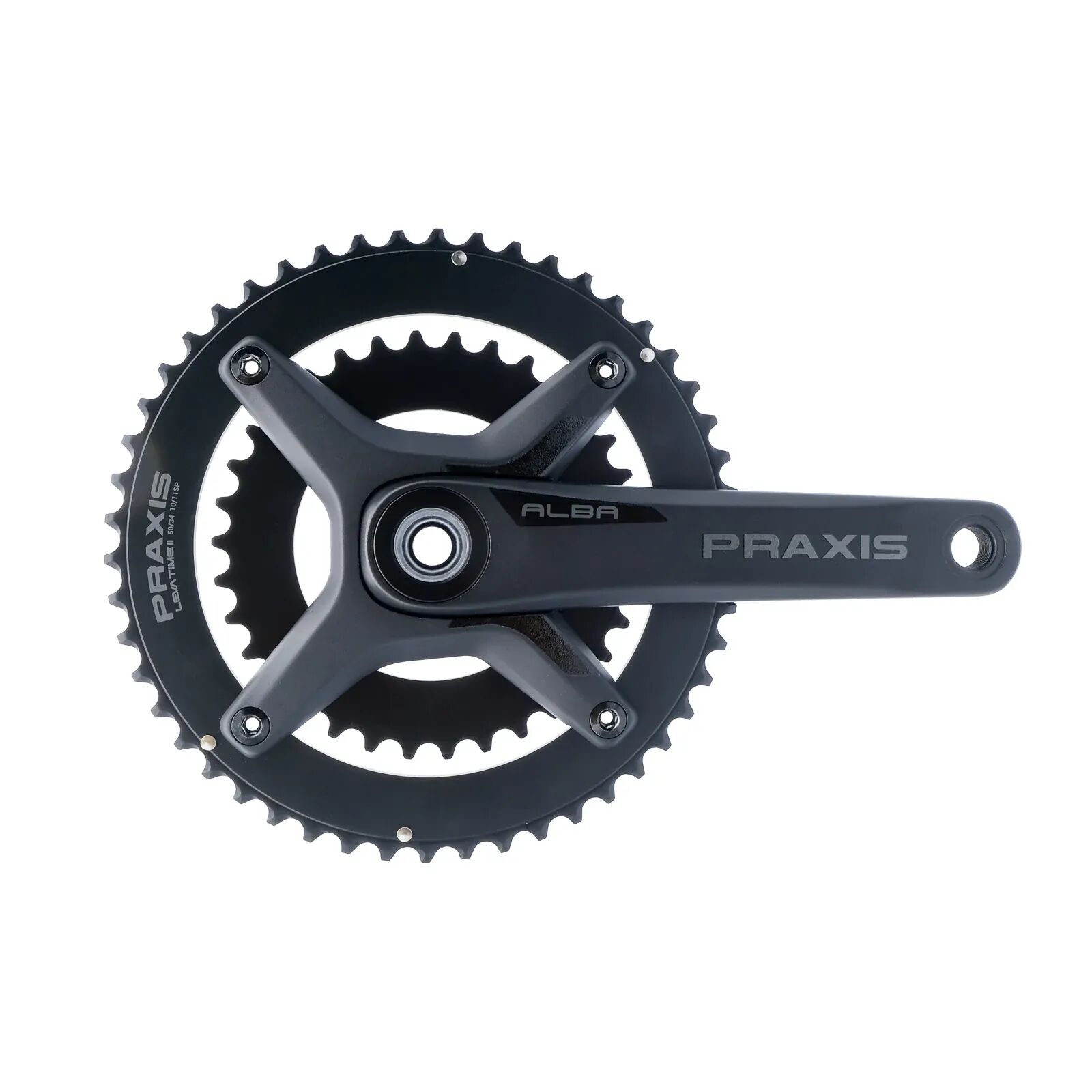

Praxis Alba M30 Road Crankset – 160mm, 52/36T
SKU code: DSG-PXA160-DM5236
In Stock
The Alba is Praxis's forged alloy road crank, named after the Alba Road climb in the Santa Cruz hills. Its 3-bolt direct-mount spider means one set of arms can carry compact to race 2x gearing, solid aero rings or a single 1x ring.
Highlights
- Forged alloy arms on an M30 alloy spindle (30 mm drive / 28 mm non-drive)
- Cold-forged LevaTime II X-rings for 2x, 10/11/12-speed
- 1x options from 36T to 50T with a narrow-wide direct-mount ring
- 147 mm Q-factor; 44.5 mm 2x and 45.5 mm 1x chainline
- 820 g for 172.5 mm with 50/34 (Praxis figure)
One crank, several setups
Praxis road cranks take their rings through a 3-bolt direct-mount interface on the drive arm. The LevaTime II X-spider (4-bolt 160/104 BCD) carries every 2x set from 48/32 to 53/39, a 110 or 130 BCD spider carries standard or aero rings, and a DM1X ring bolts straight to the arm for 1x. That is why the Alba comes in so many gearing options.
LevaTime II is Praxis's cold-forged 2x shifting design, with a stiffer 5 mm big ring and forged shift pins for quick, positive shifts.
Options
| Chainring | Setup | Speeds | Chainline |
|---|---|---|---|
| 48/32T, 50/34T, 52/36T, 53/39T | LevaTime II X-rings on the X-spider | 10/11/12-speed | 44.5 mm |
| 52/36T Aero | Solid aero-style ring set (172.5mm only) | To be confirmed, ask us | Not published |
| 54/42T Aero, 56/42T Aero | Solid aero/TT rings on a 130 BCD spider | 10/11-speed only | Not published |
| 36T, 38T, 40T, 42T, 44T, 46T, 48T, 50T | Narrow-wide DM1X ring (1x), needs a clutch rear derailleur | 10/11/12-speed | 45.5 mm |
| Crank length | 160mm, 165mm, 170mm, 172.5mm, 175mm with every ring except 52/36T Aero (172.5mm only) | — | — |
Compatibility & fit
Bottom bracket: needs a Praxis M30 bottom bracket (30 mm drive / 28 mm non-drive bearing), sold separately. Versions: BSA, BB30/PF30, BB86/BB90/BB92, BBright, 386EVO, T47 external bearing and T47 internal bearing.
Drivetrain (2x): Shimano Di2 and mechanical, SRAM eTap and mechanical (including the AXS flat-top chain) and Campagnolo EPS and mechanical, 10/11/12-speed. The 2x road chainline is not compatible with Shimano GRX front derailleurs; Praxis makes the Alba-GR for that.
1x: Shimano and SRAM 10/11/12-speed with a clutch rear derailleur; not for Campagnolo chains. Praxis still suggests an upper chain guide for rough terrain.
Power: Praxis lists 3-bolt spider meters from Power2Max (NG and NG Eco), SRM, SIGEY and XCADEY, plus power pedals and the Velocomp PowerPod.
The Tune Cycles workshop can fit the bottom bracket and crankset for you as a separate workshop service. Threaded shells need the right BB tool and press-fit shells need a proper bearing press, so it pays to have the shell checked and the bottom bracket fitted correctly first. The main crank bolt is torqued to 48–52 Nm with a torque wrench.
Praxis warrants its components to be free from defects in materials and workmanship for 2 years from the original purchase date, for the original owner with proof of purchase. The warranty does not cover normal wear and tear (such as chainring tooth wear, worn anodising or coatings, bearing wear and general corrosion), or damage from a crash, impact, abuse, modification, or installation that does not follow Praxis's instructions and tools.
This is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
- Forged alloy arms, M30 30/28 mm alloy spindle
- 3-bolt direct-mount spider: 2x, aero or 1x
- Cold-forged LevaTime II X-rings (simplified version with steel bolts on 48/32, 50/34, 52/36)
- 147 mm Q-factor
- 8 mm alloy self-extracting main bolt
| Material | Forged alloy arms, alloy spider and rings |
|---|---|
| Spindle | M30 alloy, 30 mm drive / 28 mm non-drive bearing |
| Bottom bracket | Praxis M30, sold separately |
| Chainring interface | 3-bolt direct mount (X-spider 160/104 BCD, 130 BCD spider, or DM1X ring) |
| Chainline | 44.5 mm (2x), 45.5 mm (1x) |
| Q-factor | 147 mm |
| Weight | 820 g (172.5 mm with 50/34, Praxis figure) |
| Main bolt | 8 mm alloy, self-extracting; 48–52 Nm |
| Spider / ring bolts | T25, 9 Nm |
| Options | Crank length: 160mm, 165mm, 170mm, 172.5mm, 175mm. Chainring: 48/32T, 50/34T, 52/36T, 53/39T, 52/36T Aero, 54/42T Aero, 56/42T Aero, 36T, 38T, 40T, 42T, 44T, 46T, 48T, 50T |
| SKU | DSG-PXALBA |
| Brand | Praxis |
