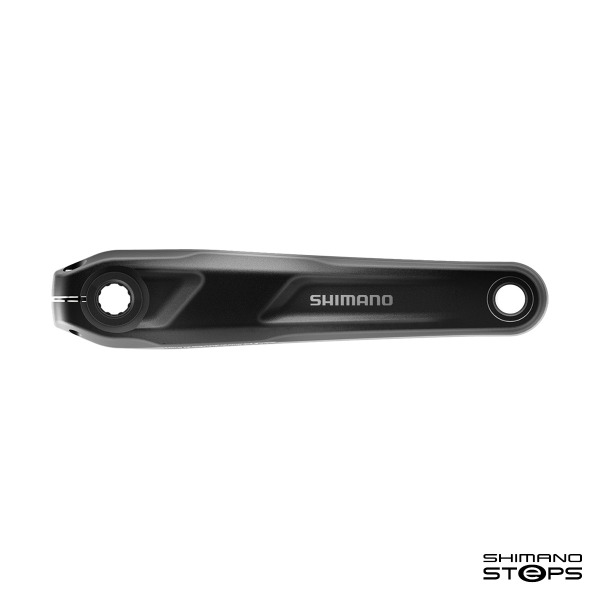

Shimano Steps FC-EM600 crank arm set, 160 mm

Built for the loads an e-MTB puts through a drivetrain, the FC-EM600 mounts straight onto the Steps drive unit axle without spacers, so the fit stays clean and the chainline is where Shimano intended. The 160 mm length keeps your pedals further from the ground, which helps on rocky, technical trails.

Highlights

  • Designed for aggressive e-MTB riding
  • 160 mm crank arm length
  • Serrated 24 mm axle mount
  • Black finish
  • Supplied without a chainring

Why a shorter crank

Shorter arms lift the pedal at the bottom of the stroke, so you clip rocks and roots less often on technical ground. Shimano offers this crank arm in 160, 165, 170 and 175 mm.

Compatibility and fit

For Shimano Steps e-bike drive units using the serrated 24 mm axle interface. No chainring is included, so order the chainring your drive unit and chainline require. If you are not sure which chainring or crank length suits your bike, our mechanics can confirm it before you order.

]]>

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Aggressive MTB riding design
  • 24 mm bottom bracket spindle
  • Crank arm length (mm): 160, 165, 170, 175
  • MODEL NO: FC-EM600
  • Shimano Series
  • Black Color
  • Q factor (mm): 177 (DU-EP800)
  • Crank arm length: 160mm,165mm,170mm, 175mm
  • 24mm Axle Serration BB type
  • Solid Crank arm type
SeriesShimano Steps ModelFC-EM600 Crank arm length160 mm Axle interface24 mm, serration ChainringNot included ColourBlack ]]>
SKU SHM-EFCEM600MXXL
Barcode # 4550170596767
Brand Shimano
Shipping Weight 0.3000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.400m
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
