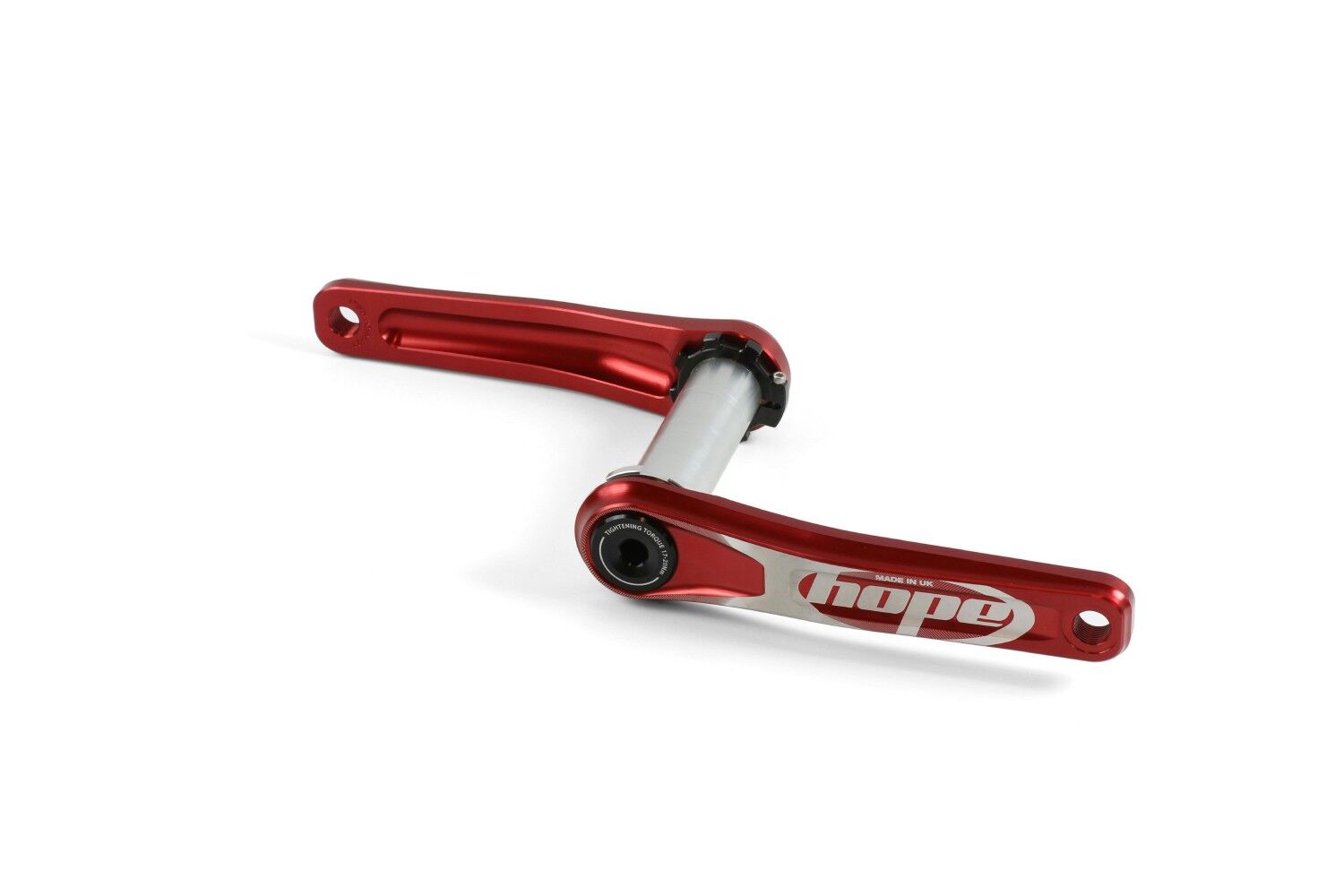

Hope's original aluminium crankset, forged and CNC-machined in Barnoldswick, with a stiff 30mm axle and a spline mount that takes a spiderless chainring or a spider. This listing includes the limited-edition Gunsmoke finish alongside Purple and Red.

Highlights

  • Forged and CNC-machined 7075 series aluminium arms
  • Unique expanding spline/arm interface
  • Spline mount for a chainring or spider
  • 30mm oversized axle, 68/73mm length
  • Limited-edition Gunsmoke finish available

Built for hard riding

Forged then machined 7075 arms give Hope's typical strength-to-weight balance, and the oversized 30mm axle keeps the whole crank stiff under power. Hope made axle options to suit most bikes from XC through DH and fat bikes; this is the 68/73mm version.

Chainring choice

With no spider fitted, you can run a Hope spiderless chainring direct on the spline, or add a Hope spider if you prefer a bolt-on ring.

Options

ColourLength
Gunsmoke175mm
Purple165mm
Red170mm, 175mm

Stock is limited to the combinations above.

Compatibility & fit

The 68/73mm axle suits threaded 68mm and 73mm bottom bracket shells with a compatible Hope 30mm bottom bracket. Check frame clearance and chainline before ordering. Fitting is a separate Tune Cycles workshop service, not included in the price – book at tunecycles.com.au/book.

Hope Technology covers its components for two years from the original date of purchase against manufacturer defects in materials and workmanship; damage from normal wear, misuse or not following Hope's recommendations isn't covered. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Forged and CNC-machined 7075 arms
  • Expanding spline/arm interface
  • 30mm oversized axle
  • Spline mount for spiderless chainring or spider
  • Gunsmoke, Purple or Red
BrandHope Technology
ArmsForged and CNC-machined 7075 series aluminium
Axle30mm, 68/73mm
Chainring mountSpline (chainring or spider)
SpiderNot included
Weight641g incl. arms, axle and 34T spiderless ring (distributor figure)
OptionsGunsmoke 175mm; Purple 165mm; Red 170mm, 175mm
SKU BSP-HOPFCNS73
Brand Hope
