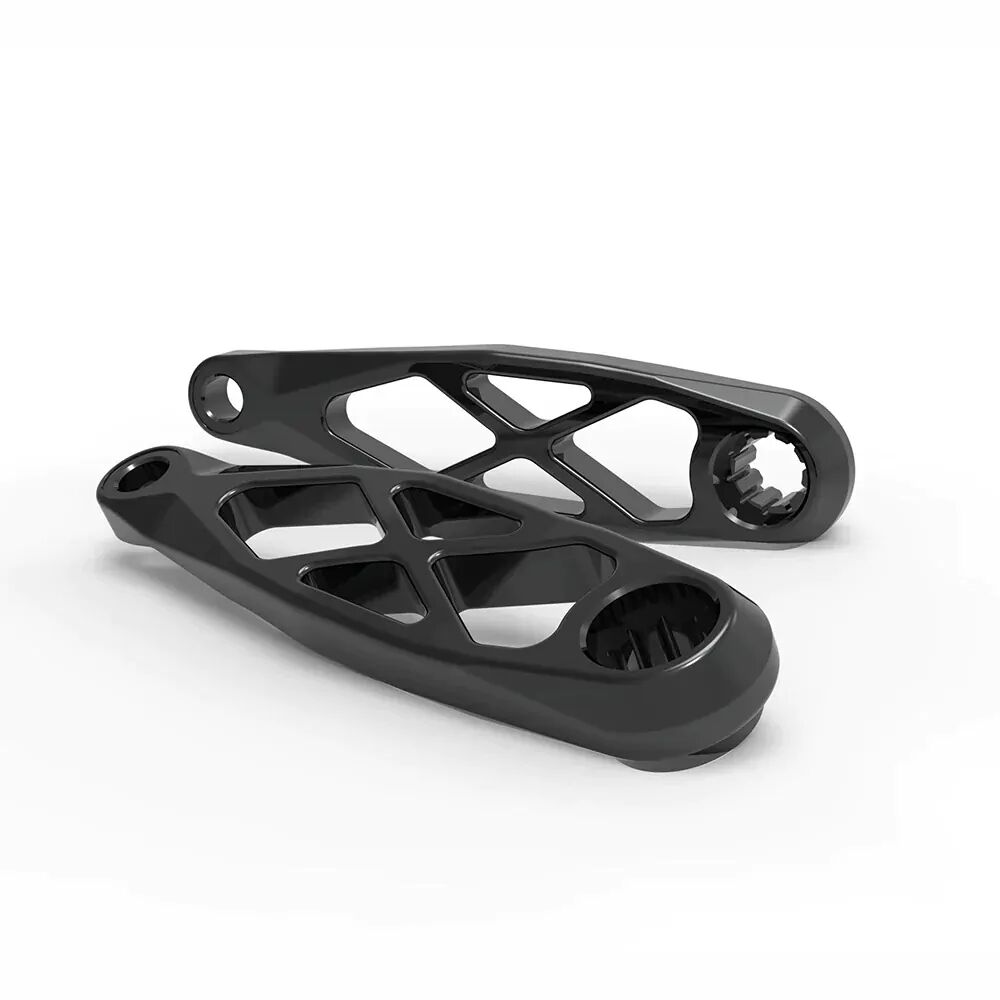

Short alloy crank arms for eMTBs with a Shimano EP8 motor, CNC-machined by 5DEV from 7075 billet in San Diego. 5DEV offers them in shorter lengths to reduce rock and pedal strikes on technical climbs.

Highlights

  • For the Shimano EP8 motor (EP8 spline drive)
  • 7075-T651 aluminium, CNC-machined from billet
  • 182mm Q-factor on an EP8
  • 440g (160mm) or 446g (165mm) with hardware
  • Two M6 pinch bolts per arm, 14Nm
  • 155, 160 or 165mm

Fitting

Fitting eCranks is a separate workshop service and isn't included in the price. The Tune workshop can fit them to your pedal-assist eBike and confirm your motor first. 5DEV's EP8 mounting instructions: line up the slot in the arm with the small hole in the motor spindle, fit the crank cap with thread locker and torque it to 8Nm (6mm hex), then tighten the two M6 pinch bolts (5mm hex) alternately to 14Nm, inside bolt first, with thread locker on each. The arms go on 180° apart. 5DEV asks for the job to be done by an experienced eBike mechanic and for the bolts to be re-checked after the first ride.

About this version

This listing is 5DEV's earlier EP8 eCrank (5DEV code CS, EP8 version). 5DEV also made this crank in a separate version for Shimano's older E8000/E7000 motors; this is not that version.

5DEV eCranks by motor

5DEV makes a separate eCrank for each motor interface. Its current eCrank range includes:

  • Shimano EP8 (5DEV says its EP8 cranks also work on EP801): R-SPEC EP8 eCranks and Titanium EP8 eCranks
  • Bosch, TQ, Avinox and the 2025 Specialized Turbo Levo 4: R-SPEC Bosch/TQ/Avinox eCranks and Titanium Bosch/TQ/Avinox eCranks
  • Specialized Turbo Levo and Kenevo, first three generations (Brose motor): Specialized Brose eCranks and Titanium Specialized Brose eCranks
  • Specialized Turbo Levo SL and Kenevo SL (SL 1.2 motor): SL eCranks with the SRAM DUB spline
  • Fazua Ride 60: ETOR eCranks

Options

Every option is the same EP8 alloy arm; only the crank length and finish change.

Crank LengthColourWeight (with hardware)
155mmBlack, RawNot published
160mmBlack, Raw440g
165mmBlack, Raw, Purple446g

Compatibility & fit

  • Made for the Shimano EP8 motor.
  • 5DEV's current R-SPEC EP8 page says its EP8 cranks work on EP801 motors. This listing is the earlier EP8 crank, so for an EP801, or any other Shimano motor, check your motor's crank interface with our workshop before ordering.
  • Not the E8000/E7000 version.
  • Q-factor 182mm on an EP8.
  • No chainring is listed with the arms.
5DEV backs its products with a limited five-year warranty from the date of manufacture against defects in materials or workmanship. If 5DEV confirms a defect, it replaces the product with a comparable model. If you suspect a defect, stop riding and contact us before replacing any affected parts: 5DEV's warranty is void if another maker's component is fitted in place of the 5DEV part. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with 5DEV's Australian distributor.
  • Alloy eCranks for the Shimano EP8 motor
  • 7075-T651 aluminium, CNC-machined from billet in San Diego
  • 182mm Q-factor on EP8
  • M6 pinch-bolt fixing (14Nm) with a crank cap (8Nm)
  • 155, 160 or 165mm in black or raw, plus purple in 165mm
Brand5DEV
ModelShimano EP8 eCranks (5DEV code CS, earlier version)
MotorShimano EP8
DriveEP8 spline
Material7075-T651 aluminium, CNC-machined from billet
Q-factor182mm on EP8
Weight440g (160mm), 446g (165mm), with hardware
FixingCrank cap 8Nm (6mm hex); two M6 x 1.0 pinch bolts per arm, 14Nm (5mm hex), with thread locker
Made inSan Diego, California
Crank Length options155mm, 160mm, 165mm
Colour optionsBlack, Raw (all lengths); Purple (165mm)
SKU DSG-5DEVECRANKSHIM
Brand 5DEV
