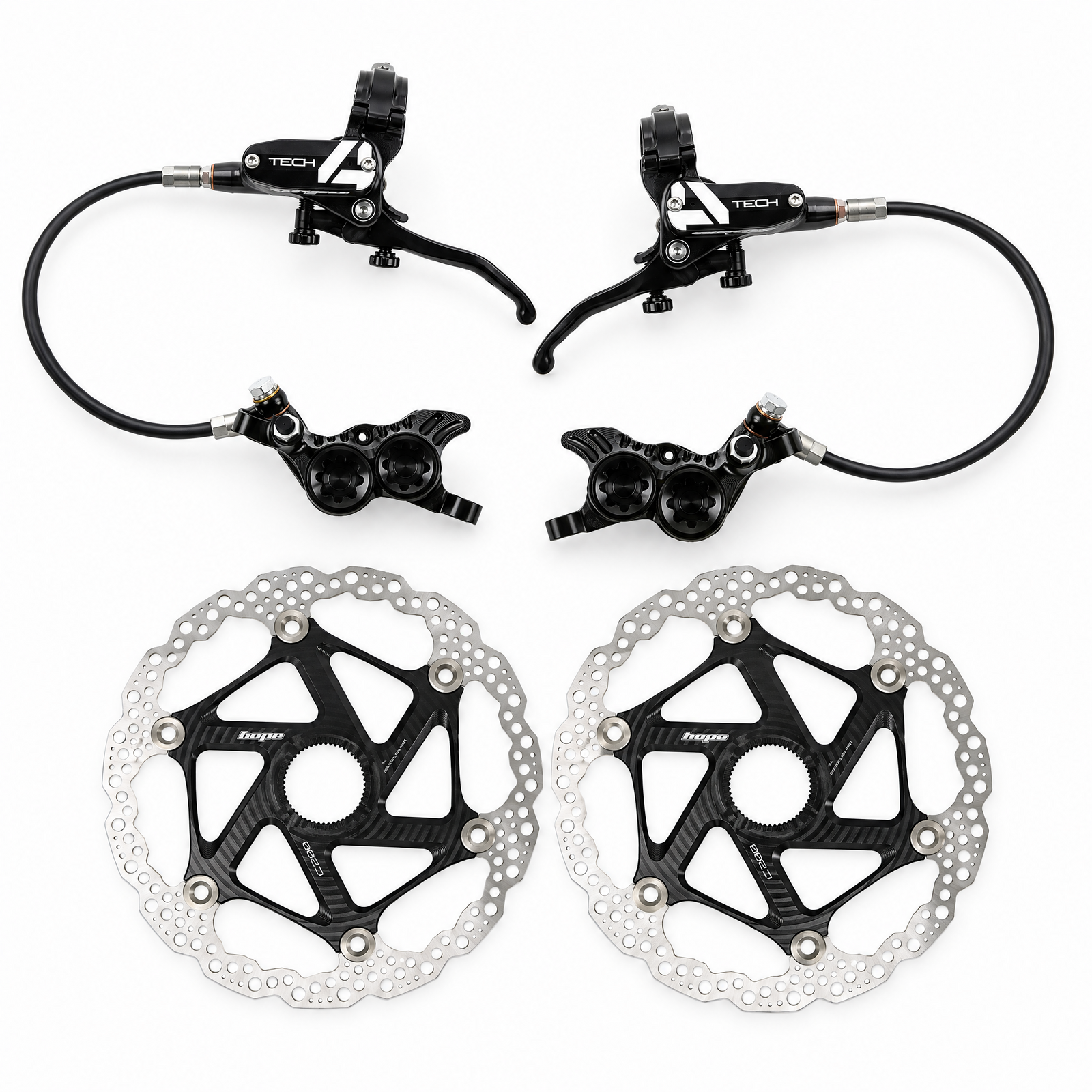

Hope Tech 4 V4 4-Piston hydraulic disc brakes, front and rear, with centre lock floating rotors

A complete Hope Tech 4 V4 brake set for gravity, enduro and e-bike riding: two fully bled Hope brakes - front with the right-hand lever, rear with the left-hand lever - plus a pair of Hope Floating Disc Centre Lock rotors (1.8 mm two-piece floating rotor, 410 stainless outer on a CNC alloy centre). Made in Barnoldswick, UK, and fitted by Tune Cycles.

Kit includes

Options

Brake colour: choose it on the front and rear rows - the first colour is the lever and caliper body, the second the accents; pick the same on both. Rotor sizes: Hope Floating Disc Centre Lock 180, 200, 220 mm (black centre; other colours on the rotor listings). The kit defaults to two 200 mm; set that row to 0 and pick another size, or mix sizes. Hope recommends 200 mm and larger for the V4. Rotor thickness the caliper takes: 1.8 to 3.3 mm (Vented, Floating, Fixed).

Fit-up parts, sold separately (linked here and shown with this kit): Hope brake mounts, black or silver for a rotor bigger than your fork or frame's native size (Hope's letter chart is on each listing), spare pads (racing compound V4 / GR4 / TR4, sintered V4 / GR4 / TR4, e-bike compound V4 / GR4 / TR4), and the Hope Easy Bleed Kit. Fluid: DOT 5.1 (DOT 4 compatible).

This kit is the Centre Lock version; the 6-bolt version is listed separately.

Already have rotors? Untick them and the price follows the parts you keep. Every part in this kit can be deselected, so a bike that only needs one end, or already has the right rotors, is not charged for the rest.

Fitting notes

Australian convention: the right-hand lever works the front brake and the left-hand lever the rear; the brakes are built that way. Hope ships every brake with a long hose, fully bled - most bikes need the hose shortened and the brake bled again, which is a workshop job (or the Easy Bleed Kit and Hope's instructions). Post-mount forks and frames take a rotor of their native size directly; a bigger rotor needs the matching Hope mount, and an IS mount always needs one. Centre Lock rotors need a Centre Lock hub and a lockring (40-50 N.m) - Hope’s anodised lockring is listed separately. Hope's Tech 4 has been succeeded by the Tech EVO range: this set is run-out stock. The V4 caliper is the only Hope caliper that takes the 3.3 mm Vented rotor. Hope notes the V4 is not compatible with every direct-mount 180 mm fork (fit the correct mount and a 200 mm rotor) nor with the 2021 Commencal Supreme DH 200 mm direct post mount.

Tune Cycles supplies, fits and bleeds these brakes. Choose your options above; if you are unsure what your fork, frame or hubs take, ask us before you order.

Every part in this kit is covered by Hope Technology's warranty: disc brake systems for two years from the date of purchase against defects in materials and workmanship (proof of purchase required), rotors against defects in materials and workmanship. Brake pads and rotors are wear items; wear from normal use, incorrect installation, crash damage or modification is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with Hope's Australian distributor.

  • V4: one-piece CNC caliper, four hybrid stainless pistons (two large, two small) with phenolic inserts
  • Tech 4: roller-bearing pivot, low-friction seals, hinged clamp, tool-free bite-point and reach adjust, 30-degree shifter mount - right lever front, left lever rear
  • Two fully bled brakes with black hose, supplied long and cut to length at fitting; Hope racing-compound pads fitted
  • Two 200 mm Hope Floating Disc Centre Lock rotors included (1.8 mm two-piece floating rotor, 410 stainless outer on a CNC alloy centre)
  • Rotor options: 180, 200, 220 mm - mix front and rear sizes
  • Rotor thickness for the caliper: 1.8 to 3.3 mm (Vented, Floating, Fixed)
  • Hydraulic system: DOT 5.1 (DOT 4 compatible)
  • Lever body black or silver with black / silver / blue / red / purple / orange accents
  • Sold separately, linked in the description: Hope brake mounts, spare pads, Easy Bleed Kit
  • Editable kit: deselect any part you already have; the price follows the parts you keep
Brand Hope Technology
Series Hope Tech 4
Caliper V4: one-piece CNC caliper, four hybrid stainless pistons (two large, two small) with phenolic inserts
Lever Tech 4: roller-bearing pivot, low-friction seals, hinged clamp, tool-free bite-point and reach adjust, 30-degree shifter mount
Build Two fully bled brakes: front (right lever) and rear (left lever)
Hose black hose, supplied long and cut to length at fitting
Pads fitted Hope racing compound, pad shape V4 (HBSP303)
Fluid DOT 5.1 (DOT 4 compatible)
Rotors included 2 x Hope Floating Disc Centre Lock 200 mm, black
Rotor options Floating Disc Centre Lock: 180, 200, 220 mm
Rotor thickness (caliper) 1.8 to 3.3 mm (Vented, Floating, Fixed)
Compatible pads Hope V4 (HBSP303) - racing, sintered, e-bike
Mounts (sold separately) Hope brake mounts, black or silver - letter per Hope's chart
Bleed kit (sold separately) Hope Easy Bleed Kit Tech 4 / EVO
Colours Black or silver body; black, silver, blue, red, purple, orange accents
Warranty Hope: two years on the brake system; through Tune Cycles
SKU HOP-T4V4-CL-BRAKESET
Brand Hope
