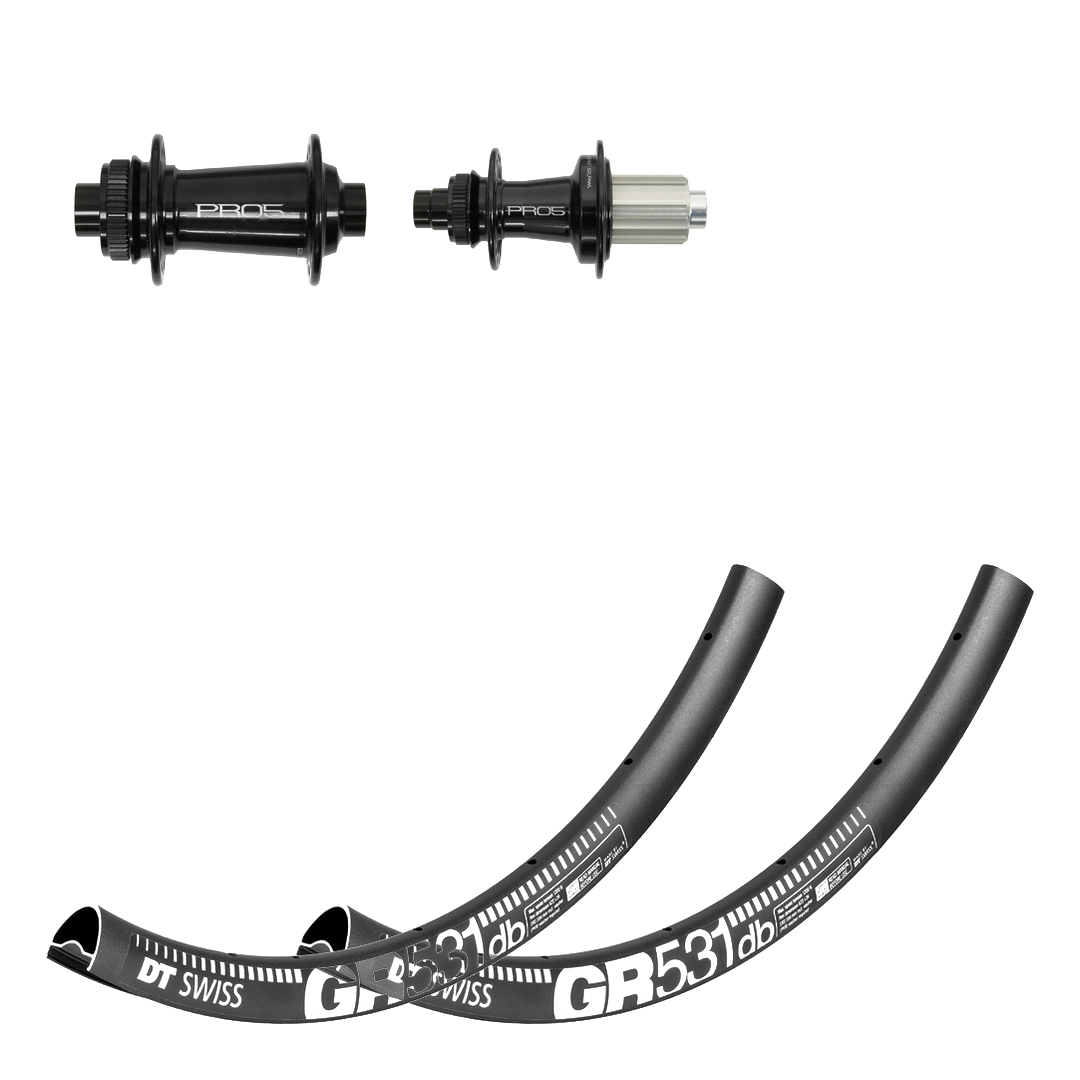

DT Swiss GR531 Hope Pro 5 hand-built wheelset

A DT Swiss GR531 rim set laced 28-spoke front and rear to Hope Pro 5 hubs, built by hand in our Marrickville workshop, tensioned, stress-relieved and trued before it leaves the bench. Our Pro wheel build and tubeless tape fitted are included and show as two free lines in your cart.

Before you order — what your bike decides

  • Wheel size — 700c or 650b: read it off your tyre sidewall (700 × 40C is 700c; 27.5 × 2.1 is 650b).
  • Rear axle — 12 × 142 only on this wheelset: measure the inside of the dropouts.
  • Front axle — 12 × 100 only on this wheelset: check the fork lowers.
  • Rotor mount — Centre Lock or 6-bolt: look at your rotors (six bolts, or a splined centre with a lockring).
  • Cassette — Shimano HG or SRAM XDR freehub body: Shimano and SRAM 11-speed road cassettes fit HG; SRAM 12-speed road needs XDR.

Choose the same rotor mount front and rear unless your rotors differ. Colour: pick front and rear separately.

Who it is for

For gravel and all-road riding on a disc-brake bike. Not for MTB use — an ASTM 2 rim. For a tougher rim for loaded bikepacking see the G540 kits.

The rider's questions

  • How much can it carry? Max system weight (rider, bike and gear) 130 kg — the DT Swiss GR531 rating, the lowest-rated part of the build.
  • What tyres fit? 32–50 mm tyres are DT's recommended range for a 24 mm inner width; the tyre's own maximum pressure applies, the rim sets none.
  • How fast does the hub engage? 108 points of engagement — Hope Pro 5 (6 pawls, 3 engaged), 3.33° between clicks.
  • Warranty? DT Swiss parts 24 months from purchase; Hope hubs under Hope's manufacturer warranty through the Australian distributor; our build work is guaranteed. Any claim comes back to Tune Cycles — see the Warranty tab.
  • How long does it take? Built to order from supplier stock — we confirm the build date by email when you order.
  • Colours? Hubs in Black, Silver, Blue, Bronze, Orange, Purple or Red; the rims are black.

Kit includes

Options: rim diameter 700c or 650b · rotor mount Centre Lock or 6-bolt · freehub Shimano HG or SRAM XDR · hub colour Black, Silver, Blue, Bronze, Orange, Purple or Red · tubeless valves (50 mm, up to 2).

Everything in the Wheelset box is built in. The rows under Upgrades are optional: tick what you want and the price updates. If you want us to lace a rim or hub you already own, that is a workshop job — contact us for a quote.

Sold separately (shown with this kit): tubeless sealant (Muc-Off No Puncture 140 ml), RT-CL700 160 mm Centre Lock rotor, a cassette for your freehub body, tyres to suit (sizes above). Rotors: one per wheel, to match your rotor mount and your brake caliper's size range.

How we build it

Every wheel is laced by hand in Marrickville, brought up to tension evenly to the lower of the rim and hub limits (1200 N), stress-relieved and trued, then checked again before it is packed. Tubeless tape (27 mm) is fitted to the rim; add valves and sealant and it is ready for tyres.

Tune Cycles builds and fits these wheels. If you are unsure what your frame, fork or drivetrain takes, ask us before you order.

DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Hope hubs are covered by Hope's manufacturer warranty against manufacturing defects, handled through the Australian distributor. Our build — lacing, tension and truing — carries our workmanship guarantee. Any claim comes back to Tune Cycles: bring the wheel to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.

  • DT Swiss GR531 rims — 24 mm internal, welded, PHR spoke bed, ASTM 2; 700c or 650b
  • Hope Pro 5 hubs — 108 points of engagement, Hope Pro 5 (6 pawls, 3 engaged); Centre Lock or 6-bolt; 12 × 100 or 12 × 142; freehub Shimano HG or SRAM XDR
  • Spokes — 28 × DT Competition front, 28 × DT Competition rear; the DT Pro Lock Squorx nipples supplied with the rims
  • Your bike's fit from the dropdowns: size, mount, freehub, colour — nothing is pre-selected, choose each one
  • Hand-laced, tensioned, stress-relieved and trued in Marrickville — Pro wheel build and tubeless tape included (two free lines in your cart)
  • Editable kit: the Upgrades rows are optional and the price follows what you tick
  Front Rear
Rim DT Swiss GR531 DT Swiss GR531
Rim construction welded, PHR spoke bed welded, PHR spoke bed
Diameters offered 700c or 650b 700c or 650b
Internal width 24 mm 24 mm
Rim depth 25 mm 25 mm
ERD 650b 556 mm, 700c 594 mm 650b 556 mm, 700c 594 mm
Spoke holes 28H 28H
Hub Hope Pro 5 Hope Pro 5
Axle 12 × 100 12 × 142
Rotor mount Centre Lock 6-bolt or Centre Lock
Freehub bodies — Shimano HG or SRAM XDR
Engagement — 108 POE — Hope Pro 5 (6 pawls, 3 engaged)
Spokes 28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes 28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes
Nipples The DT Pro Lock Squorx nipples supplied with the rims The DT Pro Lock Squorx nipples supplied with the rims
Tape fitted 27 mm tubeless tape 27 mm tubeless tape
Valves optional, 50 mm tubeless valves optional, 50 mm tubeless valves
Max spoke tension 1200 N 1200 N
Max system weight 130 kg (rider, bike and gear) 130 kg (rider, bike and gear)
Tyre width 32–50 mm recommended 32–50 mm recommended
Intended use Gravel — ASTM 2 Gravel — ASTM 2
Warranty DT Swiss parts 24 months from purchase; Hope hubs under Hope's manufacturer warranty through the Australian distributor DT Swiss parts 24 months from purchase; Hope hubs under Hope's manufacturer warranty through the Australian distributor
Built by Tune Cycles, Marrickville — Pro wheel build and tubeless tape included Tune Cycles, Marrickville — Pro wheel build and tubeless tape included
SKU WHL-BUILD-GR531-PRO5-28H
Brand DT Swiss
