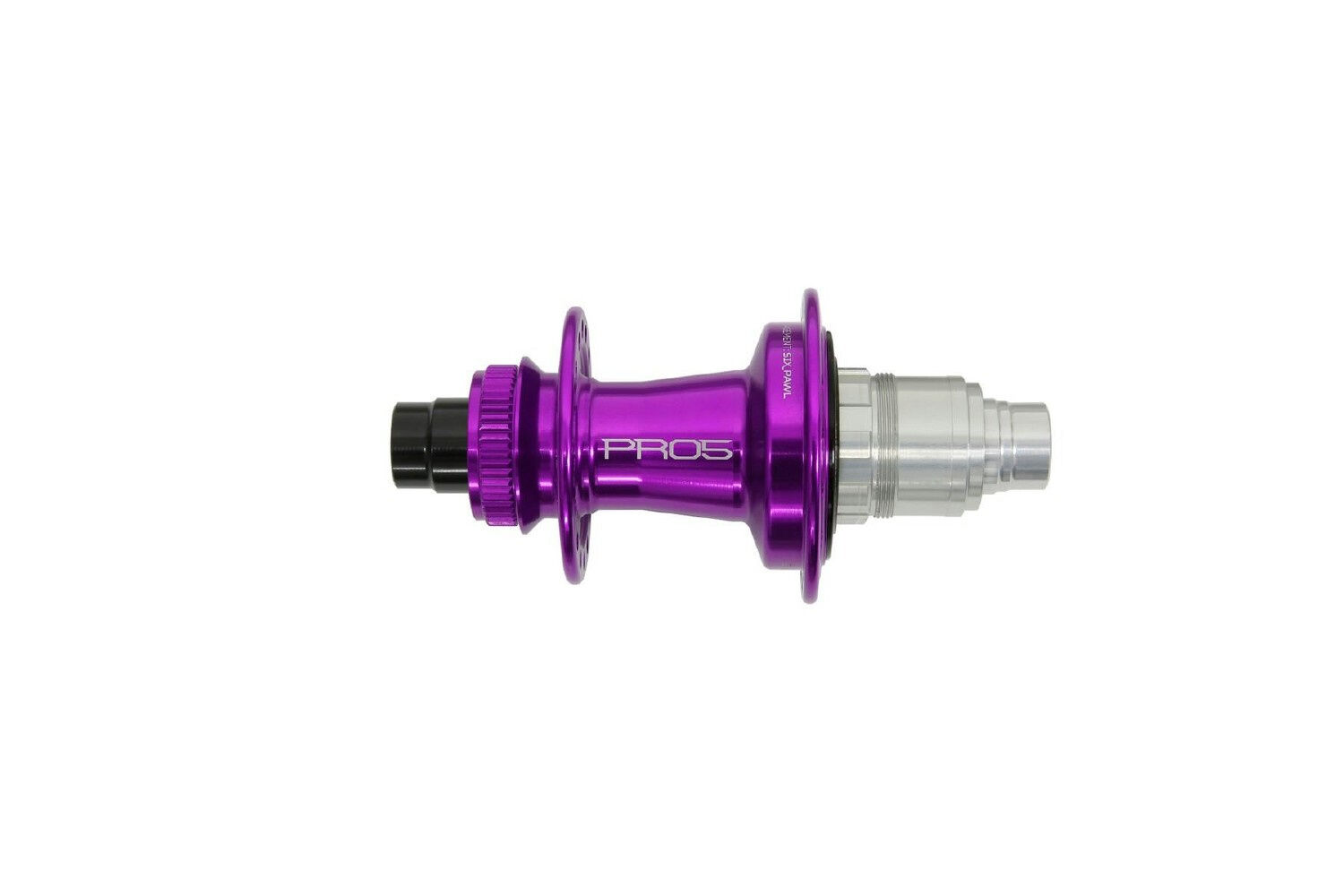

Hope Pro 5 Rear Hub 142x12 Centre Lock - Purple 28H XDR
SKU code: BSP-HOPH5R142CL-PU-28XDR
In Stock
The Hope Pro 5 rear hub in 142x12 - the thru-axle standard on road and gravel disc frames and on mountain bikes from before Boost - drilled 28 hole for road and gravel wheel builds. The same hub as the Boost Pro 5: 108-point engagement from an offset six-pawl freehub (up from 44 on the Pro 4), a zero-drag labyrinth seal, a step-down axle that stiffens the freehub under load and a hub shell machined from forged 2014 T6 aluminium. Fully rebuildable with simple tools; bearings, pawls, springs and freehub bodies are all stocked as spares.

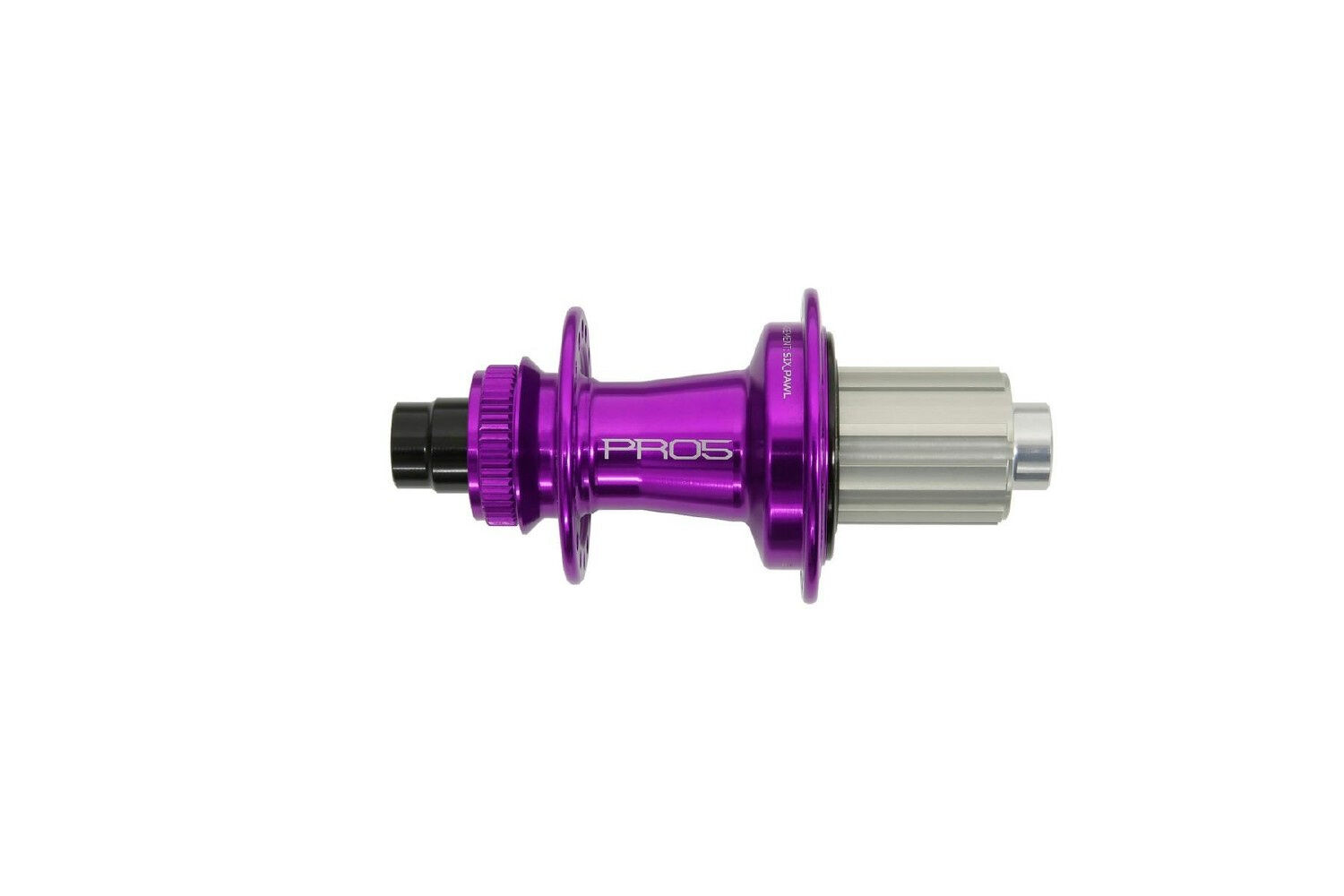

Choose in the dropdowns: the rotor mount under Hub Dimensions - 12/142 Centre Lock for road and gravel wheels, or 12/142 6-Bolt (Shimano HG only) for older 142 mm MTB frames; the colour; and the freehub - Shimano HG (Shimano and SRAM 8-11 speed, HG 12-speed road) or SRAM XDR (SRAM road and gravel 12-speed - Red, Force, Rival, Apex AXS XPLR).
Micro Spline and SRAM XD drivers are 32-hole in this axle - see the 32H hub, or ask us. Hope's end spacers swap to other axle standards.
Hope Technology warrants its hubs against defects in materials and workmanship. Warranty claims for this product should be directed to Tune Cycles: return the item to us with proof of purchase and we manage the claim with Hope's Australian distributor on your behalf. Bearings, pawls, springs and freehub bodies are service items and are stocked as spares.
- 108-point engagement (offset 6-pawl) - faster pickup, more responsive pedalling
- Zero-drag labyrinth seal keeps mud out with no friction penalty
- Step-down axle stiffens the freehub interface for better power transfer
- Hub shell machined from forged 2014 T6 aluminium; sealed stainless cartridge bearings
- 142x12 thru-axle: road and gravel disc frames, and pre-Boost mountain bikes
- Centre Lock or 6-bolt rotor mount; Shimano HG or SRAM XDR freehub body
- 28 hole for road and gravel builds
- Fully rebuildable and serviceable; made in Barnoldswick, UK
| Specification | Value |
|---|---|
| Axle Standard | Thru-axle 12 mm |
| OLD (Over Locknut Distance) | 142 mm |
| Disc Mount | Centre Lock or 6-bolt (select under Hub Dimensions) |
| Spoke Count | 28 hole |
| Engagement Points | 108 |
| Freehub Design | Offset 6-pawl |
| Freehub Body | Shimano HG or SRAM XDR (select under Freehub Body) |
| Sealing | Labyrinth seal (zero drag) |
| Colours | Black, Silver, Red, Blue, Orange, Purple, Bronze |
| Position | Rear |
| SKU | BSP-HOPH5R142-28H |
| Brand | Hope |
