DT Swiss FR541-350 Heavy Duty Gravel Bike Disc Wheelset

Ride Style

The FR541 rim paired with the DT 350 hub is hand-built for riders who engage in aggressive trail riding, all-mountain, or enduro disciplines. This combination offers a good balance of strength and weight, making it ideal for riders who prioritise durability while still wanting to maintain decent performance on climbs and descents.

Tyre Width
The optimal tire width for the FR541 rim typically ranges from 2.3 to 2.6 inches, allowing for a good balance of traction and stability.

Ride Weight (inc Bike)
The rider weight capacity for this setup is generally around 120 kg, Max system weight is 140kg.

Key Features

Freeride Rims

These rims are built to take the hits. Available is 29", 27.5" and mixed to make Mullt Wheel Builds

Pinch Flat Protection

Wider rim edge reduces pinch flats by 17% allowing you to hit the rock gardens with more confidence.

DT Swiss Star Ratchet

The 350 hub uses DT Swiss' classic star-ratchet system. The benchmark for the last 25 years of cycling and immitated by all others.

Tool Free Servicing

Its tool free and easy to remove the freehub body and gain access to the star ratchet system. This ensures easy maintenance and regreasing after wet rides.

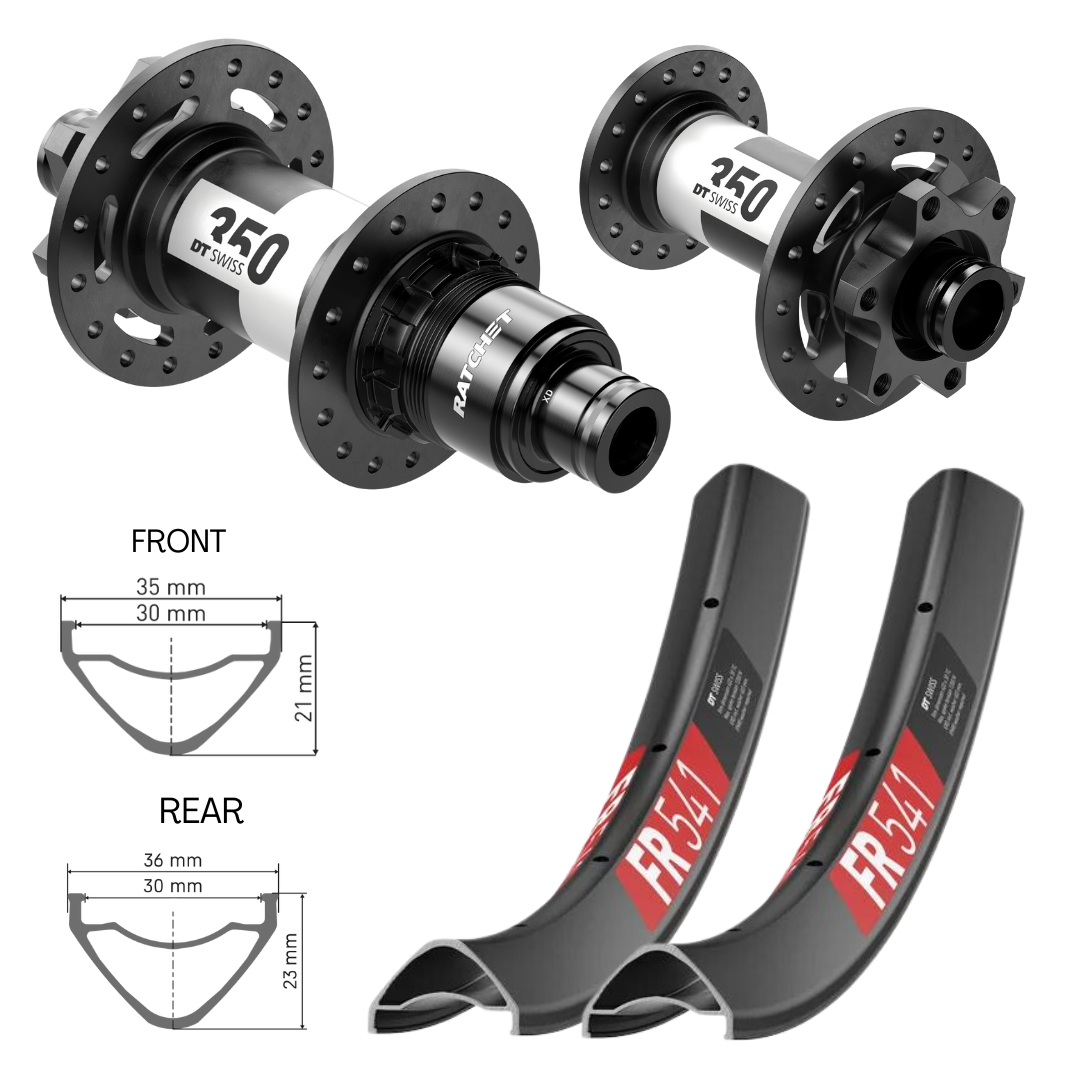

Key Specs

Rims
DT Swiss FR541 Rims in 29", 27.5"

Spokes
Built with black straight gauge spokes. Upgrade with black or silver double butted Competition spokes, Pillar PSR Oil Slick or triple butted spokes for eMTB.

Nipples
Built with DT Squorx Pro-Lock nipples or choose to upgrade to brass pro-lock nipples for longer life.

Front Hub
DT Swiss 350 Hub available in 6-bolt or centerlock disc brake and standard or boost axle width.

Rear Hub
DT Swiss 350 Hub available in 6-bolt or centerlock disc brake, in standard, boost or superboost width with HG, MS or XD Freehub body.

Bearings
Equipped with high-quality sealed bearings, it ensures smooth rotation and minimal maintenance over time.

Tyre Info
The optimal tyre width for this setup is typically around 2.3 to 2.5 inches.

Axle Sizes
Custom build front hub with 15/100, axles and the rear in 12/142.

Handbuilt
These wheels are handbuilt by our team prior to shipping

Incredible value with the option to upgrade to 54T star ratchet in the future.

DT Swiss FR541 Rim

The FR 541 may not be your first rim, but it aspires to be the last. The new rim shape improves the impact resistance, enabling you to push a little harder on the trails. It also enhances the pinch flat protection for a trusty ride on rougher tracks. Build this rim with care and it will reward you with resistance and lightness for a long-lasting bond.

DT Swiss 350 Boost MTB 32H Hubset

With DT Swiss’ new 350, reliability has never been more important. This new state of the arch Swiss technology fits perfectly in the centrelock rotor to make sure it remains safe and intact. Its 32 holes with a 6-bolt Disc relies on the strong materials used to create it. Although a small part its clever details reinforce the transfer of the highest of loads and make it more aerodynamic, so you don’t need to worry about bulk. Able to withstand the tension of the strongest pedaling power, the 350 gives athletes reliable direct power transmission.

Threadlock/Prolock Nipples

Please note that DT is in the process of phasing out "Squorx" Nipples. Pro Lock is a process where a dual compound, adhesive liquid is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and starts to harden. Re-truing the wheel is still possible after the adhesive has hardened completely, with only a minimal decrease of its thread-lock function.

Warranty Information

Coverage Details

The DT Swiss FR571-350 Heavy Duty Gravel Bike Disc Wheelset is backed by a comprehensive 2-year manufacturer warranty against manufacturing defects from the date of purchase.

What's Covered

Manufacturing defects in materials and workmanship
Hub bearing failures under normal use conditions
Rim structural integrity issues
Spoke tension and wheel trueness defects

What's Not Covered

Normal wear and tear from regular cycling use
Damage from crashes, impacts, or accidents
Modifications or repairs by unauthorized service centers
Damage from improper installation or maintenance
Cosmetic damage that doesn't affect performance

Making a Warranty Claim

For warranty claims on your DT Swiss FR571-350 wheelset:

Contact Tune Cycles with your proof of purchase
Provide detailed description of the issue
Allow our certified technicians to inspect the wheelset
We'll coordinate directly with DT Swiss for warranty processing

Important Notes

Road Cyclist and Gravel Bike enthusiasts can ride with confidence knowing their investment is protected. This warranty applies to both recreational and competitive cycling use.

For complete warranty terms and conditions, visit the official DT Swiss website or contact Tune Cycles for assistance.

Warranty valid in Australia through authorized DT Swiss dealers. Tune Cycles is an authorized service center for all DT Swiss warranty claims.

Key Features:

Heavy-Duty Construction: Built with robust FR541 front made from durable aluminum for reliable heavy-duty touring and gravel adventures
DT 350 Hub Technology: Features precision-engineered DT 350 hubs with thru-axle compatibility for ultimate reliability and performance
Wide Internal Rim Width: 30mm internal width on rear rim and 30mm on front rim provides excellent tire stability and allows for lower air pressures on rough terrain
Tubeless Ready System: Compatible with tubeless tires for reduced rolling resistance, better puncture protection, and enhanced ride quality
32-Spoke Configuration: Both front and rear wheels feature 32 spokes for optimal strength, durability, and reliability during intense gravel adventures
Disc Brake Compatibility: 6-bolt disc brake mounting system ensures powerful and consistent braking performance in all weather conditions
Lightweight Performance: Approximately 1900g wheelset weight delivers an optimal balance between durability and performance for gravel cycling
650b Wheel Size: 27.5-inch diameter wheels with 25mm rim depth provide excellent acceleration and maneuverability on varied terrain
Versatile Terrain Capability: Engineered to excel on any terrain from rugged trails to smooth roads, perfect for gravel enthusiasts and explorers
Precision Engineering: DT Swiss quality construction ensures unparalleled reliability and performance backed by the brand's reputation for innovation in cycling technology

Specification	Details
Overall Weight	1900g (per wheelset)
Rim Diameter	650b (27.5 inches)
Overall Wheel Diameter	68.9 cm
Rim Depth	25mm
Internal Width - Front (FR541)	30mm
Internal Width - Rear (FR571)	30mm
Rim Material	Aluminum
Spoke Count	32 spokes (front and rear)
Hub Model	DT 350
Axle Type	Thru Axle (adaptable)
Brake Compatibility	Disc brakes (6-bolt)
Tubeless Ready	Yes

SKU	WHL-BUILD-FR541-350-GRAV
Barcode #
Brand	DT Swiss
Shipping Weight	5.0000kg
Shipping Width	0.660m
Shipping Height	0.130m
Shipping Length	0.660m
Shipping Cubic	0.056628000m3
