Ride Style

The FR541 rim paired with the DT 350 hub is hand-built for riders who engage in aggressive trail riding, all-mountain, or enduro disciplines. This combination offers a good balance of strength and weight, making it ideal for riders who prioritise durability while still wanting to maintain decent performance on climbs and descents.



Tyre Width
The optimal tire width for the FR541 rim typically ranges from 2.3 to 2.6 inches, allowing for a good balance of traction and stability.

Ride Weight (inc Bike)
The rider weight capacity for this setup is generally around 120 kg, Max system weight is 140kg.





Key Features





Freeride Rims

These rims are built to take the hits.  Available is 29", 27.5" and mixed to make Mullt Wheel Builds

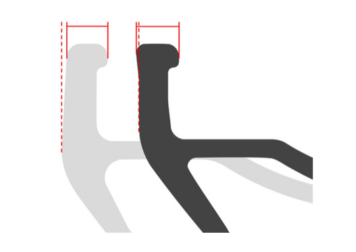

Pinch Flat Protection

Wider rim edge reduces pinch flats by 17% allowing you to hit the rock gardens with more confidence.

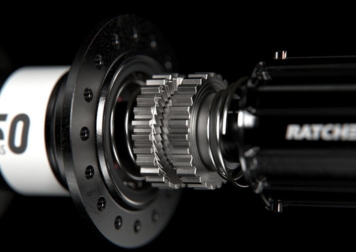

DT Swiss Star Ratchet

The 350 hub uses DT Swiss' classic star-ratchet system.  The benchmark for the last 25 years of cycling and immitated by all others.

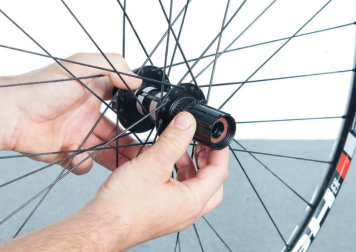

Tool Free Servicing

Its tool free and easy to remove the freehub body and gain access to the star ratchet system.  This ensures easy maintenance and regreasing after wet rides.














Key Specs



Rims
DT Swiss FR541 Rims in 29", 27.5" or Mullet.



Spokes
Built with black straight gauge spokes.  Upgrade with black or silver double butted Competition spokes, Pillar PSR Oil Slick or triple butted spokes for eMTB.



Nipples
Built with DT Squorx Pro-Lock nipples or choose to upgrade to brass pro-lock nipples for longer life.



Front Hub
DT Swiss 350 Hub available in 6-bolt or centerlock disc brake and standard or boost axle width.



Rear Hub
DT Swiss 350 Hub available in 6-bolt or centerlock disc brake, in standard, boost or superboost width with HG, MS or XD Freehub body.



Bearings
Equipped with high-quality sealed bearings, it ensures smooth rotation and minimal maintenance over time.



Tyre Info
The optimal tyre width for this setup is typically around 2.3 to 2.5 inches.



Axle Sizes
Custom build front hub with 15/110, 15/100, 20/110 axles and the rear in 12/142, 12/148, 12/157.

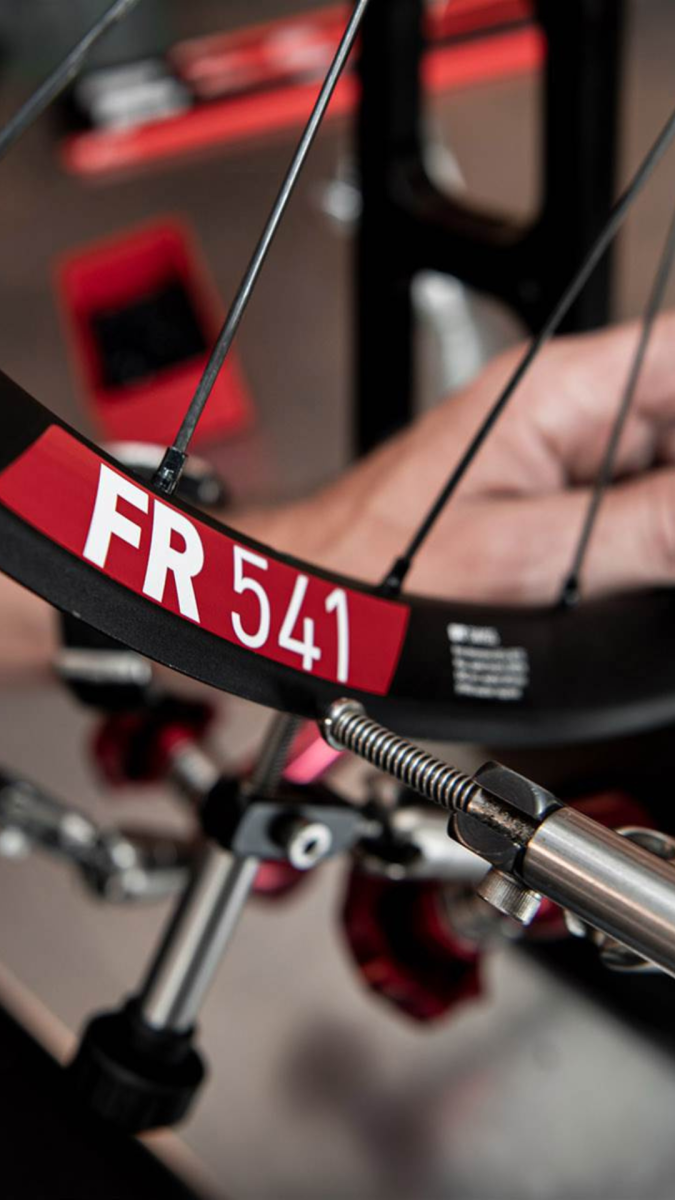

Handbuilt
These wheels are handbuilt by our team prior to shipping





Incredible value with the option to upgrade to 54T star ratchet in the future.

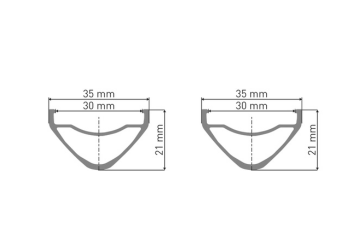

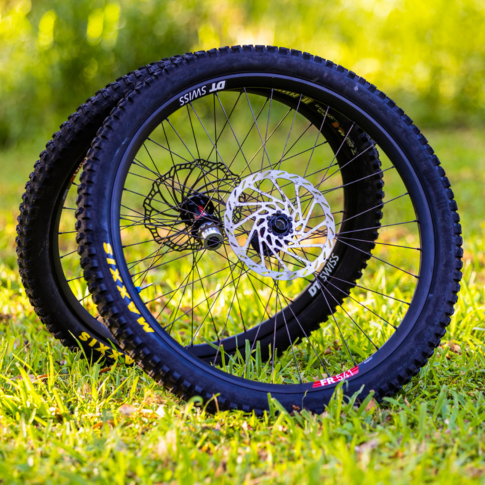

DT Swiss FR541 Rim

The FR 541 may not be your first rim, but it aspires to be the last. The new rim shape improves the impact resistance, enabling you to push a little harder on the trails. It also enhances the pinch flat protection for a trusty ride on rougher tracks. Build this rim with care and it will reward you with resistance and lightness for a long-lasting bond.

DT Swiss 350 Boost MTB 32H Hubset

With DT Swiss’ new 350, reliability has never been more important. This new state of the arch Swiss technology fits perfectly in the centrelock rotor to make sure it remains safe and intact. Its 32 holes with a 6-bolt Disc relies on the strong materials used to create it. Although a small part its clever details reinforce the transfer of the highest of loads and make it more aerodynamic, so you don’t need to worry about bulk. Able to withstand the tension of the strongest pedaling power, the 350 gives athletes reliable direct power transmission.

Threadlock/Prolock Nipples

Please note that DT is in the process of phasing out "Squorx" Nipples.  Pro Lock is a process where a dual compound, adhesive liquid is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and starts to harden. Re-truing the wheel is still possible after the adhesive has hardened completely, with only a minimal decrease of its thread-lock function.

DT Swiss FR541 Rim

  • IMPROVED PINCHFLAT PROTECTION
    Tests conducted with a leading tire supplier showed a 17% increase in pinch flat resistance compared to the previous FR 560 rim.
  • AVAILABLE IN 29" AND 650B WITH 28 OR 32 SPOKE COUNT
    Ride in full 29", full 27,5" or mullet. The FR 541 is available in both sizes and both sizes are available in 28 or 32 spoke count.
  • WELDED RIM
    The welding process on aluminum rims is the most resistant joining method of the DT Swiss aluminum portfolio.
  • INCREASE RESISTANCE WITH PHR SYSTEM
    The PHR system increases the load-bearing surface of the nipples on the rim and reduces localized stresses.
  • PERSONALIZE YOUR RIDE
    The FR 541 comes with three additional stickers to match your style.

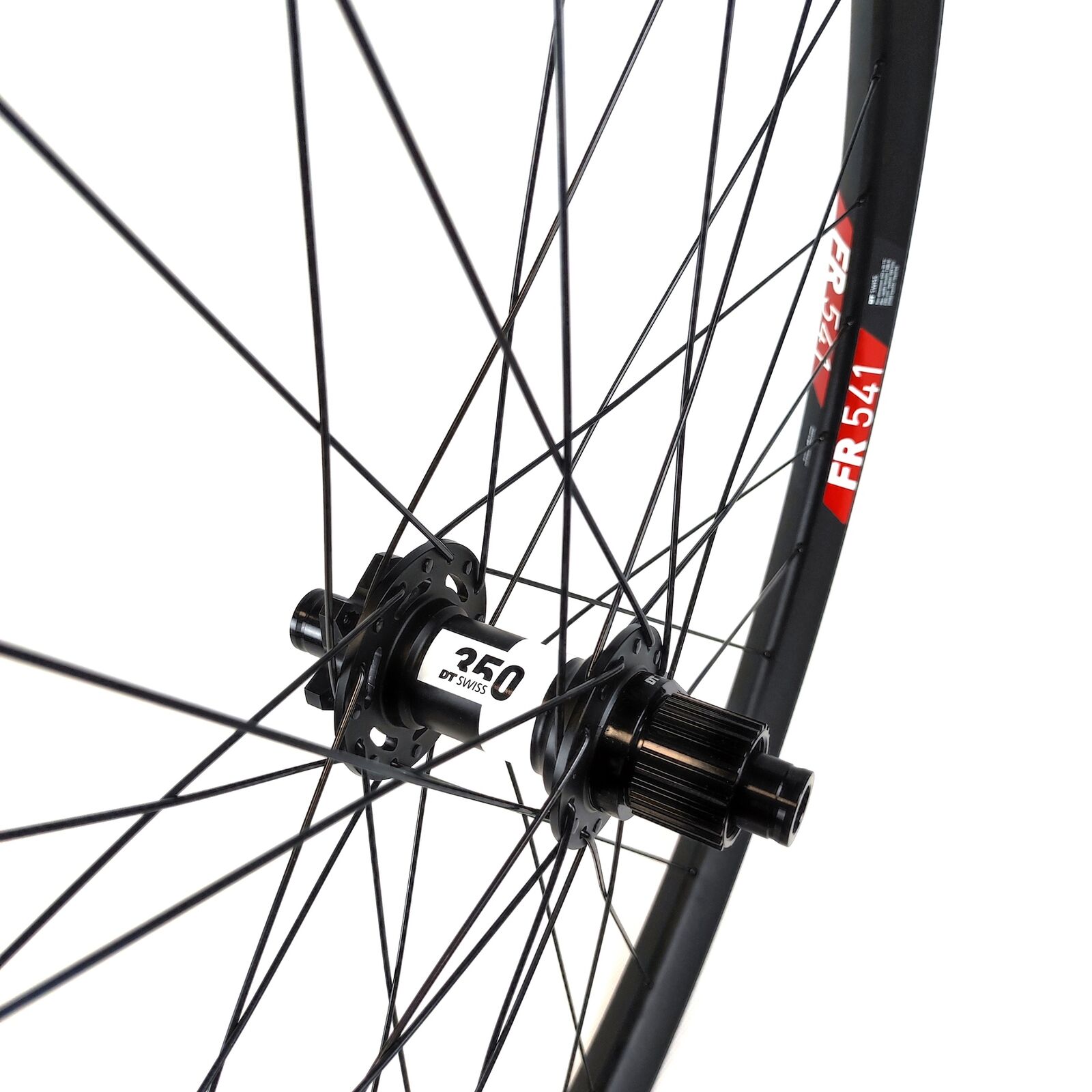

DT Swiss 350 Boost 32H Hubset

  • 32 Hole
  • 6-bolt
  • MTB recommended
  • 12mm Thru Axle
  • 157mm Boost
  • Material Aluminum
  • 277g
  • 36 SL Ratchet System





FRONT

REAR

Rim

DT Swiss FR541 DT Swiss FR541

Diameter

29" or 27.5"  29" or 27.5"

Internal Width

30mm 30mm

Depth

21mm 21mm

Usage

Gravity Gravity

Rec. Tyre Width

2.2" to 2.6" 2.2" to 2.6"

Weight

605g | 570g 605g | 570g

Spoke Count

32 32





Hub

DT Swiss 350 DT Swiss 350

Hub Spacing

Boost (110mm)  12/148mm Boost
12/157mm Super Boost
12/150mm (with adapters)

Rotor Mounts

6-Bolt
Centrelock
6-Bolt
Centrelock

Freehub

N/A Microspline, XD or HG

P.O.E (Engagement)

N/A 36T (10 Degrees)
Upgradable to 52T

Weight

158g 259g





Spokes

DT Swiss Champion
Upgradable to Competition Black

DT Swiss Champion
Upgradable to Competition Black

Nipples

Alloy Squorx Prolock
Upgradable to Brass

Alloy Squorx Prolock
Upgradable to Brass

Weight

6.2g (each) 6.2g (each)



SKU WHL-BUILD-FR541-350
Barcode #
Brand DT Swiss
