Ride Style

The EX511 rim on the front drops the wheelset wieght by ~70g (28H) while the FR541 rear rim still takes the hits.  Great for smooth, lightweight riders who love hitting aggressive trail riding, all-mountain, or enduro disciplines.



Tyre Width
The optimal tire width for the FR541 rim typically ranges from 2.3 to 2.6 inches, allowing for a good balance of traction and stability.

Ride Weight (inc Bike)
The rider weight capacity for this setup is generally around 110 kg, Max system weight is 140kg.





Key Features





Freeride & Enduro Rim combos

These rims are built to take the hits.  Available is 29", 27.5" and mixed to make Mullt Wheel Builds

Rear Pinch Flat Protection

Wider rim edge on the rear reduces pinch flats where they happen most while keeping the front wheel nimble and light.

DT Swiss 36T Star Ratchet

The 350 hub uses DT Swiss' classic star-ratchet system.  The benchmark for the last 25 years of cycling and immitated by all others.

Tool Free Servicing

Its tool free and easy to remove the freehub body and gain access to the star ratchet system.  This ensures easy maintenance and regreasing after wet rides.














Key Specs



Rims
DT Swiss FR541 Rim on the rear in 29", 27.5" or Mullet
DT Swiss EX511 Rim on the front in 32H or 28H



Spokes
Built with black straight gauge spokes.  Upgrade with black or silver double butted Competition spokes, Pillar PSR Oil Slick or triple butted spokes for eMTB.



Nipples
Built with DT Squorx Pro-Lock nipples or choose to upgrade to brass pro-lock nipples for longer life.



Front Hub
DT Swiss 350 Hub available in 6-bolt or centerlock disc brake and standard or boost axle width.



Rear Hub
DT Swiss 350 Hub available in 6-bolt or centerlock disc brake, in standard, boost or superboost width with HG, MS or XD Freehub body.



Bearings
Equipped with high-quality sealed bearings, it ensures smooth rotation and minimal maintenance over time.



Tyre Info
The optimal tyre width for this setup is typically around 2.3 to 2.5 inches.



Axle Sizes
Custom build front hub with 15/110, 15/100, 20/110 axles and the rear in 12/142, 12/148, 12/157.



Handbuilt
These wheels are handbuilt by our team prior to shipping

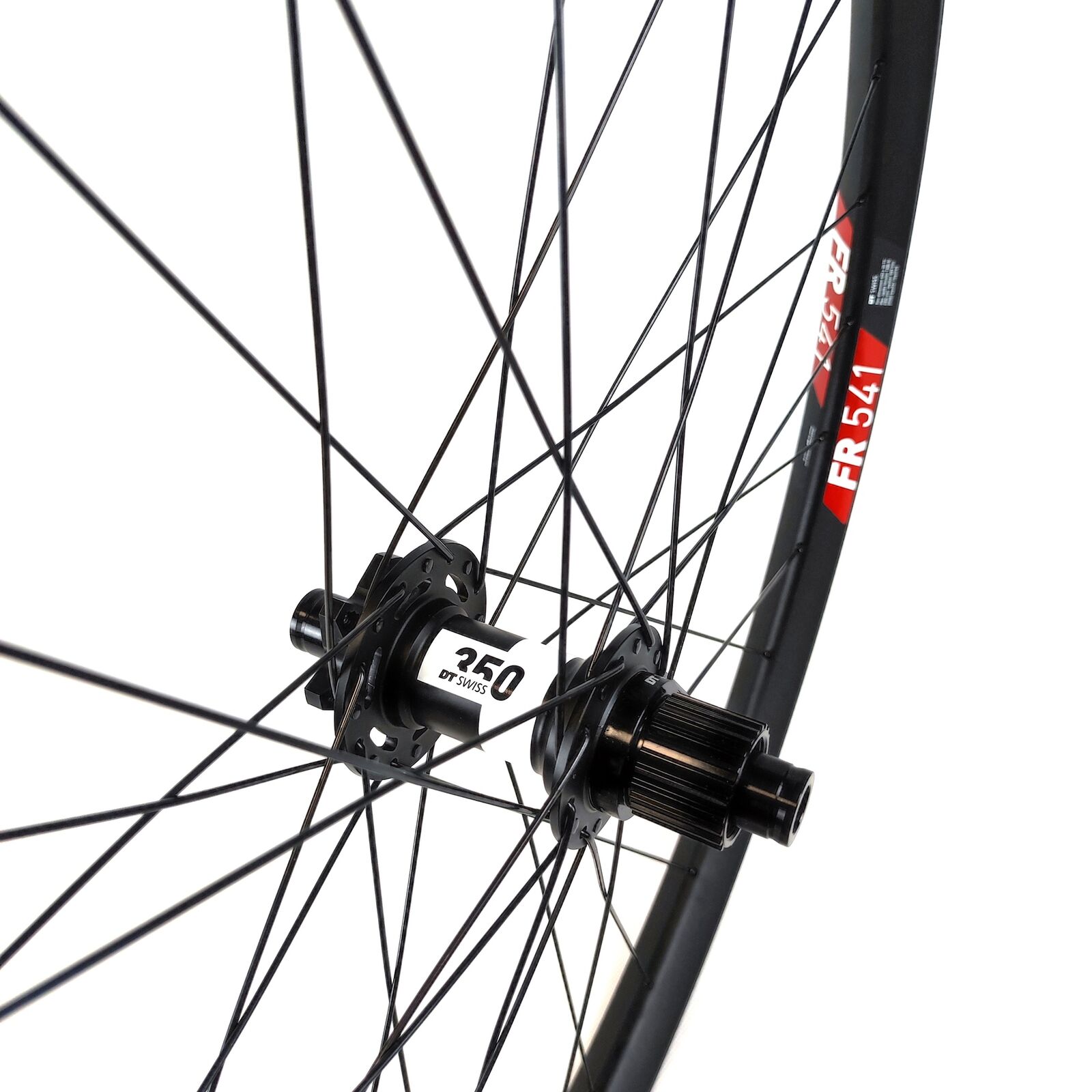

Our most popular combo. DT Swiss' race-winning Enduro rim on the front with a DH rear to take the hits.  Laced to the 350 Hub this wheelset is insanely good value.



FRONT

REAR

Rim

DT Swiss EX511 DT Swiss FR541

Diametre

29" or 27.5"  29" or 27.5"

Internal Width

30mm 30mm

Depth

21mm 21mm

Usage

Enduro Freeride, Downhill

Rec. Tyre Width

2.2" to 2.6" 2.2" to 2.6"

Weight

570g | 535g 605g | 570g

Spoke Count

32 32





Hub

DT Swiss 350 DT Swiss 350

Hub Spacing

Boost (110mm)

Boost (148mm)
DH (150mm)
Super Boost (157mm)

Rotor Mounts

6-Bolt
Centrelock

6-Bolt
Centrelock

Freehub

N/A Microspline, XD or HG

P.O.E (Engagement)

N/A 36T (10 Degrees)
Upgradable to 52T

Weight

144g 259g





Spokes

Straight Guage 14g Spokes

Upgrade to DT Swiss Competition Black

Straight Guage 14g Spokes

Upgrade to DT Swiss Competition Black

Nipples

Squorx Prolock Alloy

Upgrade to brass optional

Squorx Prolock Alloy

Upgrade to brass optional

Weight

6.2g (each) 6.2g (each)

DT Swiss FR541 Rim

The FR 541 may not be your first rim, but it aspires to be the last. The new rim shape improves the impact resistance, enabling you to push a little harder on the trails. It also enhances the pinch flat protection for a trusty ride on rougher tracks. Build this rim with care and it will reward you with resistance and lightness for a long-lasting bond.

DT Swiss EX511 Rim

Enduro may be young as a discipline, but at its core is the intrinsic need of riders to ride burlier terrain faster and faster. Something that MTB was all about since the beginning. The EX 511 rim is the perfect tool for this quest: It comes with all the technology that has delivered many EWS wins and packs it in a 30 mm wide profile. Ready to go burlier, faster.

DT Swiss 350 Boost MTB 32H Hubset

With DT Swiss’ new 350, reliability has never been more important. This new state of the arch Swiss technology fits perfectly in the centrelock rotor to make sure it remains safe and intact. Its 32 holes with a 6-bolt Disc relies on the strong materials used to create it. Although a small part its clever details reinforce the transfer of the highest of loads and make it more aerodynamic, so you don’t need to worry about bulk. Able to withstand the tension of the strongest pedaling power, the 350 gives athletes reliable direct power transmission.

Competition Spokes

This is one of the most versatile spokes in the DT Swiss spoke range. DT Competition gets its special strength from cold forging. This makes it not only extremely durable but thanks to the thinner middle section, it is 48 g lighter than a spoke with a constant diameter of 1.8 mm. The balanced relation between strength and weight of its 2.0 mm counterpart allows for a wide range of uses, from road wheels to super-light Enduro MTB wheels. Weight: from 311 g for 64 spokes at a length of 264 mm.

Squorx Prolock Nipples

Pro Lock is a process where a dual compound, adhesive liquid is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and starts to harden. Re-truing the wheel is still possible after the adhesive has hardened completely, with only a minimal decrease of its thread-lock function.



FRONT

REAR

Rim

DT Swiss EX511 DT Swiss FR541

Diametre

29" or 27.5"  29" or 27.5"

Internal Width

30mm 30mm

Depth

21mm 21mm

Usage

Enduro Freeride, Downhill

Rec. Tyre Width

2.2" to 2.6" 2.2" to 2.6"

Weight

570g | 535g 605g | 570g

Spoke Count

32 32





Hub

DT Swiss 350 DT Swiss 350

Hub Spacing

Boost (110mm)

Boost (148mm)
DH (150mm)
Super Boost (157mm)

Rotor Mounts

6-Bolt
Centrelock

6-Bolt
Centrelock

Freehub

N/A Microspline, XD or HG

P.O.E (Engagement)

N/A 36 (10 Degrees)

Weight

144g 259g





Spokes

DT Swiss Competition Black DT Swiss Competition Black

Nipples

Brass Squorx Prolock Black Brass Squorx Prolock Black

Weight

6.2g (each) 6.2g (each)
SKU WHL-BUILD-DH-350-MIX
Barcode #
Brand DT Swiss
