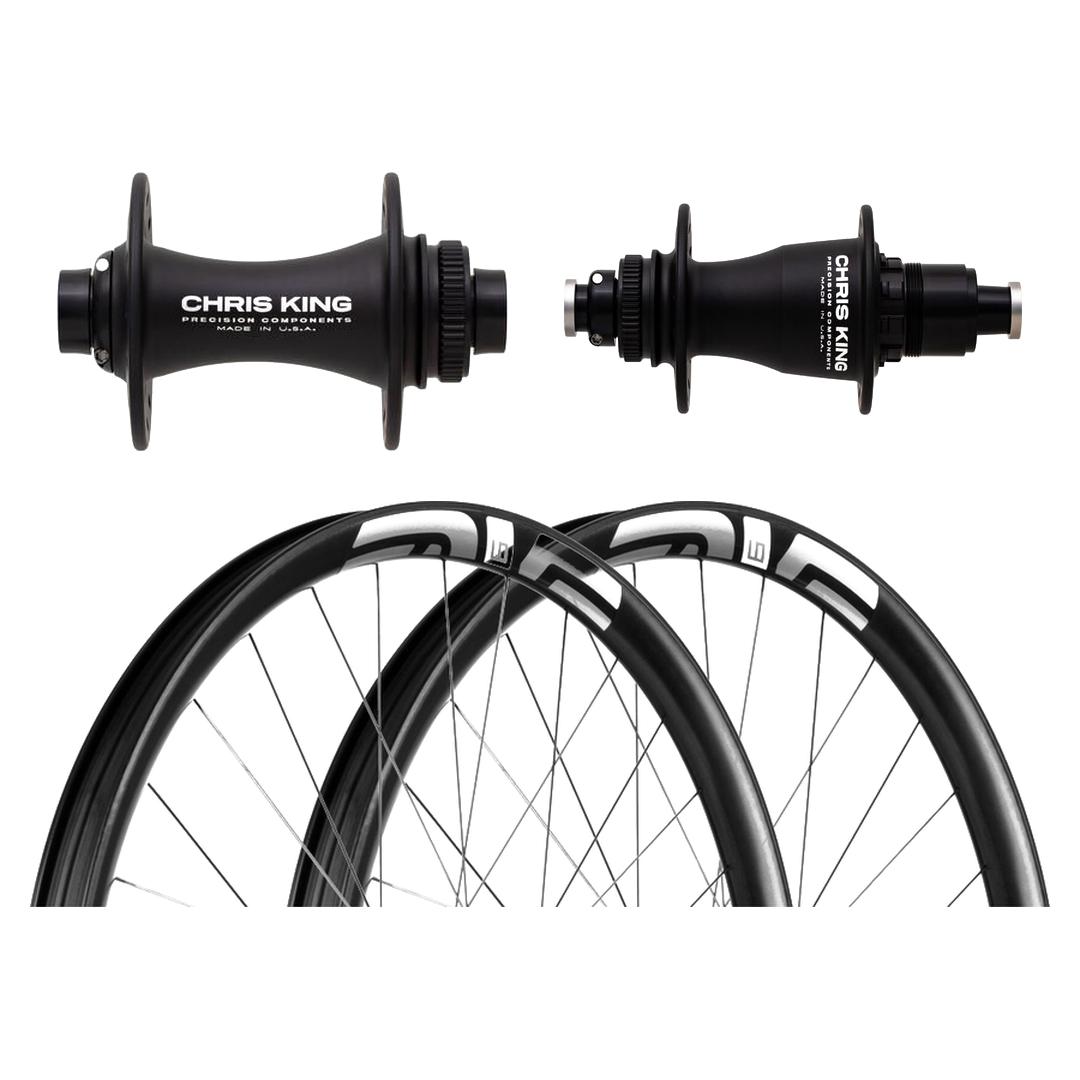

ENVE M930 Chris King hand-built wheelset

An ENVE M930 rim set laced 32-spoke to Chris King hubs, built by hand in our Marrickville workshop, tensioned, stress-relieved and trued before it leaves the bench. Our Pro wheel build and tubeless tape fitted are included and show as two free lines in your cart.

Before you order — what your bike decides

  • Rear axle — Boost 12 × 148 or Super Boost 12 × 157. Boost 12 × 148 is most modern MTBs, Super Boost 12 × 157 some Pivot and Knolly frames, 12 × 142 older frames: measure the inside of the dropouts.
  • Front axle — Boost 15 × 110 only on this wheelset: check the fork lowers.
  • Rotor mount — Centre Lock only on this wheelset: check your rotors.
  • Cassette — the freehub body follows it: Shimano 12-speed MTB is Micro Spline, SRAM Eagle is XD, Shimano 11-speed and older (and CUES LG) is HG. Offered here: Shimano HG, Shimano Micro Spline or SRAM XD.

Colour: pick front and rear separately.

Who it is for

For downhill and bike-park riding — ENVE's downhill rim, heir to a line of World Cup podiums, with the Protective Rim Strip option against flats.

The rider's questions

  • What tyres fit? ENVE recommends 2.35–2.6" tyres on the M930. The tyre's own maximum pressure applies.
  • How fast does the hub engage? 72 points of engagement — Chris King RingDrive (72 points), 5° between clicks.
  • Warranty? ENVE rims for life for the original owner (5 years for a second owner), with ENVE's crash replacement programme; Chris King hubs under the King Lifetime Warranty for the original owner; our build work is guaranteed. Any claim comes back to Tune Cycles — see the Warranty tab.
  • How long does it take? Built to order from supplier stock — we confirm the build date by email when you order.
  • Colours? Hubs in Black, Silver, Black/Punch, Gold, Jet, Matte Jade, Matte Mango, Matte Turquoise, Midnight, Navy, Red, Slate or Violet; the rims are black.

Kit includes

Options: rear axle Boost 12 × 148 (Super Boost 12 × 157) · freehub Shimano HG, Shimano Micro Spline or SRAM XD · hub colour Black, Silver, Black/Punch, Gold, Jet, Matte Jade, Matte Mango, Matte Turquoise, Midnight, Navy, Red, Slate or Violet · tubeless valves (50 mm, up to 2) · ENVE Protective Rim Strip (anti-flat, fitted in place of tape; one per wheel, up to 2).

Everything in the Wheelset box is built in. The rows under Upgrades are optional: tick what you want and the price updates. If you want us to lace a rim or hub you already own, that is a workshop job — contact us for a quote.

Sold separately (shown with this kit): tubeless sealant (Muc-Off No Puncture 140 ml), RT-CL700 203 mm Centre Lock rotor, the Shimano SM-RTAD05 adapter (runs a 6-bolt rotor on a Centre Lock hub; not with SM-RT86 / RT76 aluminium-carrier rotors), a cassette for your freehub body, tyres to suit (sizes above). Rotors: one per wheel, to match your rotor mount and your brake caliper's size range.

How we build it

Every wheel is laced by hand in Marrickville, brought up to tension evenly to the lower of the rim and hub limits, stress-relieved and trued, then checked again before it is packed. ENVE's own nylock nipples, supplied with the rims, seat in ENVE's moulded spoke holes. Tubeless tape (34 mm) is fitted to the rim; add valves and sealant and it is ready for tyres.

Tune Cycles builds and fits these wheels. If you are unsure what your frame, fork or drivetrain takes, ask us before you order.

ENVE rims carry ENVE's lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage. ENVE requires its own nipples for that warranty — they are what we build with. Chris King hubs, bearings included, carry the King Lifetime Warranty against manufacturing defects for the original purchaser (chrisking.com/pages/king-lifetime-warranty). Our build — lacing, tension and truing — carries our workmanship guarantee. Any claim comes back to Tune Cycles: bring the wheel to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.

  • ENVE M930 rims — 30 mm internal, 27 mm deep, carbon; 29"
  • Chris King hubs — 72 points of engagement, Chris King RingDrive (72 points); Centre Lock; Boost 15 × 110, Boost 12 × 148 or Super Boost 12 × 157; freehub Shimano HG, Shimano Micro Spline or SRAM XD
  • Spokes — 32 × DT Competition front, 32 × DT Competition rear; ENVE's own external nylock nipples, supplied with the rims
  • Your bike's fit from the dropdowns: axle, freehub, colour — nothing is pre-selected, choose each one
  • Hand-laced, tensioned, stress-relieved and trued in Marrickville — Pro wheel build and tubeless tape included (two free lines in your cart)
  • Editable kit: the Upgrades rows are optional and the price follows what you tick
  Front Rear
Rim ENVE M930 ENVE M930
Rim construction one-piece carbon, moulded spoke holes for ENVE's external nylock nipples one-piece carbon, moulded spoke holes for ENVE's external nylock nipples
Diameters offered 29" 29"
Internal width 30 mm 30 mm
Rim depth 27 mm 27 mm
ERD 29" 597 mm 29" 597 mm
Spoke holes 32H 32H
Hub Chris King Chris King
Axle Boost 15 × 110 Boost 12 × 148 or Super Boost 12 × 157
Rotor mount Centre Lock Centre Lock
Freehub bodies — Shimano HG, Shimano Micro Spline or SRAM XD
Engagement — 72 POE — Chris King RingDrive (72 points)
Spokes 32 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes 32 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes
Nipples ENVE's own external nylock nipples, supplied with the rims ENVE's own external nylock nipples, supplied with the rims
Tape fitted 34 mm tubeless tape (or ENVE's Protective Rim Strip, optional) 34 mm tubeless tape (or ENVE's Protective Rim Strip, optional)
Valves optional, 50 mm tubeless valves optional, 50 mm tubeless valves
Tyre width ENVE recommends 2.35–2.6" tyres on the M930 ENVE recommends 2.35–2.6" tyres on the M930
Intended use DH DH
Warranty ENVE rims for life for the original owner (5 years for a second owner), with ENVE's crash replacement programme; Chris King hubs under the King Lifetime Warranty for the original owner ENVE rims for life for the original owner (5 years for a second owner), with ENVE's crash replacement programme; Chris King hubs under the King Lifetime Warranty for the original owner
Built by Tune Cycles, Marrickville — Pro wheel build and tubeless tape included Tune Cycles, Marrickville — Pro wheel build and tubeless tape included
SKU WHL-BUILD-M930-CK
Brand ENVE
Shipping Weight 2.6000kg
Shipping Width 0.700m
Shipping Height 0.240m
Shipping Length 0.700m
