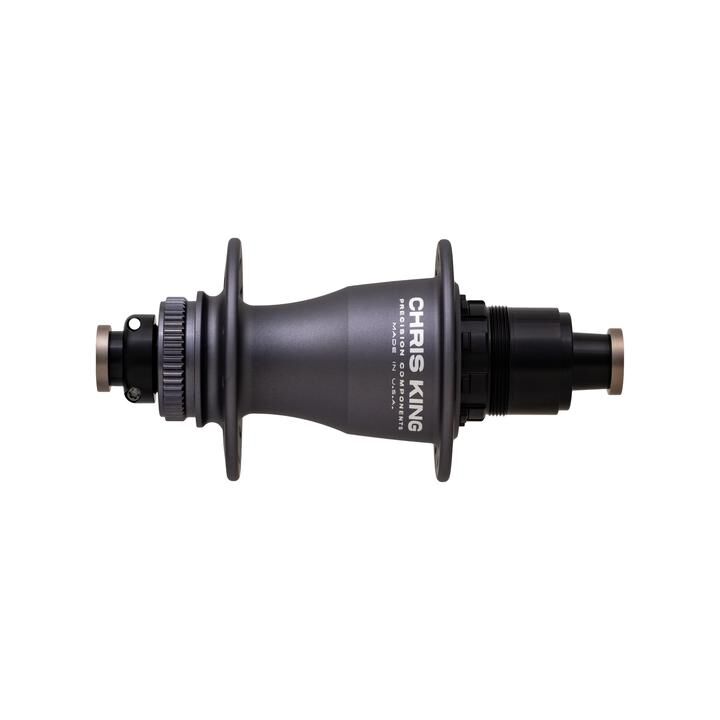

Chris King Boost Centrelock Rear Hub – Matte Slate, 32H, SRAM XD
SKU code: SCV-CKWH-48-ECH2CB3
$925.00
In Stock
Chris King's Boost Centrelock rear hub uses a one-piece solid axle and the patented 72-point RingDrive engagement system, built for 148 x 12mm Boost or 157 x 12mm SuperBoost MTB frames running Centrelock rotors.
Highlights
- Patented RingDrive system with 72 simultaneously engaged points of contact
- One-piece solid axle for a stiff rear end
- Heavy-duty bearing seals and a threaded driveshell seal ring
- Canted flanges for stronger wheel builds
- Centrelock rotor mount (Shimano lock ring required, not included)
- Available in the Chris King colours listed below
Compatibility & fit
Fits 148 x 12mm Boost or 157 x 12mm SuperBoost rear frame spacing (pick yours under Hub Dimensions — SuperBoost is not interchangeable with Boost) with a Centrelock rotor and lock ring. Freehub body is a fixed choice per SKU — Shimano Microspline, Shimano HG (8-11 speed) or SRAM XD.
Sizes & options
| Colour | Spoke count | Freehub body |
|---|---|---|
| Jet | 32H | Shimano Microspline |
| Matte Slate | 32H | SRAM XD |
| Matte Mango | 32H | SRAM XD |
| Red | 32H | SRAM XD |
| Silver | 32H | Shimano Microspline |
| Silver | 32H | SRAM XD |
| Matte Turquoise | 32H | SRAM XD |
| Black | 32H | SRAM XD |
| Black/Gold | 32H | Shimano HG |
| Silver | 32H | Shimano HG |
| Black | 32H | Shimano Microspline |
| Jet | 32H | Shimano HG |
| Gold | 32H | SRAM XD |
| Violet | 32H | SRAM XD |
| Black/Punch | 32H | SRAM XD |
| Jet | 32H | SRAM XD |
| Matte Jade | 32H | SRAM XD |
| Red | 32H | SRAM XD (157x12 SuperBoost) |
| Jet | 32H | Shimano HG (157x12 SuperBoost) |
| Black | 32H | SRAM XD (157x12 SuperBoost) |
Chris King covers this hub, including its bearings, with the King Lifetime Warranty against manufacturing defects for the lifetime of the original purchaser. It does not cover damage from crashes, misuse, alteration, improper installation or normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with Chris King's Australian distributor.
- Patented RingDrive engagement, 72 points of contact
- One-piece solid axle for a stiff rear end
- Heavy-duty bearing seals and driveshell seal ring
- Centrelock rotor mount
- Available with Shimano Microspline, Shimano HG or SRAM XD freehub
- King Lifetime Warranty
| Axle standard | 148 x 12mm Boost or 157 x 12mm SuperBoost |
|---|---|
| Rotor mount | Centrelock (Shimano lock ring required) |
| Engagement | RingDrive, 72 points |
| Freehub body | Shimano Microspline, Shimano HG or SRAM XD (SKU-dependent, see Sizes & options) |
| Spoke drilling | 32H |
| Made in | Portland, Oregon, USA |
| SKU | SCV-P-8130 |
| Brand | Chris King |
