DT Rim GR531 Gravel 28H Rimset 700C
SKU code: APO-DT-GR531-28-700C-RIMS
In Stock

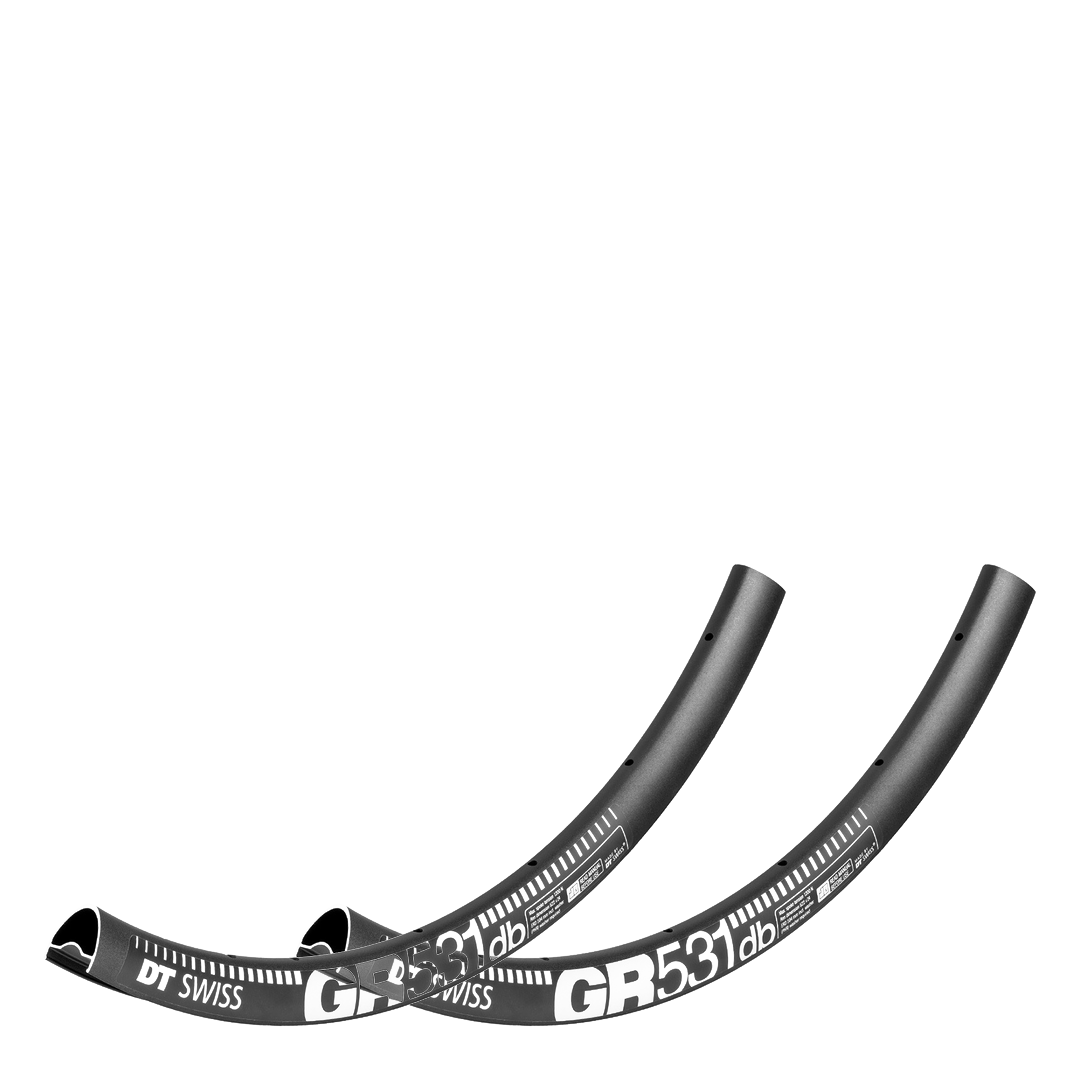

DT Swiss GR 531 rim set — 28H, 700C or 650B
Two DT Swiss GR 531 rims packed as one set: the rim pair inside our hand-built gravel wheel kits, and the same pair on its own for your own build. Both rims drilled 28H.
What is in the box
- Two DT Swiss GR 531 rims in the diameter you choose — 700C or 650B
- Each rim ships with DT Pro Lock Squorx alu silver + PHR washer — nothing else to buy for lacing
The rim
- 24 mm internal width, 28 mm external, 25 mm deep — sized for 32–50 mm tyres (DT's recommended range for a 24 mm rim)
- Welded joint, PHR spoke bed (Pro Head Reinforcement washers spread the nipple load)
- ASTM 2 — Gravel; max system weight (rider, bike and gear) 130 kg
- ERD 556 mm (650B) / 594 mm (700C) · weight 500 g (650B) / 535 g (700C) (DT's figures)
- Tubeless-ready with 27 mm tape; e-bike approved by DT (max 32 km/h / 250 W)
Warranty
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty). Any claim comes back to Tune Cycles — bring the rim to Marrickville or contact us with your order number.
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.
- DT Swiss GR 531 × 2 — 28H, 700C or 650B
- 24 mm internal, welded, PHR spoke bed, ASTM 2 (Gravel)
- Nipples and PHR washers in the box
- Tubeless-ready — 27 mm tape, 32–50 mm tyres
- Max system weight 130 kg; DT e-bike approved
- The rim pair in our hand-built gravel wheel kits — sold here on its own too
| Specification | Value |
|---|---|
| Rims | 2 × DT Swiss GR 531 |
| Diameter | 700C or 650B |
| Spoke holes | 28H |
| Internal / external width | 24 mm / 28 mm |
| Rim depth | 25 mm |
| ERD | 556 mm (650B) / 594 mm (700C) |
| Weight | 500 g (650B) / 535 g (700C) |
| Joint / spoke bed | welded / PHR |
| ASTM | 2 — Gravel |
| Max system weight | 130 kg |
| Tyre width | 32–50 mm recommended |
| Tape | 27 mm tubeless tape |
| In the box | DT Pro Lock Squorx alu silver + PHR washer |
| Warranty | DT Swiss 24 months, claims via Tune Cycles |
| SKU | APO-DT-GR531-28-RIMSET |
| Brand | DT Swiss |
