Wheels Manufacturing SOLO-SPLINE Single Speed Conversion Kit for Micro Spline Hubs – Blue
SKU code: SCV-WMCG-SOLO-SPLINE-6
$227.99
In Stock
The SOLO-SPLINE kit turns a Shimano Micro Spline hub into a dedicated single speed drivetrain, installing like a cassette so a workshop can swap a bike between gearing setups quickly.
Highlights
- Base sleeve and lock ring slide onto the Micro Spline freehub body like a cassette
- 7075 aluminium carrier and cog, lightweight 6061 aluminium spacers
- Adjustable spacers to fine-tune chainline

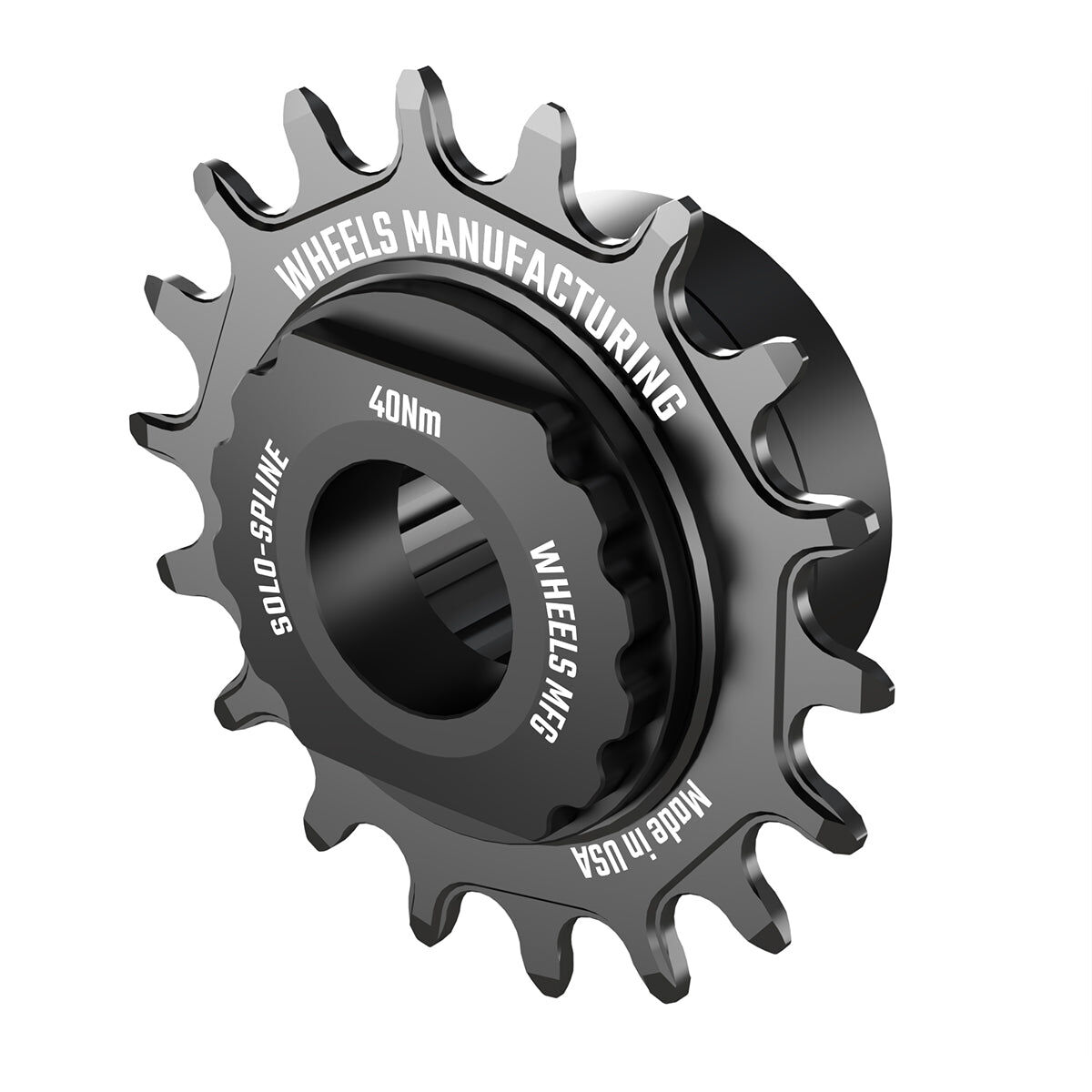

- Narrow-wide tooth pattern on the cog for chain retention
- 101g kit weight
- Ships with an 18T cog; 16T and 20T cogs sold separately
What's included
- 1x lock ring (6061 aluminium)
- 1x carrier ring (7075 aluminium)
- 1x end spacer, 1x 5mm spacer, 2x 2mm spacers, 1x 1mm spacer (6061 aluminium)
- 1x 18T cog (7075 aluminium)
Sizes & options
| Colour | SKU |
|---|---|
| Black | WMCG-SOLO-SPLINE-1 |
| Red | WMCG-SOLO-SPLINE-2 |
| Orange | WMCG-SOLO-SPLINE-3 |
| Teal | WMCG-SOLO-SPLINE-5 |
| Blue | WMCG-SOLO-SPLINE-6 |
| Purple | WMCG-SOLO-SPLINE-7 |
| Green | WMCG-SOLO-SPLINE-8 |
The colour is a finish option only — every colour is the same kit and fit.
Compatibility & fit
Fits Shimano Micro Spline compatible freehub bodies. Chain compatible with 9, 10 and 11-speed chains, plus 12-speed SRAM Eagle, SRAM T-Type flattop and KMC chains; not compatible with single speed, half-link, Shimano 12-speed HG+ or Campagnolo 13-speed chains.
Wheels Manufacturing backs this product with a 1-year warranty against manufacturing defects from the original date of purchase; normal wear and tear, spacers, O-rings and bearings, and damage from misuse or incorrect installation are not covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
- Slides onto a Micro Spline freehub like a cassette
- 7075 aluminium carrier and cog, 6061 aluminium spacers
- Adjustable spacers for chainline fine-tuning
- 101g kit weight
- Ships with an 18T cog
| Freehub fit | Shimano Micro Spline |
|---|---|
| Carrier & cog material | 7075 aluminium |
| Spacer & lock ring material | 6061 aluminium |
| Kit weight | 101g |
| Cog included | 18T (16T, 20T sold separately) |
| Chain compatibility | 9/10/11-speed; 12-speed SRAM Eagle, SRAM T-Type flattop, KMC |
| Colours | Black, Red, Orange, Teal, Blue, Purple, Green |
| SKU | SCV-P-10801 |
| Brand | Wheels Manufacturing |
