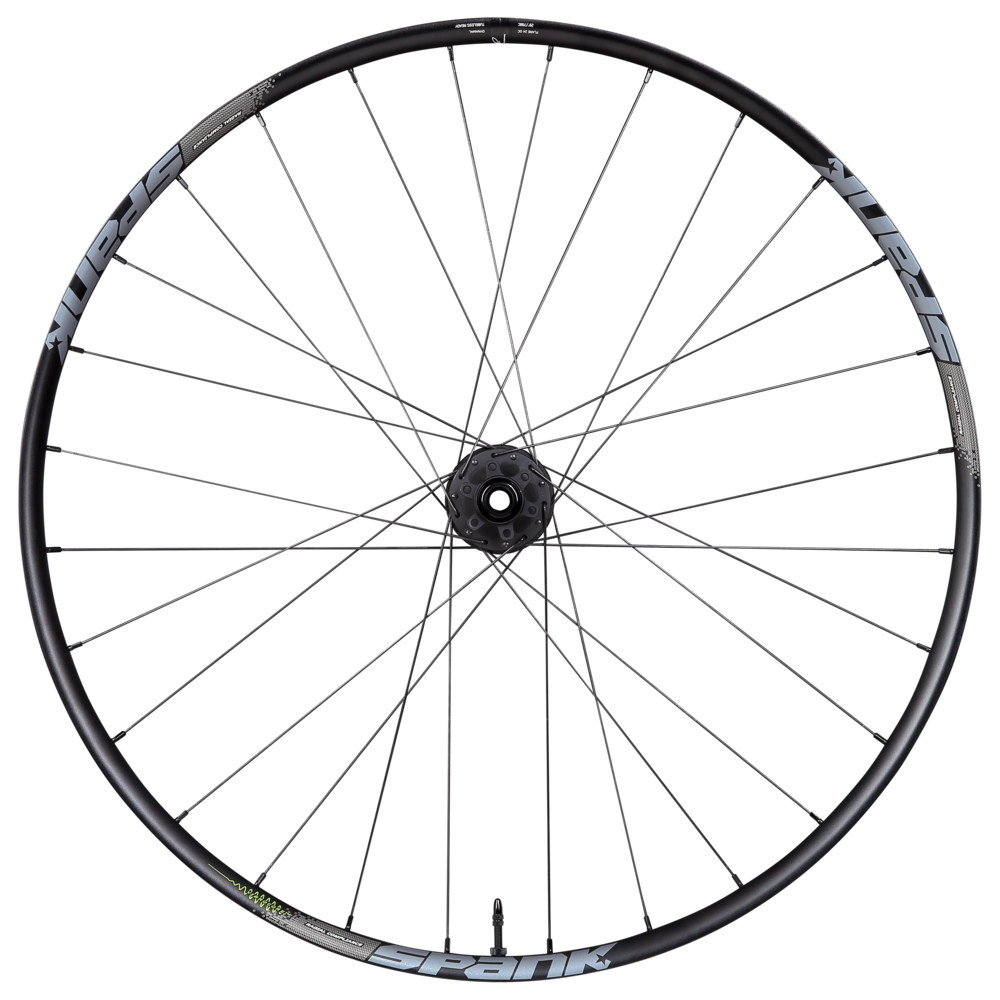

Spank Flare 24 Vibrocore Gravel Wheel – Rear 650B/27.5in 28H 142/135mm
SKU code: LNK-SPA-C090521RD0J320A
$529.95
The Spank Flare 24 pairs a 24mm-inner Vibrocore gravel rim with Spank's Hex Gravel hub, giving a wide, tubeless-ready wheel for drop-bar gravel and adventure riding.
Highlights
- 24mm inner / 28mm outer width suits 35–62c (1.5"–2.3") tyres
- Vibrocore inner well reduces vibration transmission for a smoother ride
- Hand-built 28H wheel with J-hook triple-butted spokes and 3-cross lacing
- Tubeless taped and valved, ready to set up
- Rear wheel uses Spank's off-centre (OC) rim design for better spoke tension balance
Rim and hub build
The low 16.5mm profile and 24mm inner width are tuned for gravel and adventure riding, while the Hex Gravel hub carries a 102T, 6-pawl, 3.5° engagement ratchet. The front hub runs a 12x100mm quick-release axle; the rear hub runs a 12x142mm thru-axle with a 135mm quick-release adapter included.
Compatibility & fit
The rear wheel is supplied without a freehub body — fit the Shimano HG Road or SRAM XDR freehub to match your cassette. Our workshop can fit the freehub and set the wheel up tubeless.
Sizes & options
| Option | Size | Hole count | Spacing |
|---|---|---|---|
| Front wheel | 650B / 27.5in | 28H | 100mm QR |
| Front wheel | 700C / 29in | 28H | 100mm QR |
| Rear wheel | 650B / 27.5in | 28H | 142/135mm (freehub sold separately) |
| Rear wheel | 700C / 29in | 28H | 142/135mm (freehub sold separately) |
Spank covers manufacturing defects in materials and workmanship for 2 years from the original purchase date; normal wear and tear, impact, crash damage and unauthorised repairs or modifications aren't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
- 24mm inner rim width, 16.5mm profile height
- Vibrocore inner well for reduced vibration
- Hand-built 28H with J-hook triple-butted spokes
- Tubeless taped and valved
- Front and rear available; freehub body sold separately
| Inner rim width | 24mm |
|---|---|
| Outer rim width | 28mm |
| Profile height | 16.5mm |
| Tyre fit | 35–62c (1.5"–2.3") |
| ERD | 564mm (650B), 602mm (700C) |
| Front hub | Spank Hex Gravel J-Type, 28H, 100mm QR axle |
| Rear hub | Spank Hex Gravel, 28H, 142mm thru-axle (135mm QR adapter included) |
| Rear freehub driver | Shimano HG Road or SRAM XDR (sold separately) |
| Spokes | J-hook triple-butted 2.2/1.8/2.0mm, 3-cross lacing |
| Nipples | Alloy external |
| Valve | Presta (F/V) |
| Tubeless | Taped and valved |
| Front wheel weight | 755g (650B), 788g (700C) |
| Rear wheel weight | 920g (650B XDR), 928g (650B HGR), 945g (700C XDR), 953g (700C HGR) |
| SKU | LNK-P-SPA-FLARE-WHL |
| Brand | Spank |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
