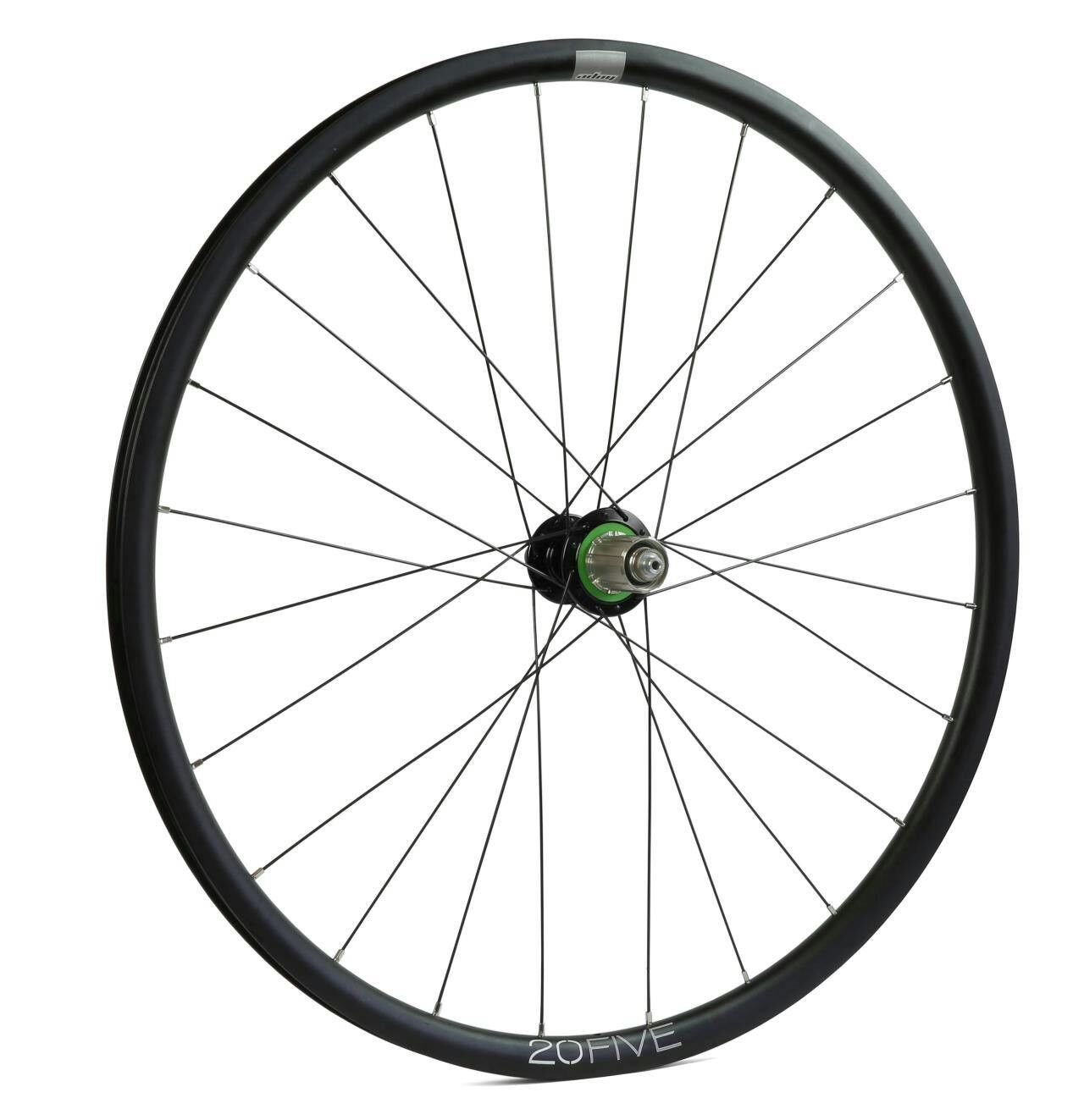

An all-season alloy wheel for disc road, gravel and cyclocross bikes. The Hope 20Five rim is laced to Hope's low-drag RS4 Centre Lock hub, 24 hole, and machine built and hand finished in Barnoldswick, England. Choose a Shimano HG or SRAM XDR freehub.

Highlights

  • 20Five rim: 20mm internal width suits larger-volume road and cross tyres
  • Welded rim join for strength on hard knocks
  • RS4 hub with a reduced-drag 2-pawl ratchet, 44-point engagement
  • Shimano HG road or SRAM XDR freehub
  • Supplied with 135mm QR and 142x12mm end caps

Rim

The 20Five is 24mm wide externally and 25mm deep with a 20mm internal width – a good match for 25–40mm tyres. It's tubeless compatible with tubeless tape and valves (not included).

Hub

Hope's RS4 road hub uses a 2-pawl ratchet with 44 points of engagement and a reduced-drag mechanism, rolling on stainless steel sealed cartridge bearings. Centre Lock rotor fitment only.

Options

Freehub BodyFitsClaimed weight
Shimano HGShimano road cassettes919g (Hope spec sheet)
SRAM XDRSRAM XDR road cassettesNot published

Compatibility & fit

Suits 700c disc frames with 135mm QR or 142x12mm rear spacing and a Centre Lock rotor. Fits Shimano road or SRAM XDR road cassettes, depending on the freehub you choose. Tyre and cassette fitting are separate workshop services – book a workshop appointment.

Hope covers its components for two years from the original date of purchase against manufacturer defects in materials and workmanship. Damage caused by misuse, or by not following the recommendations in the manual, is not covered. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • 700c Hope 20Five rear wheel
  • RS4 Centre Lock hub, 24 hole J-bend build
  • Shimano HG road or SRAM XDR freehub
  • 20mm internal / 24mm external rim, 25mm deep
  • Welded aluminium rim
  • Tubeless compatible (tape and valves required)
  • 135mm QR and 142x12mm end caps supplied
  • Machine built and hand finished in Barnoldswick, England
Wheel size700c rear
RimHope 20Five, welded aluminium
Internal / external width20mm / 24mm
Rim depth25mm
ERD594mm
HubHope RS4 Centre Lock, 24 hole, black
Engagement44 points (8°), 2 pawl
Spoke typeJ-bend
Disc mountCentre Lock only
End caps135mm QR and 142 x 12mm
TubelessCompatible (tape and valves required)
Tyre width25–40mm (Hope)
Max pressure110 psi / 7.5 bar
Freehub optionsShimano HG, SRAM XDR
SKU BSP-HOP-P-20FIVE2
Brand Hope
