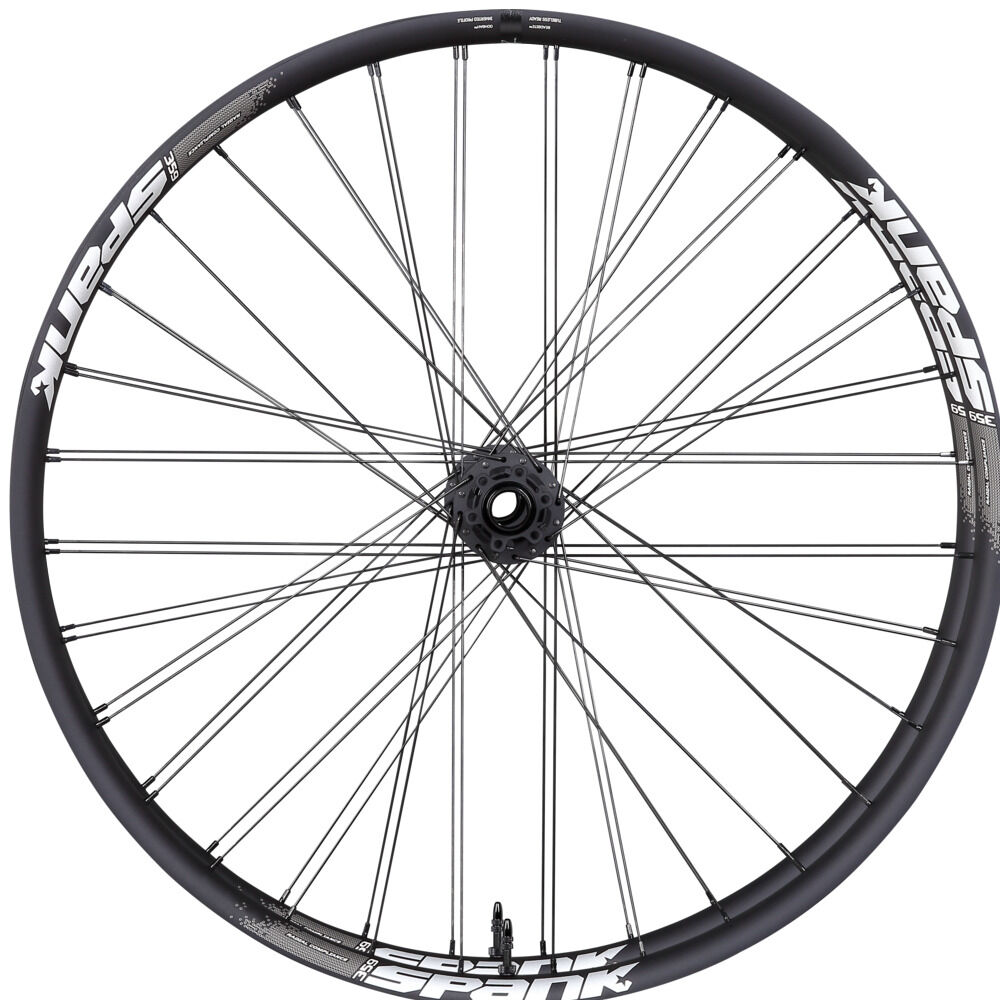

Spank Hex 359 32H MTB Wheel – Front 27.5in 32H 110mm
SKU code: LNK-SPA-C091122F20J220A
$489.95
The Spank Hex 359 brings A-Class hand-built quality to a 30.5mm-inner, 19mm-profile trail and enduro rim, paired with Spank's Hex J-Type Boost hub for predictable handling and strong tubeless security.
Highlights
- 30.5mm inner rim width suits 2.0"–2.6" tyres
- Bead Bite tubeless hooks for secure, low-pressure tubeless setup
- Hex J-Type hub with a 102T, 6-pawl, 3.5° engagement ratchet
- Hand-built 32H wheel with J-hook triple-butted spokes and 3-cross lacing
- Tubeless taped and valved, ready to set up
Rim and hub build
The rim's radial compliance improves traction over bumps and chatter, while the CNC-optimised forged alloy Hex hub body and axle keep the wheel stiff under load. Front wheels run a 110mm Boost axle; rear wheels are available in 148mm Boost or 150/157mm spacing.
Compatibility & fit
Rear wheels are supplied without a freehub body — fit the Shimano HG, Shimano Microspline or SRAM XD freehub to match your cassette. Our workshop can fit the freehub and set the wheel up tubeless.
Sizes & options
| Option | Size | Hole count | Spacing |
|---|---|---|---|
| Front wheel | 27.5in | 32H | 110mm Boost |
| Front wheel | 29in | 32H | 110mm Boost |
| Rear wheel | 27.5in | 32H | 148mm Boost (freehub sold separately) |
| Rear wheel | 29in | 32H | 148mm Boost (freehub sold separately) |
| Rear wheel | 27.5in | 32H | 150/157mm Superboost (freehub sold separately) |
Spank covers manufacturing defects in materials and workmanship for 2 years from the original purchase date; normal wear and tear, impact, crash damage and unauthorised repairs or modifications aren't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
- 30.5mm inner rim width, 19mm profile height
- Bead Bite tubeless hooks, tape and valve fitted
- Hex J-Type Boost hub, 102T 6-pawl 3.5° engagement
- Hand-built 32H with J-hook triple-butted spokes
- Front and rear available; freehub body sold separately
| Inner rim width | 30.5mm |
|---|---|
| Outer rim width | 35mm |
| Profile height | 19mm |
| Tyre fit | 2.0"–2.6" |
| ERD | 560++ (27.5in), 598++ (29in) |
| Hub | Spank Hex J-Type, Boost |
| Engagement | 102T, 6-pawl, 3.5° |
| Spokes | J-hook triple-butted 2.2/1.8/2.0mm, 3-cross lacing |
| Nipples | Brass external |
| Valve | Presta (F/V) |
| Tubeless | Taped and valved |
| Front wheel weight | 928g (27.5in), 927g (29in) |
| Rear wheel weight | approx. 1056–1074g (27.5in), 1109–1118g (29in), depending on freehub fitted |
| SKU | LNK-P-SPA-359-WHL |
| Brand | Spank |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
