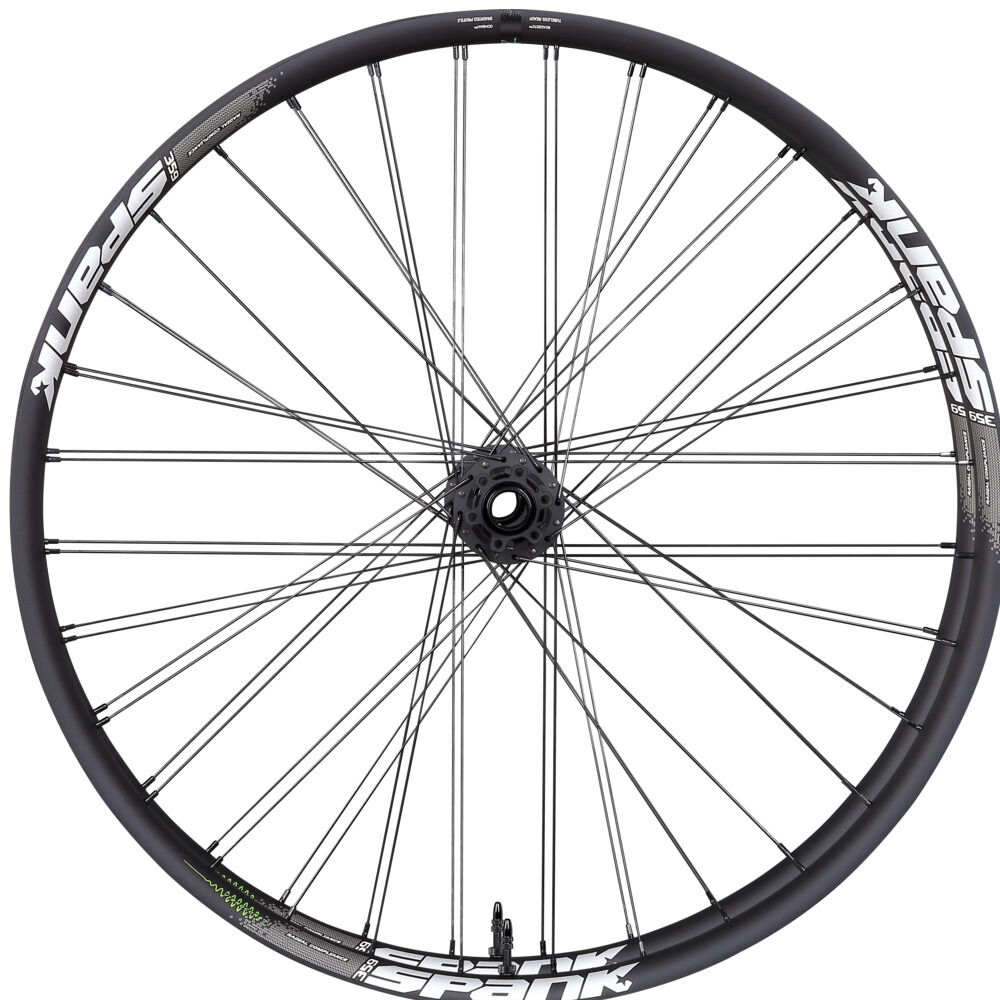

The Spank Hex 359 Vibrocore is a heavier-duty alloy wheel built for enduro and gravity riding, combining the foam-filled Vibrocore rim with Spank's Hex Drive hub. Choose the front or rear wheel in 27.5in or 29in, in the axle spacing your bike needs.

Highlights

  • 30.5mm internal rim width with a Vibrocore foam-filled core for vibration damping
  • Spank Hex Drive hub, 102-tooth 6-pawl ratchet, 3.5° engagement
  • Front wheel: 15x110mm Boost or 15x100mm standard axle, 6-bolt rotor mount
  • Rear wheel: 12x148mm Boost or 12x150/157mm Super Boost axle (adapter included), 6-bolt rotor mount, freehub body sold separately
  • J-Hook triple-butted spokes, brass external nipples, 3-cross lacing
  • Tubeless taped and valved

Built for bigger hits

Spank's 359 Vibrocore steps up to a 19mm rim profile height for gravity, enduro and bike park riding, where the 350 is built around lighter trail use.

Compatibility & fit

The front wheel fits 15x110mm Boost or 15x100mm standard forks; the rear fits 12x148mm Boost or 12x150/157mm Super Boost frames, with Spank including an adapter for the Super Boost spacing. The rear ships without a freehub body – Spank offers Shimano HG, SRAM XD and Shimano Microspline options to match your drivetrain.

Sizes & options

Wheel
Front 27.5in 32H 110mm
Front 29in 32H 110mm
Front 29in 32H 100mm
Rear 27.5in 32H 148mm (without freehub body)
Rear 29in 32H 148mm (without freehub body)
Rear 27.5in 32H 150/157mm (without freehub body)
Rear 29in 32H 150/157mm (without freehub body)
Spank's standard warranty on the Hex 359 Vibrocore wheel covers manufacturer defects in materials and workmanship for two years from the original purchase date through an authorised Spank seller; it doesn't cover wear and tear, accidents, abuse or unauthorised repairs. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
  • 30.5mm internal rim width, 19mm profile height
  • Vibrocore foam-filled core for vibration damping
  • Spank Hex Drive hub, 102T/6-pawl, 3.5° engagement
  • Front: 15x110mm Boost or 15x100mm standard
  • Rear: 12x148mm Boost or 12x150/157mm Super Boost, freehub body sold separately
  • J-Hook triple-butted spokes, 3-cross lacing
Rim inner width30.5mm
Rim outer width35mm
Profile height19mm
Tyre compatibility2.0in–2.6in
ERD (27.5in)560mm
ERD (29in)598mm
HubSpank Hex Drive, 102T, 6-pawl, 3.5° engagement
Front axle15x110mm Boost or 15x100mm standard
Rear axle12x148mm Boost or 12x150/157mm Super Boost (adapter included)
Rotor mount6-bolt
Hole count32H
SpokesJ-Hook, triple-butted 2.2/1.8/2.0mm, 3-cross
Front wheel weight (27.5in Boost)1004g
Front wheel weight (29in Boost)1052g
FreehubSold separately – Shimano HG, SRAM XD or Shimano Microspline
SKU LNK-P-SPA-359-VC-WHL
Brand Spank
Shipping Weight 1.4000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
